STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

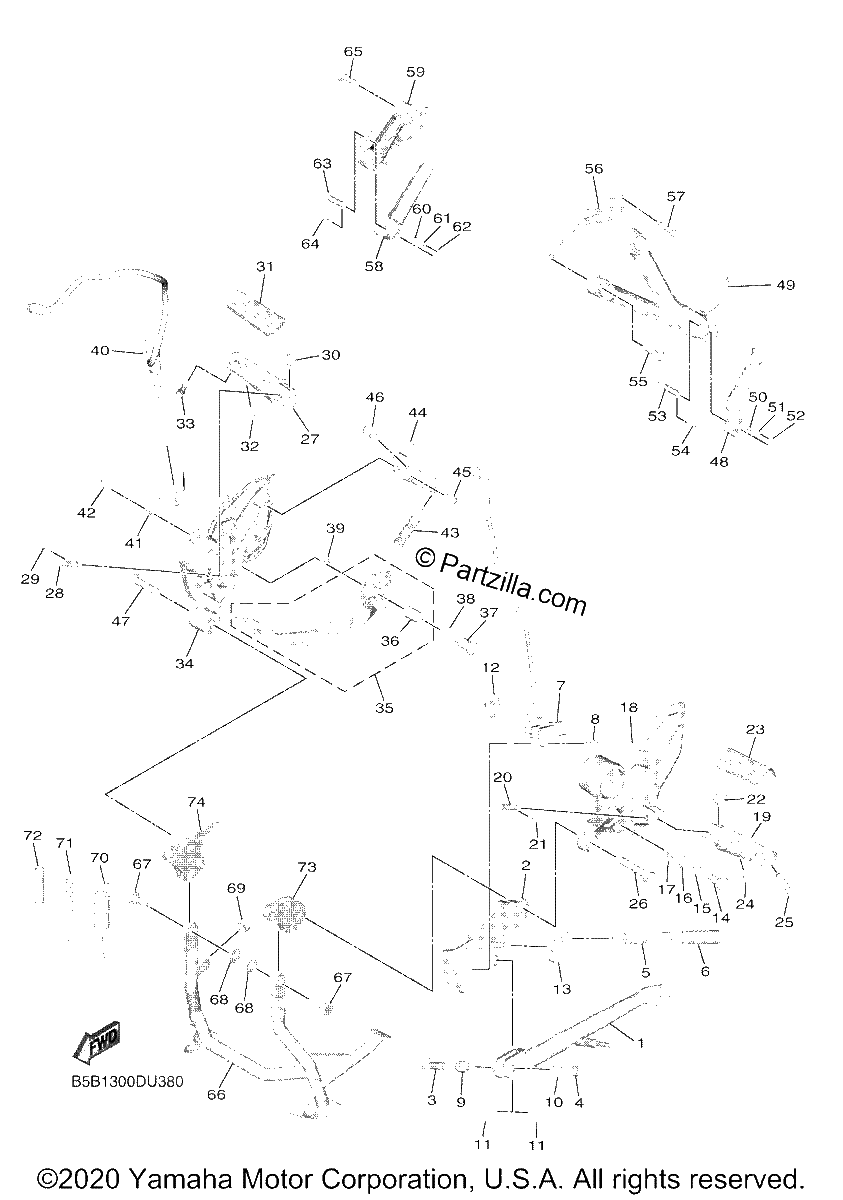

Diagrama de STAND FOOTREST

Repuestos

#1
BD5-27311-00-00
STAND, SIDE
$82.99¢41 494
1
#2
BD5-27321-00-00
BRACKET, side stand
$98.94¢49 469
1
#3
90105-10188-00
BOLT, FLANGE
$12.07¢6 038
1
#4
95617-10100-00
NUT, U
$7.35¢3 675
1
#5
2S3-27116-00-00
SPRING, MAIN STAND
$17.95¢8 975
1
#6
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#7
1RC-82566-50-00
SWITCH, SIDE STAND
$76.28¢38 138
1
#8
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#9
90387-10050-00
COLLAR
$24.00¢12 000
1
#10
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#11
90201-17018-00
WASHER, PLATE
$1.75¢875
1
#12
BD5-27323-00-00
BRACKET 1
$9.78¢4 888
1
#13
2S3-27315-00-00
LINK, SIDE STAND
$14.52¢7 262
1
#14
2S3-27217-10-00
BOLT
$15.59¢7 794
1
#15
90206-12074-00
WASHER,WAVE
$8.31¢4 156
1
#16
90201-12013-00
WASHER, PLATE
$7.52¢3 762
1
#17
90201-080H1-00
WASHER, PLATE
$4.56¢2 281
1
#18
BD5-27442-00-00
BRACKET 2
$107.52¢53 762
1
#19
4BH-27451-01-00
FOOTREST
$60.51¢30 256
1
#20
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#21
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#22
90508-183B9-00
SPRING, TORSION
$3.30¢1 650
1
#23
BD5-27413-00-00
COVER, FOOTREST
$21.69¢10 844
1
#24
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#25
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.88¢2 438
1
#26
90105-10329-00
Bolt, Flange
$8.10¢4 050
1
#27
4BH-27461-01-00
FOOTREST
$60.30¢30 150
1
#28
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#29
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#30
90508-184B0-00
SPRING, TORSION
$2.97¢1 487
1
#31
BD5-27413-00-00
COVER, FOOTREST
$21.69¢10 844
1
#32
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#33
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.88¢2 438
1
#34
BD5-27443-00-00
BRACKET 3
$122.73¢61 363
1
#35
BD5-27211-00-00
PEDAL, BRAKE
$132.61¢66 306
1
#36
90386-14171-00
BUSH
$8.09¢4 044
1
#37
4C8-27434-10-00
BOLT
$23.21¢11 606
1
#38
90206-14086-00
WASHER, WAVE
$7.35¢3 675
1
#39
90201-08103-00
WASHER, PLATE
$6.75¢3 375
1
#40
BD5-82530-00-00
STOP SWITCH ASSY
$76.65¢38 325
1
#41
BD5-2144G-00-00
STAY, STOP SWITCH
$9.49¢4 744
1
#42
90110-06398-00
BOLT, HEXAGON SOCKET HEAD
$1.54¢769
1
#43
90506-26012-00
Spring, Tension
$14.35¢7 175
1
#44
BD5-27263-00-00
BRACKET 1
$19.19¢9 594
1
#45
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#46
90464-11015-00
Clamp
$1.90¢950
1
#47
90105-10252-00
BOLT, FLANGE
$5.38¢2 688
1
#48
B5C-27431-00-00
FOOTREST, REAR 1
$16.54¢8 269
1
#49
BD5-2741L-00-00
BRACKET 4
$95.63¢47 813
1
#50
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#51
93501-04011-00
BALL
$7.46¢3 731
1
#52
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#53
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#54
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#55
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.39¢1 194
1
#56
BD5-27911-00-00
HOLDER
$16.77¢8 388
1
#57
92017-06030-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#58
B5C-27441-00-00
FOOTREST, REAR 2
$16.54¢8 269
1
#59
BD5-2742L-00-00
BRACKET 5
$86.70¢43 350
1
#60
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#61
93501-04011-00
BALL
$7.46¢3 731
1
#62
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#63
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#64
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#65
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.39¢1 194
1
#66
B5B-27111-00-00
STAND, MAIN
$208.10¢104 050
1
#67
90109-10064-00
bolt
$15.91¢7 956
1
#68
90387-10119-00
Collar
$12.79¢6 394
1
#69
B5B-27114-00-00
STOPPER, MAIN STAND
$12.35¢6 175
1
#70
2PP-27116-00-00
SPRING, MAIN STAND
$18.56¢9 281
1
#71
2PP-27116-10-00
SPRING, MAIN STAND
$10.41¢5 206
1
#72
90445-19003-00
HOSE
$6.47¢3 238
1
#73
B5B-27151-00-00
BRACKET, MAIN STAND
$124.90¢62 450
1
#74
B5B-27152-00-00
BRACKET, MAIN STAND 2
$137.64¢68 819
1
