FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

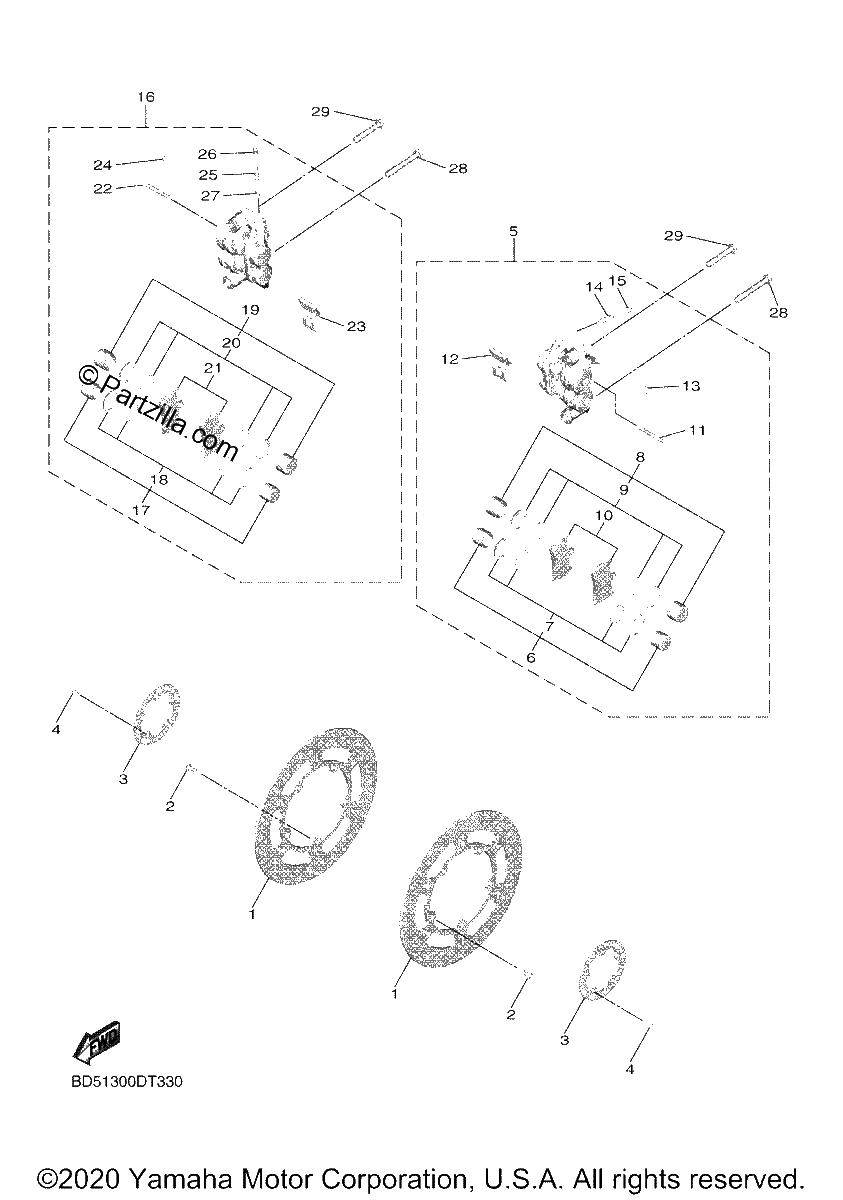

Diagrama de FRONT BRAKE CALIPER

Repuestos

#1
1RC-2581T-00-00
DISC BRAKE ASSY
$174.95¢87 475
1
#2
90109-06254-00
BOLT
$3.39¢1 694
1
#3
2PW-2517G-00-00
ROTOR, SENSOR
$83.21¢41 606
1
#4
90149-05030-00
SCREW
$2.54¢1 269
1
#5
BD5-2580T-00-00
CALIPER ASSY (LEFT)
$532.88¢266 438
1
#6
4SV-25802-00-00
PISTON ASSY, CALIPER
$180.21¢90 106
1
#7
3MA-25803-10-00
CALIPER SEAL KIT
$55.71¢27 856
1
#8
4SV-25802-10-00
PISTON ASSY, CALIPER
$232.65¢116 325
1
#9
3GM-25803-10-00
CALIPER SEAL KIT
$57.31¢28 656
1
#10
BD5-25805-00-00
Brake Pad Kit
$100.65¢50 325
1
#11
4SV-25924-00-00
PIN, PAD
$44.42¢22 213
1
#12
13S-25919-00-00
SUPPORT, PAD
$26.09¢13 044
1
#13
3GM-25925-00-00
CLIP
$11.68¢5 838
1
#14
1J3-25824-00-00
SCREW, BLEED
$5.66¢2 831
1
#15
306-25825-01-00
CAP
$10.39¢5 194
1
#16
BD5-2580U-00-00
CALIPER ASSY (RIGHT)
$540.80¢270 400
1
#17
4SV-25802-00-00
PISTON ASSY, CALIPER
$180.21¢90 106
1
#18
3MA-25803-10-00
CALIPER SEAL KIT
$55.71¢27 856
1
#19
4SV-25802-10-00
PISTON ASSY, CALIPER
$232.65¢116 325
1
#20
3GM-25803-10-00
CALIPER SEAL KIT
$57.31¢28 656
1
#21
BD5-25805-00-00
Brake Pad Kit
$100.65¢50 325
1
#22
4SV-25924-00-00
PIN, PAD
$44.42¢22 213
1
#23
13S-25919-00-00
SUPPORT, PAD
$26.09¢13 044
1
#24
3GM-25925-00-00
CLIP
$11.68¢5 838
1
#25
5VS-25824-00-00
SCREW, BLEED
$47.54¢23 769
1
#26
306-25825-01-00
CAP
$10.39¢5 194
1
#27
5VS-25975-00-00
RUBBER, BUSHING
$4.35¢2 175
1
#28
90105-10440-00
BOLT, FLANGE
$5.61¢2 806
1
#29
90105-10483-00
Bolt, Flange
$3.28¢1 638
1
