REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

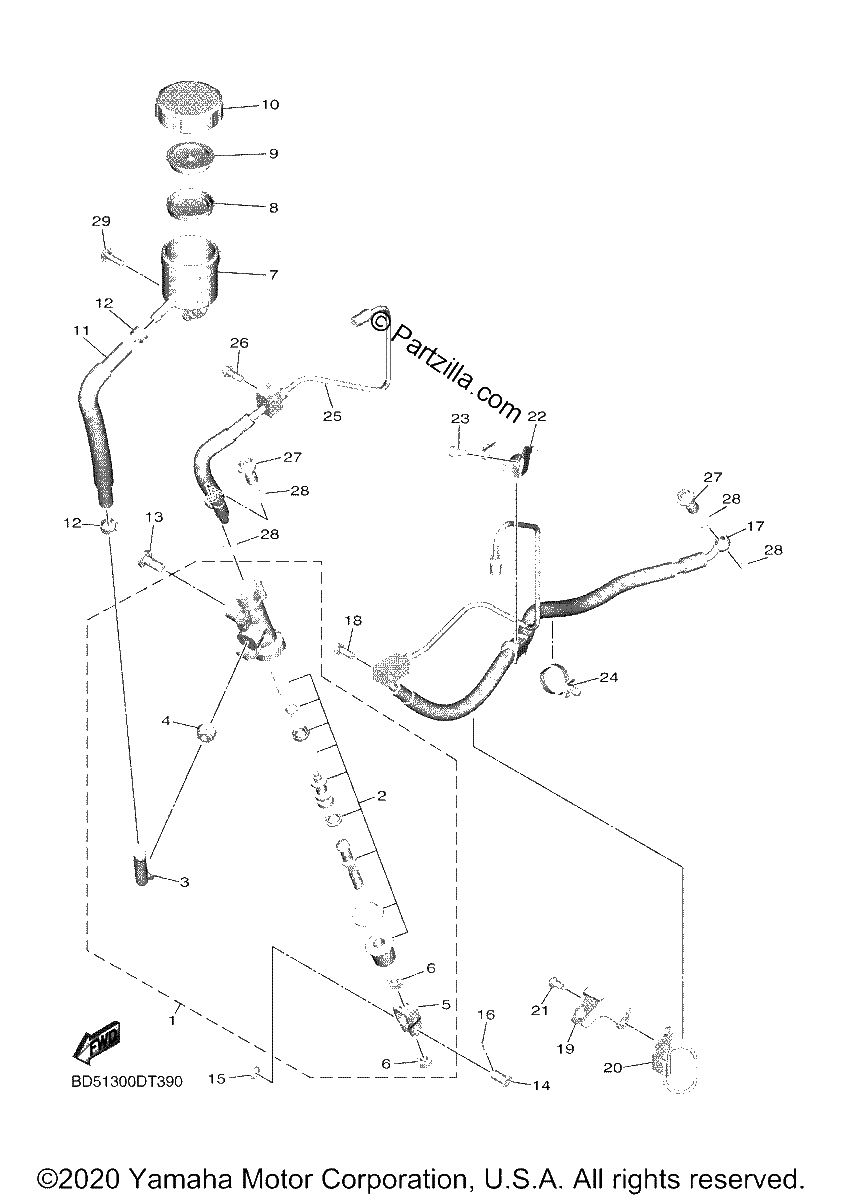

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
56P-2583V-00-00
REAR MASTER CYLINDER ASSY.
$160.45¢80 225
1
#2
56P-25808-50-00
CYLINDER KIT, MASTER
$100.86¢50 431
1
#3
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
5SL-25894-20-00
TANK, RESERVOIR
$39.35¢19 675
1
#8
5VY-25854-00-00
DIAPHRAGM, RESERVOIR
$33.59¢16 794
1
#9
5VY-25855-00-00
BUSH, DIAPHRAGM
$4.49¢2 244
1
#10
5VY-25852-00-00
CAP, RESERVOIR
$18.90¢9 450
1
#11
BD5-25895-00-00
Hose, Reservoir
$14.09¢7 044
1
#12
90467-120A3-00
CLIP
$6.99¢3 494
1
#13
90111-08029-00
BOLT (replaces 90111-08064-00)
$7.49¢3 744
1
#14
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#15
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#16
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#17
BD5-2581K-00-00
HOSE, BRAKE 5
$97.35¢48 675
1
#18
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#19
BD5-27332-00-00
Bracket
$9.04¢4 519
1
#20
BD5-27333-00-00
BRKT
$24.66¢12 331
1
#21
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#22
BD5-253N5-00-00
CLAMP 1
$29.90¢14 950
1
#23
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#24
90464-24230-00
CLAMP
$6.91¢3 456
1
#25
BD5-2581J-00-00
HOSE, BRAKE 4
$88.49¢44 244
1
#26
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#27
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#28
90430-10005-00
GASKET
$8.39¢4 194
1
#29
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
