FENDER

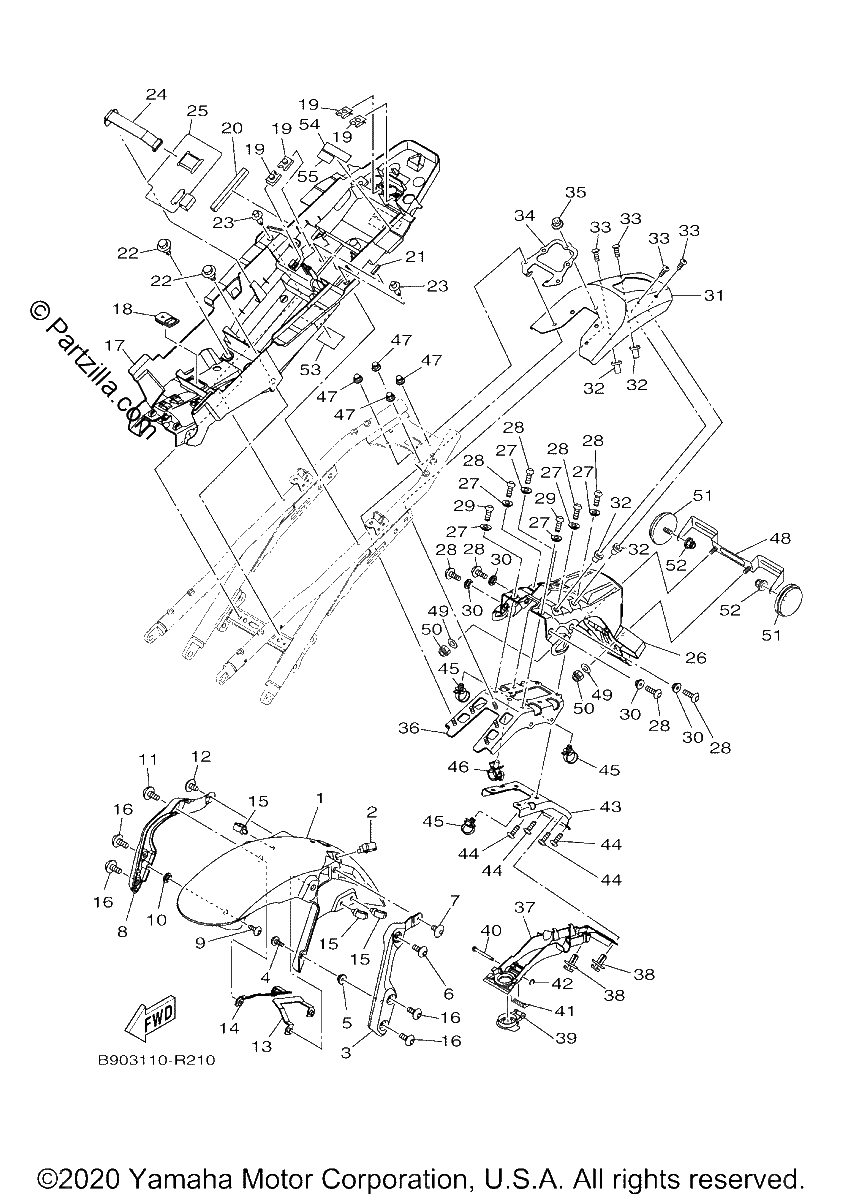

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$103.26¢51 631
#2
Clamp
$6.45¢3 225
#3
ARM 1
$71.86¢35 931
#4
BOLT, BUTTON HEAD
$3.44¢1 719
#5
COLLAR
$7.46¢3 731
#6
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#7
BOLT, HEXAGON SOCKET HEAD
$4.45¢2 225
#8
ARM 2
$94.56¢47 281
#9
BOLT, BUTTON HEAD
$3.44¢1 719
#10
COLLAR
$7.46¢3 731
#11
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#12
BOLT, HEXAGON SOCKET HEAD
$4.45¢2 225
#13
STAY, FENDER 1
$29.66¢14 831
#14
STAY, FENDER 2
$34.41¢17 206
#15
CLAMP
$8.25¢4 125
#16
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#17
BOX, BATTERY 1
$75.85¢37 925
#18
PLUG, BLIND
$7.29¢3 644
#19
NUT, SPRING
$7.26¢3 631
#20
DAMPER
$7.08¢3 538
#21
DAMPER
$3.79¢1 894
#22
BOLT
$3.24¢1 619
#23
RIVET
$4.00¢2 000
#24
BAND, BATTERY
$7.88¢3 938
#25
FLAP
$8.41¢4 206
#26
GUARD, MUD
$27.83¢13 913
#27
COLLAR
$10.91¢5 456
#28
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#29
BOLT, BUTTON HEAD
$7.41¢3 706
#30
COLLAR
$5.95¢2 975
#31
STAY 2
$385.89¢192 944
#32
NUT
$6.78¢3 388
#33
BOLT
$4.34¢2 169
#34
SPACER
$26.40¢13 200
#35
NUT, FLANGE
$0.94¢469
#36
STAY 1
$68.50¢34 250
#37
COVER, REAR FENDER 2
$14.23¢7 113
#38
RIVET,SPEC'L SHAPE
$7.13¢3 563
#39
CAP, ROTOR
$4.68¢2 338
#40
PIN
$5.38¢2 688
#41
SPRING, TORSION
$2.23¢1 113
#42
CIRCLIP
$7.95¢3 975
#43
STAY, PLATE
$34.26¢17 131
#44
SCREW, ROUND TAPPING
$7.46¢3 731
#45
CLAMP
$1.90¢950
#46
CLAMP
$3.50¢1 750
#47
NUT, CAP
$4.40¢2 200
#48
BRACKET, LICENSE
$47.46¢23 731
#49
WASHER, PLATE
$3.40¢1 700
#50
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#51
REFLECTOR, REAR 1
$30.67¢15 337
#52
NUT, FLANGE
$7.35¢3 675
#53
LABEL, TIRE
$3.61¢1 806
#54
LABEL, CAUTION
$4.94¢2 469
#55
LABEL, CAUTION
$5.32¢2 662
