CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

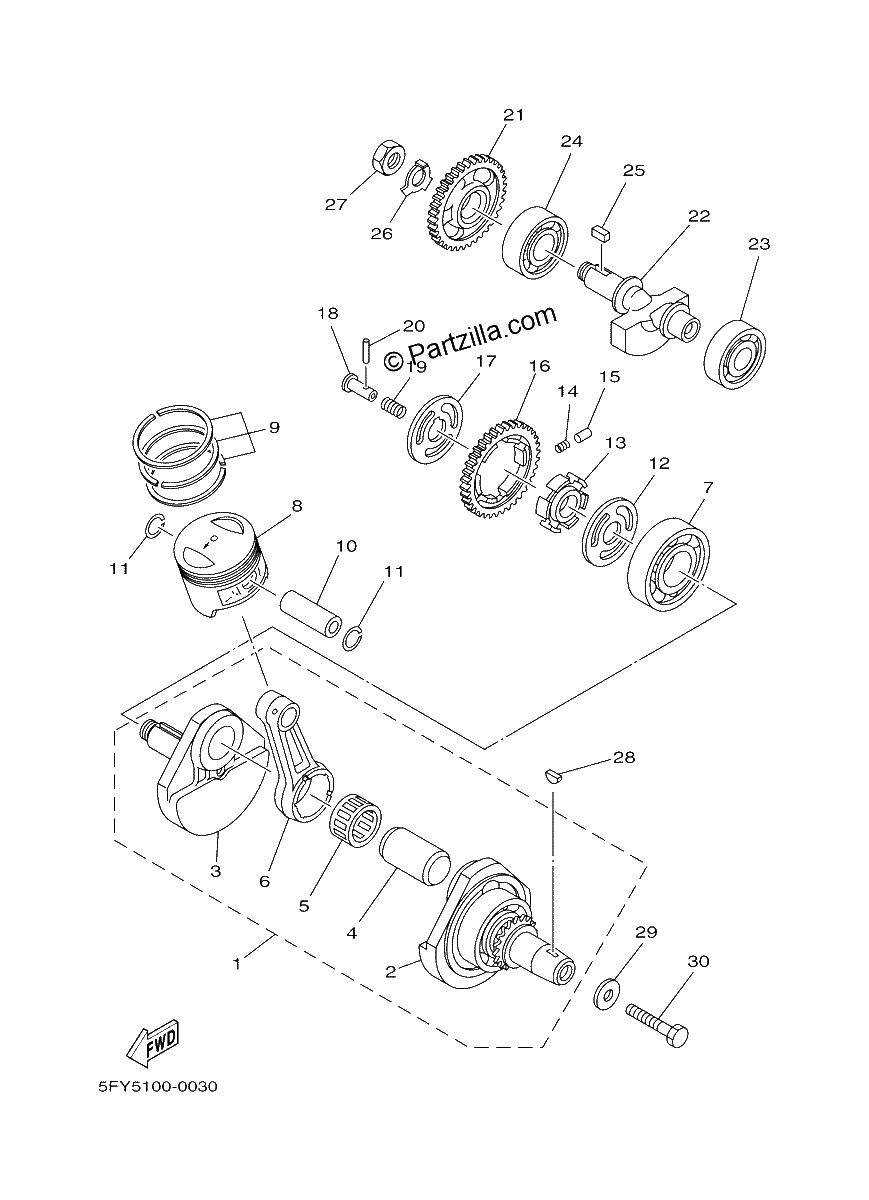

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
5H0-11400-00-00
CRANKSHAFT ASY
$528.39¢264 195
1
#2
5H0-11401-09-00
CRANK SUB ASSY 1
$274.30¢137 149
1
#3
5H0-11422-00-00
CRANK 2
$189.91¢94 955
1
#4
5H0-11681-00-00
PIN,CRANK 1
$46.67¢23 333
1
#5
93310-530J3-00
BEARING,CYL.#10
$64.95¢32 476
1
#6
15A-11651-00-00
ROD,CONNECTING
$142.34¢71 168
1
#7
93306-30611-00
BEARING
$82.21¢41 107
1
#8
36X-11638-00-00
PISTON 4TH OS
$141.36¢70 679
1
#8
36X-11631-00-A0
PISTON STD
$117.45¢58 725
1
#8
36X-11636-00-00
PISTON 2ND OS
$115.10¢57 552
1
#9
15A-11605-00-00
PSTN RG ST.50MM OS
$64.70¢32 350
1
#9
15A-11607-00-00
PSTN RG ST1.00MMOS
$68.06¢34 028
1
#9
15A-11603-00-00
PSTN RG ST (STD)
$61.44¢30 722
1
#10
15A-11633-00-00
PIN, PISTON
$31.41¢15 703
1
#11
93450-17044-00
CIRCLIP,INNER
$5.75¢2 875
1
#12
90201-201E4-00
WASHER,PLATE
$11.70¢5 848
1
#13
5H0-11496-00-00
BOSS,BUFFER
$121.29¢60 645
1
#14
90501-21133-00
SPRING,COMPRESSION
$7.95¢3 973
1
#15
93605-10090-00
PIN,DOWEL
$6.09¢3 048
1
#16
5H0-11536-00-00
GEAR,DRIVE
$126.40¢63 198
1
#17
90214-20023-00
WASHER,CLAW
$6.39¢3 197
1
#18
90240-07083-00
PIN,CLEVIS
$14.67¢7 337
1
#19
90501-07629-00
SPRING,COMPRESSION
$7.77¢3 887
1
#20
93602-13177-00
PIN,DOWEL
$2.40¢1 202
1
#21
5H0-11531-00-00
GEAR,BALANCE WT
$178.39¢89 194
1
#22
15A-11454-00-00
WEIGHT 1
$83.48¢41 739
1
#23
93306-30427-00
BEARING
$64.08¢32 039
1
#24
93306-30427-00
BEARING
$64.08¢32 039
1
#25
90282-05013-00
KEY, STRAIGHT
$8.20¢4 100
1
#26
90215-14205-00
WASHER,LOCK
$6.75¢3 375
1
#27
90170-14284-00
NUT,HEXAGON
$8.69¢4 347
1
#28
90280-05048-00
KEY, WOODRUFF
$12.91¢6 457
1
#29
90201-10508-00
WASHER, PLATE
$15.79¢7 895
1
#30
90101-10188-00
bolt
$8.75¢4 376
1
