EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

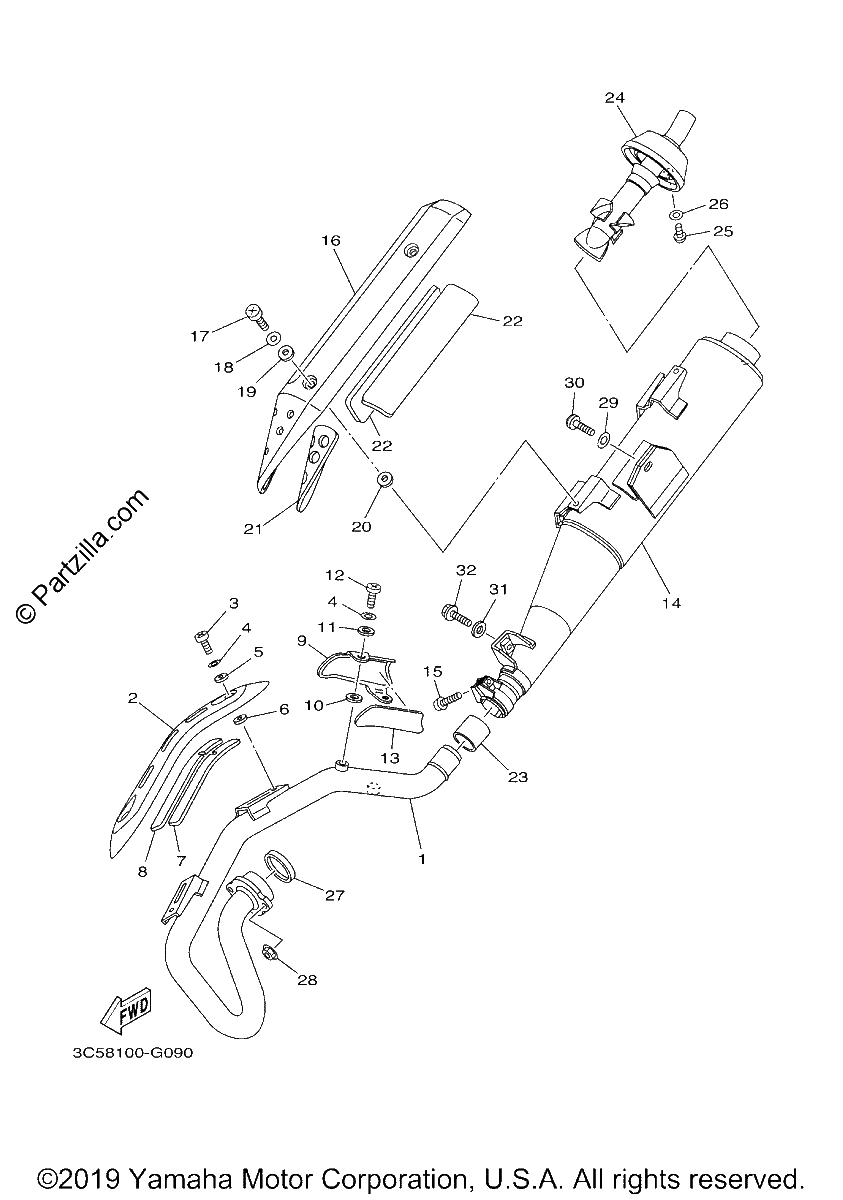

Diagrama de EXHAUST

Repuestos

#1
5XT-14611-10-00
PIPE, EXHAUST 1
$332.79¢166 394
1
#2
3C5-14628-00-00
PROTECTOR, EXHAUST PIPE
$191.36¢95 681
1
#3
98980-06012-00
SCREW, BIND
$7.34¢3 669
1
#4
90206-06090-00
WASHER, WAVE
$6.25¢3 125
1
#5
90201-05015-00
WASHER, PLATE
$7.48¢3 738
1
#6
90201-05016-00
WASHER, PLATE
$4.11¢2 056
1
#7
5XT-1465R-00-00
PLATE, PROTECTOR 1
$5.25¢2 625
1
#8
5XT-1465T-00-00
PLATE, PROTECTOR 2
$5.99¢2 994
1
#9
5XT-1479K-00-00
COVER, 3
$34.16¢17 081
1
#10
90201-05017-00
WASHER, PLATE
$7.48¢3 738
1
#11
90201-05015-00
WASHER, PLATE
$7.48¢3 738
1
#12
90154-06020-00
SCREW, BINDING
$6.42¢3 213
1
#13
5XT-1465U-00-00
PLATE, PROTECTOR 3
$6.40¢3 200
1
#14
3C5-14711-10-00
MUFFLER 1
$524.94¢262 469
1
#15
90109-085G6-00
BOLT
$2.26¢1 131
1
#16
3C5-14728-00-00
PROTECTOR, MUFFLER 2
$285.34¢142 669
1
#17
98980-06012-00
SCREW, BIND
$7.34¢3 669
1
#18
90206-06090-00
WASHER, WAVE
$6.25¢3 125
1
#19
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#20
90202-05188-00
WASHER, PLATE
$7.35¢3 675
1
#21
5XT-14738-00-00
PROTECTOR, MUFFLER 3
$18.06¢9 031
1
#22
5XT-14748-00-00
PROTECTOR, MUFFLER 4
$27.95¢13 975
1
#23
3YF-14714-00-00
GASKET, MUFFLER
$35.45¢17 725
1
#24
1RH-14752-01-00
PIPE, OUTLET
$149.36¢74 681
1
#25
98507-06010-00
SCREW, PAN HEAD
$3.21¢1 606
1
#26
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#27
3GD-14613-00-00
GASKET, EXHAUST PIPE
$14.75¢7 375
1
#28
95704-08500-00
NUT, FLANGE
$7.35¢3 675
1
#29
90201-08326-00
WASHER, PLATE
$7.34¢3 669
1
#30
90111-08020-00
BOLT
$4.41¢2 206
1
#31
90201-087A9-00
WASHER, PLATE
$4.45¢2 225
1
#32
90105-08074-00
BOLT, FLANGE
$7.56¢3 781
1
