FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

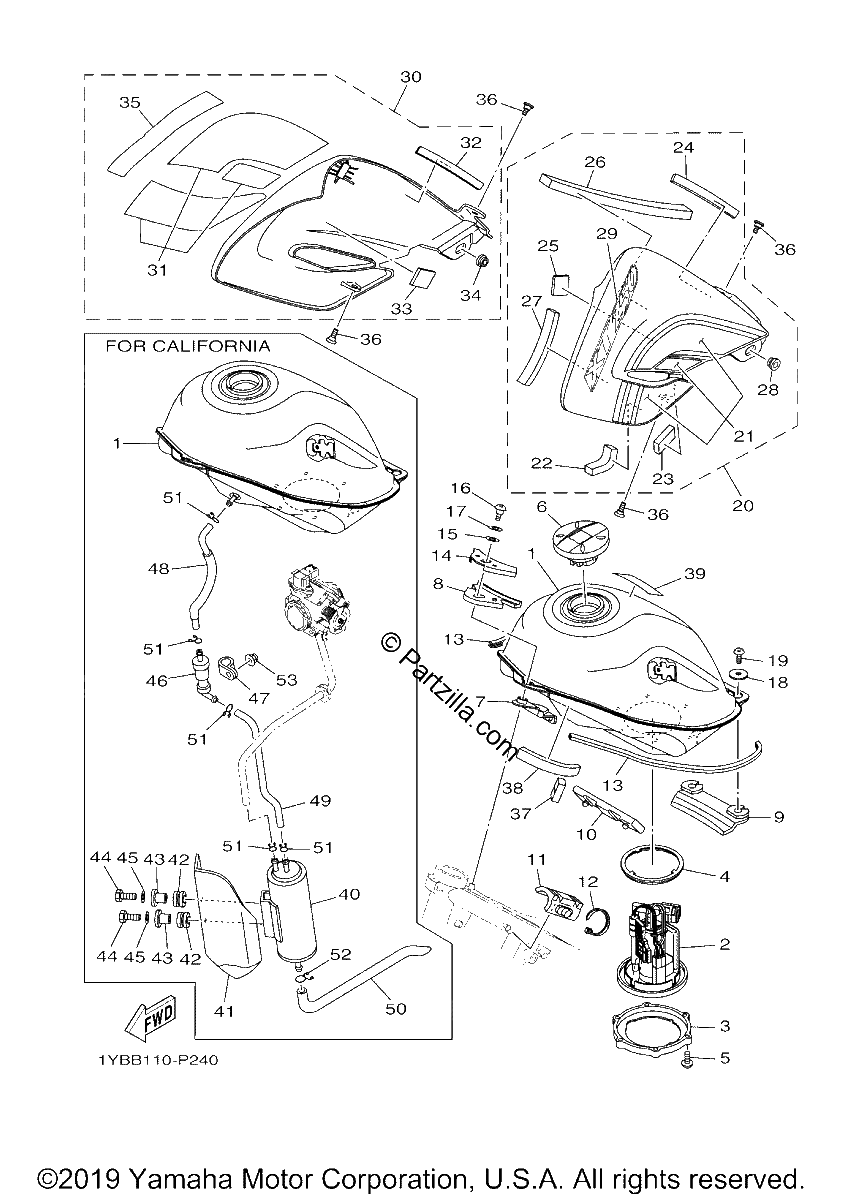

Diagrama de FUEL TANK

Repuestos

#1
3C5-24110-40-P0
FUEL TANK COMP.
$559.61¢279 807
1
#1
3C5-24110-20-P0
FUEL TANK COMP.
$559.61¢279 807
1
#2
5XT-13907-11-00
FUEL PUMP COMP.
$369.44¢184 719
1
#3
3D7-24491-00-00
Bracket, Fuel Pump
$54.43¢27 215
1
#4
1S4-24486-00-00
O-Ring
$45.47¢22 736
1
#5
92012-05016-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#6
5VK-24602-30-00
CAP ASSY
$214.13¢107 065
1
#6
5VK-24602-20-00
CAP ASSY
$193.40¢96 698
1
#7
3C5-24181-10-00
DAMPER, locating 1
$56.14¢28 071
1
#8
3C5-24183-00-00
DAMPER, LOCATING 3
$9.51¢4 755
1
#9
3C5-24182-10-00
DAMPER, locating 2
$33.48¢16 738
1
#10
3C5-24185-10-00
DAMPER, LOCATING 5
$41.17¢20 585
1
#11
3C5-24184-10-00
DAMPER, LOCATING 4
$24.99¢12 495
1
#12
1UA-82591-00-00
BAND
$4.52¢2 260
1
#13
3C5-24188-00-00
MOLD, FUEL TANK
$22.98¢11 489
1
#14
3C5-24186-00-00
WASHER, special
$18.78¢9 390
1
#15
90202-10120-00
WASHER,PLATE (replaces 90202-10165-00)
$6.45¢3 226
1
#16
90109-06265-00
bolt
$11.29¢5 647
1
#17
90202-10003-00
WASHER, plate
$7.98¢3 991
1
#18
90201-06074-00
WASHER,PLATE
$6.88¢3 439
1
#19
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#20
3C5-Y217W-8A-00
SCOOP COMP, AIR 1
$250.53¢125 264
1
#21
3C5-2137C-R0-00
. .GRAPHIC, SCOOP AIR SET 1
$51.85¢25 927
1
#22
3C5-24125-00-00
SEAL, AIR SHROUD 1
$2.74¢1 368
1
#23
3C5-24126-00-00
SEAL, AIR SHROUD 2
$1.93¢966
1
#24
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#25
3C5-2414J-00-00
DAMPER, PLATE 2
$4.30¢2 151
1
#26
3C5-2414K-00-00
DAMPER, plate 3
$5.89¢2 944
1
#27
3C5-2414N-00-00
DAMPER, PLATE 4
$4.54¢2 271
1
#28
90480-01559-00
Grommet
$5.27¢2 633
1
#29
1YB-24161-40-00
. .EMBLEM 1
$14.54¢7 268
1
#30
3C5-Y217X-8A-00
SCOOP COMP., AIR 2
$226.45¢113 223
1
#31
3C5-2137D-R0-00
. .GRAPHIC, SCOOP AIR SET 2
$87.20¢43 602
1
#32
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#33
3C5-2414J-00-00
DAMPER, PLATE 2
$4.30¢2 151
1
#34
90480-01559-00
Grommet
$5.27¢2 633
1
#35
1YB-24161-40-00
. .EMBLEM 1
$14.54¢7 268
1
#36
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#37
3C5-2414P-00-00
DAMPER, PLATE 5
$3.35¢1 673
1
#38
3C5-2416F-00-00
INSULATOR, FUEL TANK
$2.74¢1 368
1
#39
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#40
3C5-24170-00-00
CANISTER ASSY
$387.18¢193 591
1
#41
3C5-2419E-00-00
COVER, CANISTER
$110.14¢55 068
1
#42
90480-15342-00
GROMMET (56R)
$4.66¢2 329
1
#43
90387-063G3-00
COLLAR (56R)
$6.88¢3 439
1
#44
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#45
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#46
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#47
90464-15014-00
Clamp
$2.16¢1 081
1
#48
1YB-24321-01-00
PIPE 10
$29.55¢14 777
1
#49
1YB-24322-00-00
PIPE 11
$32.18¢16 089
1
#50
3C5-24324-00-00
PIPE 13
$16.62¢8 309
1
#51
90467-090A2-00
Clip
$2.74¢1 368
1
#52
90467-11106-00
Clip
$2.99¢1 495
1
#53
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
