CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

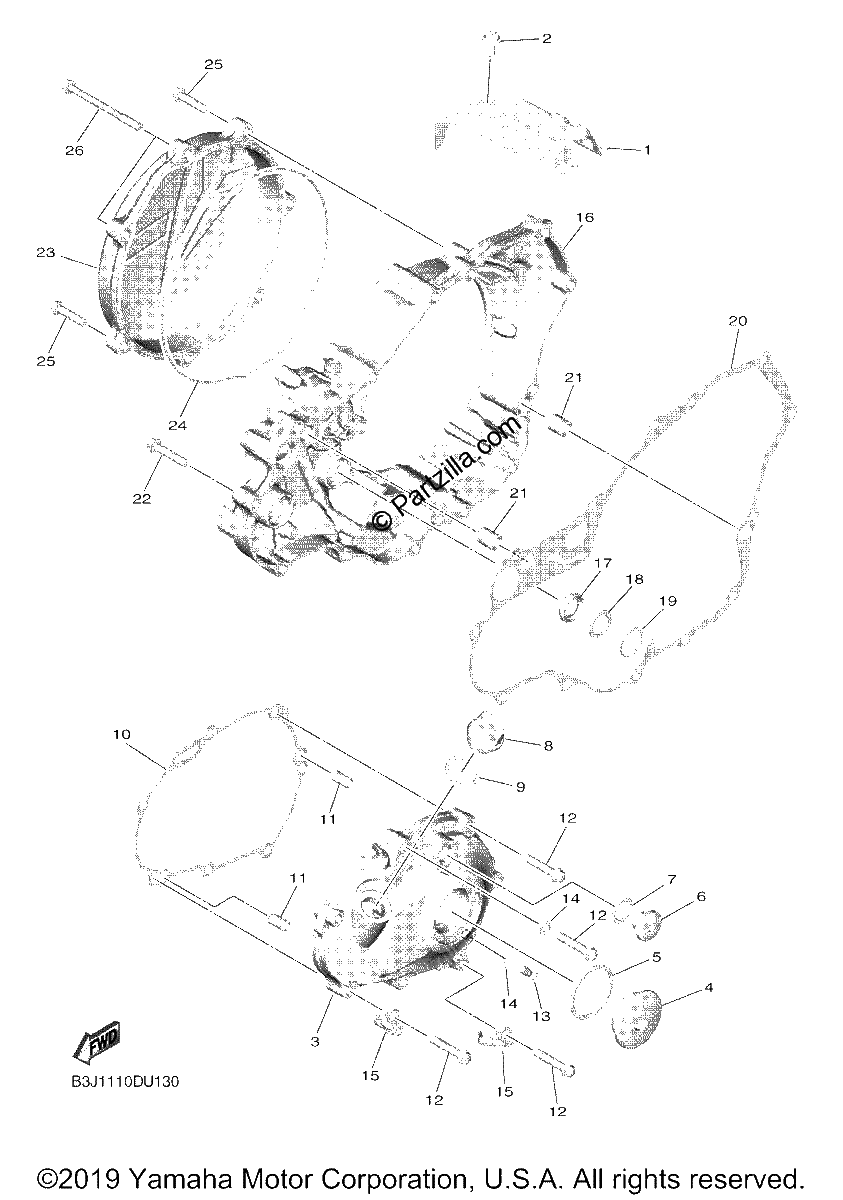

Diagrama de CRANKCASE COVER 1

Repuestos

#1
B3J-15436-00-00
COVER, STARTING MOTOR
$44.75¢22 375
1
#2
90110-06427-00
BOLT, HEXAGON SOCKET HEAD
$1.90¢950
1
#3
BR9-15411-00-00
COVER, CRANKCASE 1
$164.83¢82 413
1
#4
90340-36002-00
PLUG, STRAIGHT SCREW
$15.94¢7 969
1
#4
90340-36007-00
PLUG, STRAIGHT SCREW
$26.06¢13 031
1
#5
93210-357A3-00
O-RING
$0.59¢294
1
#6
90340-14011-00
PLUG, STRAIGHT SCREW
$23.49¢11 744
1
#6
90340-14021-00
PLUG, STRAIGHT SCREW (replaces 90340-14020-00)
$31.95¢15 975
1
#7
93210-14369-00
O-Ring
$6.91¢3 456
1
#8
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#9
93210-19123-00
O-Ring
$8.24¢4 119
1
#10
BR9-15451-00-00
GASKET, CRANKCASE COVER 1
$12.75¢6 375
1
#11
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#12
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#13
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#14
90430-06014-00
GASKET
$8.25¢4 125
1
#15
90465-08062-00
CLAMP
$4.40¢2 200
1
#16
BR9-15431-00-00
COVER, CRANKCASE 3
$208.92¢104 462
1
#17
93101-14164-00
OIL SEAL
$11.55¢5 775
1
#18
90201-15701-00
WASHER, PLATE (T=1.0)
$7.34¢3 669
1
#19
99009-22500-00
CIRCLIP
$7.35¢3 675
1
#20
BR9-15462-00-00
GASKET, CRANKCASE COVER 3
$30.47¢15 237
1
#21
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#22
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#23
33D-15415-20-00
COVER, 1
$145.74¢72 869
1
#24
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$29.36¢14 681
1
#25
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#26
95E32-06070-00
BOLT, FLANGE DEEP RECESS
$0.94¢469
1
