FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

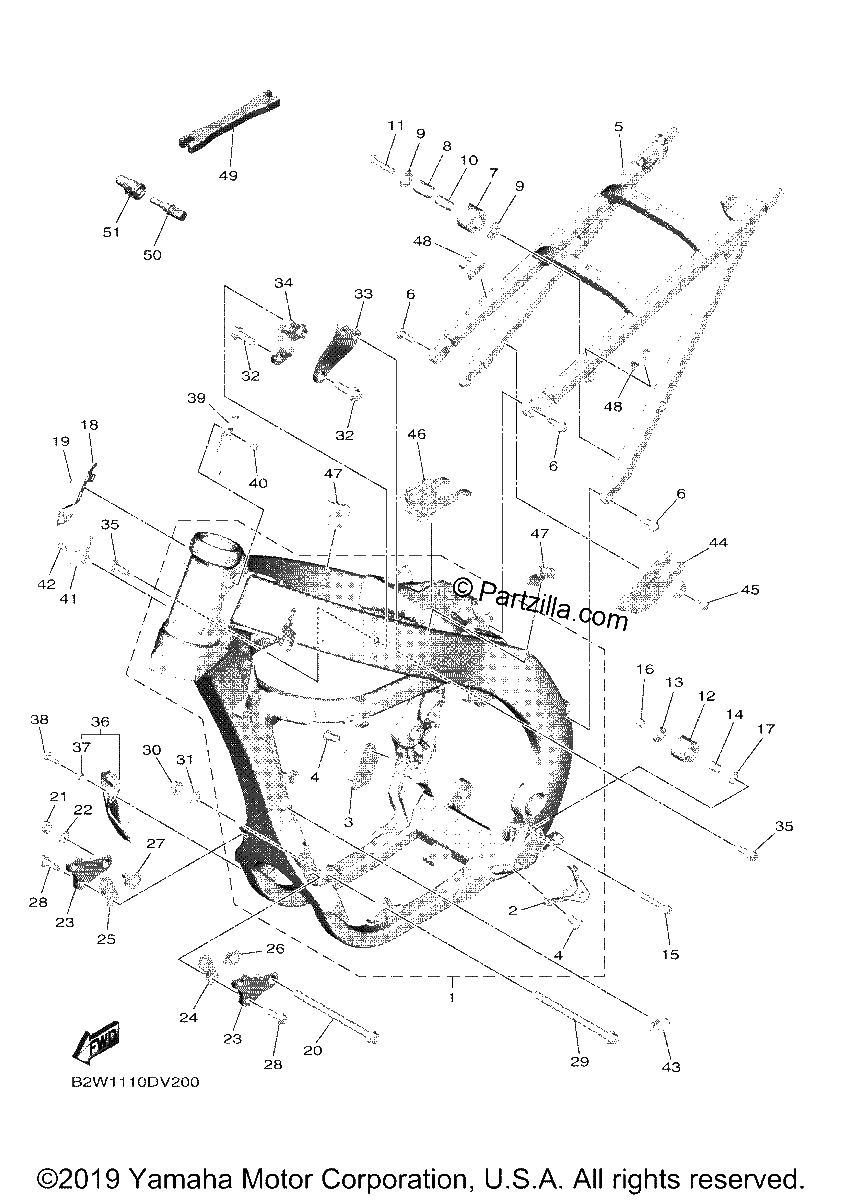

Diagrama de FRAME

Repuestos

#1
B2W-21101-00-00
FRONT FRAME COMP.
$3137.19¢1 568 594
1
#2
17D-21447-00-00
BRACKET, FOOTREST
$38.87¢19 435
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$36.54¢18 268
1
#4
90149-10033-00
SCREW
$5.97¢2 984
1
#5
BR9-21190-10-00
REAR FRAME COMP.
$531.17¢265 587
1
#6
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#7
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#8
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#9
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#10
90387-08041-00
COLLAR
$7.38¢3 691
1
#11
95E32-08040-00
BOLT, FLANGE DEEP RECESS
$0.85¢426
1
#12
BR9-22178-00-00
TENSIONER
$33.38¢16 692
1
#13
93300-60839-00
BEARING
$12.25¢6 124
1
#14
90387-086N4-00
COLLAR
$9.12¢4 560
1
#15
90105-08232-00
BOLT, FLANGE
$2.37¢1 185
1
#16
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#17
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#18
BR9-21149-00-00
Bracket, Battery Box
$11.09¢5 543
1
#19
90267-32146-00
RIVET, BLIND
$6.36¢3 180
1
#20
90105-10230-00
Bolt, Flange
$6.77¢3 387
1
#21
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#22
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#23
B2W-21417-00-00
BRACKET, FRONT LOWER 1
$36.71¢18 354
1
#24
B2W-21961-00-00
PATCH 1
$8.14¢4 071
1
#25
B2W-21962-00-00
PATCH 2
$8.14¢4 071
1
#26
B2W-21963-00-00
PATCH 3
$8.63¢4 313
1
#27
B2W-21964-00-00
PATCH 4
$8.63¢4 313
1
#28
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#29
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#30
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#31
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#32
90105-10189-00
BOLT, FLANGE
$9.18¢4 589
1
#33
B2W-21425-00-00
BRACKET, REAR UPPER 1
$20.50¢10 252
1
#34
B2W-21426-00-00
BRACKET, REAR UPPER 2
$18.97¢9 487
1
#35
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#36
BR9-21471-00-00
Protector, Engine
$11.37¢5 687
1
#37
90387-06106-00
COLLAR
$5.93¢2 967
1
#38
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#39
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$18.92¢9 459
1
#40
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#41
B29-21163-00-00
HOLDER, CLUTCH CAB
$12.88¢6 440
1
#42
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#43
90464-31002-00
CLAMP
$4.20¢2 099
1
#44
BR9-2171X-01-00
COVER, SIDE 6
$6.06¢3 030
1
#45
90269-06081-00
RIVET
$6.23¢3 117
1
#46
BR9-24181-00-00
DAMPER, locating 1
$31.75¢15 876
1
#47
BR9-24182-00-00
DAMPER, locating 2
$28.08¢14 042
1
#48
BR9-24183-10-00
DAMPER, LOCATING 3
$14.65¢7 326
1
#49
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
#50
18P-2467E-00-00
CAP
$7.23¢3 617
1
#51
18P-2464V-00-00
CASE, CAP
$5.34¢2 668
1
