CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

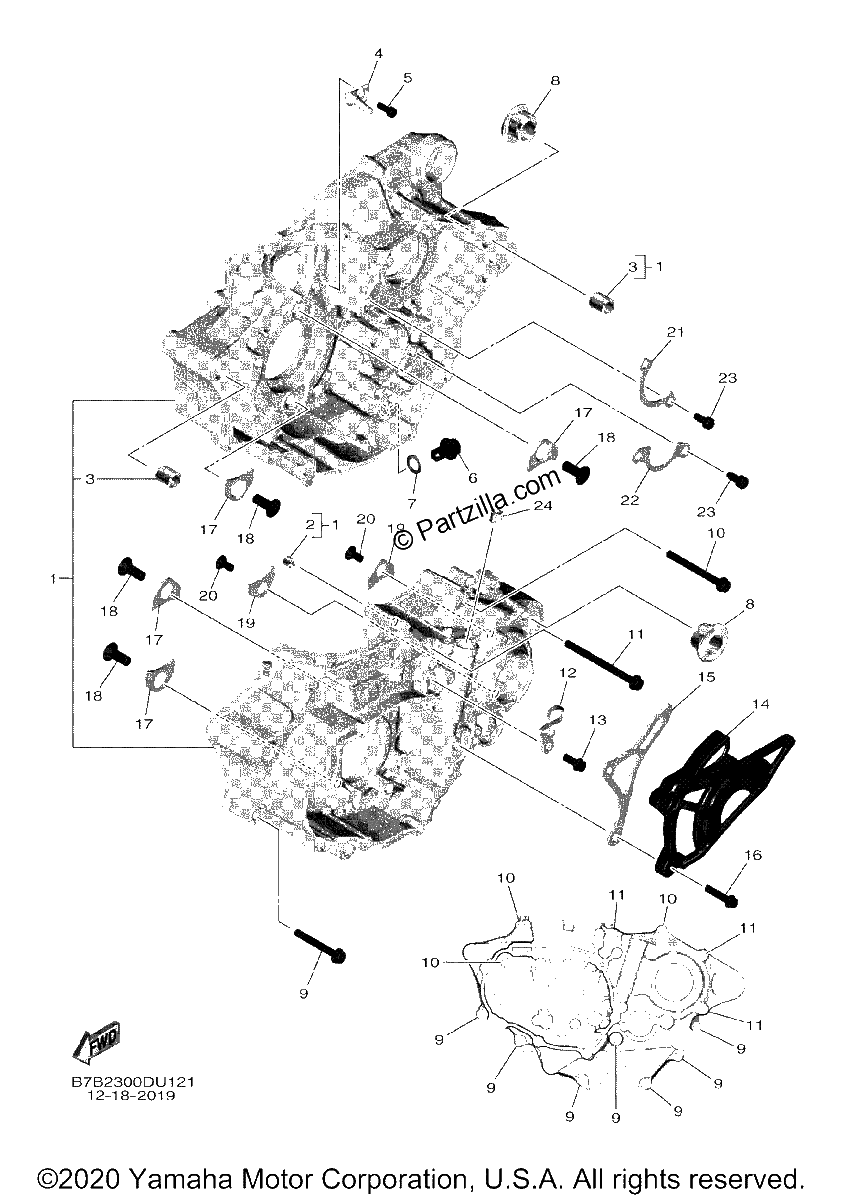

Diagrama de CRANKCASE

Repuestos

#1
B7B-15100-19-00
Crankcase Assy
$1684.38¢842 191
1
#2
B7B-15138-00-00
NOZZLE 1
$6.53¢3 266
1
#3
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#4
1SM-15155-10-00
NOZZLE 3
$28.37¢14 185
1
#5
91312-05012-00
BOLT (replaces 90110-05032-00)
$2.78¢1 392
1
#6
95E32-10016-00
BOLT, FLANGE DEEP RECESS
$1.45¢724
1
#7
90430-10188-00
Gasket
$6.77¢3 387
1
#8
90387-17018-00
Collar
$20.73¢10 367
1
#9
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#10
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.75¢1 374
1
#11
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.44¢1 719
1
#12
1SL-15441-00-00
HOLDER, CLUTCH CABLE
$11.18¢5 589
1
#13
90105-06100-00
BOLT, FLANGE (replaces 90105-06099-00)
$6.11¢3 053
1
#14
1SL-15421-00-00
COVER, CRANKCASE 2
$15.65¢7 826
1
#15
1SL-17466-00-00
Guide, Chain
$16.08¢8 038
1
#16
90105-06189-00
Bolt, Flange
$6.75¢3 375
1
#17
18P-15383-00-00
PLATE, BEARING COVER
$7.38¢3 691
1
#18
90151-08008-00
SCREW, COUNTERSUNK (replaces 90151-08007-00)
$2.02¢1 012
1
#19
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#20
90151-06052-00
SCREW, COUNTERSUNK (replaces 90149-06074-00)
$6.99¢3 496
1
#21
B7B-15388-00-00
PLATE, BEARING COVER
$8.39¢4 198
1
#22
1SL-18562-00-00
PLATE, STOPPER 2
$6.50¢3 249
1
#23
91317-06012-00
BOLT
$6.75¢3 375
1
#24
93317-106B4-00
BEARING
$6.92¢3 461
1
#25
B7B-W0002-00-00
GASKET KIT 2
$43.49¢21 746
1
