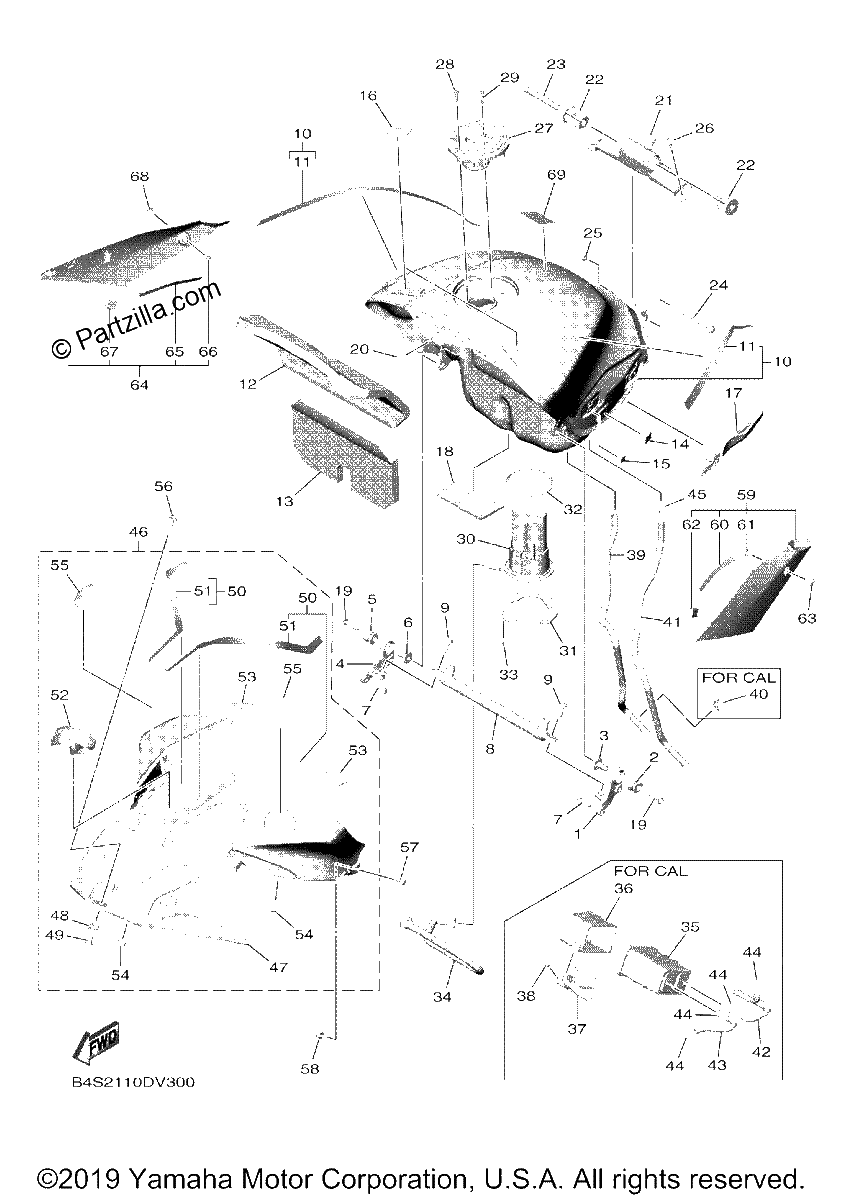

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BRACKET, FUEL TANK 1
$25.63¢12 817
#2
GROMMET
$3.48¢1 742
#3
COLLAR
$6.82¢3 410
#4
BRACKET, FUEL TANK 2
$22.56¢11 282
#5
GROMMET
$3.48¢1 742
#6
COLLAR
$6.82¢3 410
#7
BOLT
$2.24¢1 121
#8
CROSS BAR
$238.60¢119 301
#9
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#10
FUEL TANK COMP.
$1704.29¢852 144
#11
. .GRAPHIC SET
$36.04¢18 021
#12
DAMPER, PLATE 1
$8.66¢4 330
#13
DAMPER, PLATE 2
$5.01¢2 507
#14
PAD, SEAT
$2.82¢1 409
#15
DAMPER, SIDE COVER
$7.04¢3 519
#16
HOOK, SIDE COVER 1
$7.38¢3 691
#17
PROTECTOR, FUEL TANK
$4.94¢2 472
#18
SEAL
$6.90¢3 450
#19
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#20
NUT, SPRING
$0.46¢230
#21
BRACKET, TANK FITTING
$39.03¢19 515
#22
DAMPER, LOCATING 3
$7.04¢3 519
#23
COLLAR
$4.77¢2 386
#24
BOLT, FLANGE
$3.13¢1 564
#25
NUT, FLANGE
$2.24¢1 121
#26
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#27
CAP ASSY
$254.97¢127 483
#28
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#29
BOLT
$5.39¢2 697
#30
FUEL PUMP COMP. (replaces 2CR-13907-00-00)
$453.93¢226 964
#31
BRACKET, FUEL PUMP
$22.59¢11 293
#32
O-RING
$26.89¢13 443
#33
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
#34
PIPE, FUEL 1
$51.81¢25 904
#35
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
#36
DAMPER, LOCATING 2 | FOR CALIFORNIA
$32.46¢16 232
#37
BRACKET, CANISTOR | FOR CALIFORNIA
$32.50¢16 250
#38
SCREW | FOR CALIFORNIA
$7.04¢3 519
#39
PIPE 2
$17.79¢8 895
#40
GROMMET | FOR CALIFORNIA
$1.36¢678
#41
PIPE 3
$10.42¢5 210
#42
PIPE 4
$21.52¢10 758
#43
PIPE 5
$9.98¢4 991
#44
Clip
$2.74¢1 368
#45
Clip
$2.74¢1 368
#46
TOP COVER ASSY.
$1204.04¢602 019
#47
COVER, TOP
$184.44¢92 218
#48
GROMMET
$6.83¢3 415
#49
COLLAR
$7.64¢3 818
#50
. .COVER, TANK ASSY
$601.44¢300 719
#51
. . ..GRAPHIC SET 1
$53.37¢26 686
#52
. .EMBLEM
$175.71¢87 854
#53
HOOK, SIDE COVER 1
$10.70¢5 348
#54
Clamp
$3.51¢1 754
#55
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
#56
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#57
SCREW, BIND
$1.32¢661
#58
NUT
$6.23¢3 117
#59
TANK SIDE COVER ASSY 1
$101.48¢50 738
#60
DAMPER, PLATE
$1.20¢598
#61
COLLAR
$5.51¢2 754
#62
PAD, SEAT
$2.82¢1 409
#63
BOLT,HEX. SOCKET BUTTON
$1.23¢615
#64
TANK SIDE COVER ASSY 2
$101.48¢50 738
#65
DAMPER, PLATE
$1.20¢598
#66
COLLAR
$5.51¢2 754
#67
PAD, SEAT
$2.82¢1 409
#68
BOLT,HEX. SOCKET BUTTON
$1.23¢615
#69
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
