STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

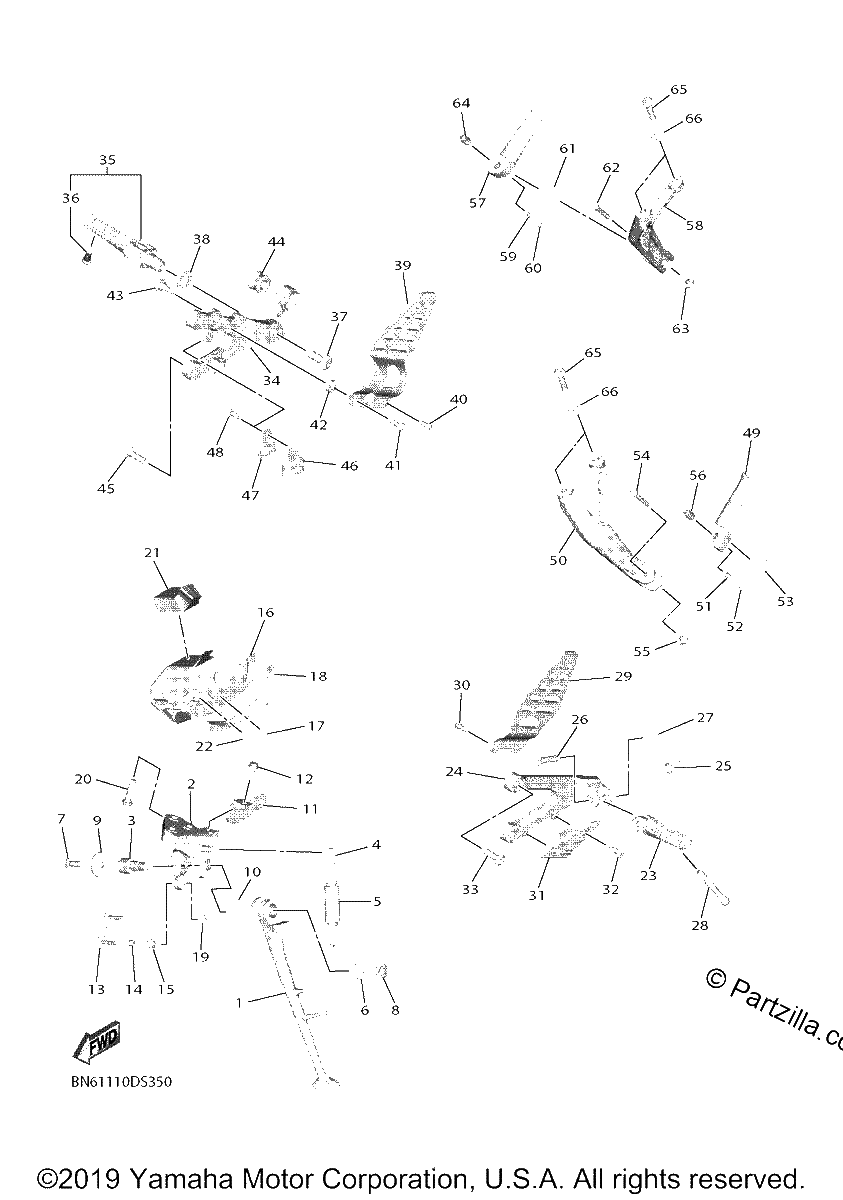

Diagrama de STAND FOOTREST

Repuestos

#1
2C0-27311-10-00
STAND, SIDE
$331.61¢165 807
1
#2
2C0-27321-10-00
BRACKET, SIDE STAND
$291.32¢145 659
1
#3
2C0-27351-00-00
GUIDE, SIDE STAND
$60.89¢30 446
1
#4
90506-18008-00
SPRING, TENSION
$14.52¢7 262
1
#5
90445-19002-00
HOSE (L60)
$5.61¢2 806
1
#6
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#7
90101-08662-00
BOLT
$6.99¢3 496
1
#8
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#9
90201-08050-00
WASHER, PLATE
$5.37¢2 685
1
#10
90201-146F9-00
WASHER, PLATE
$5.47¢2 737
1
#11
13S-2836F-00-00
BRACKET 3
$23.57¢11 788
1
#12
90105-06020-00
BOLT, FLANGE
$2.44¢1 219
1
#13
BN6-27263-00-00
BRACKET 1
$11.15¢5 577
1
#14
90387-05025-00
COLLAR
$5.66¢2 829
1
#15
90480-11006-00
GROMMET
$3.22¢1 610
1
#16
BN6-27453-00-00
COVER 1
$46.30¢23 149
1
#17
2C0-27414-00-00
DAMPER, FOOTREST
$7.23¢3 617
1
#18
90520-10031-00
DAMPER, PLATE
$1.41¢707
1
#19
90185-05009-00
NUT, U FLANGE
$7.51¢3 755
1
#20
90111-08065-00
BOLT, BUTTON HEAD
$6.20¢3 099
1
#21
2C0-28425-00-00
DAMPER 3
$5.66¢2 829
1
#22
2C0-21485-00-00
DAMPER, RUBBER 1
$6.99¢3 496
1
#23
1KB-27451-00-00
FOOTREST
$75.68¢37 841
1
#24
2C0-27442-10-00
BRACKET 2
$111.57¢55 787
1
#25
90508-18134-00
SPRING, TORSION
$6.76¢3 381
1
#26
90240-08084-00
PIN
$4.28¢2 139
1
#27
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#28
90109-08233-00
BOLT
$5.82¢2 909
1
#29
2C0-27445-10-00
PLATE 1
$61.29¢30 647
1
#30
90149-06233-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#31
2C0-27491-00-00
PROTECTOR
$7.34¢3 669
1
#32
90269-06008-00
RIVET
$8.10¢4 048
1
#33
90109-085G6-00
BOLT
$2.08¢1 041
1
#34
2C0-27443-10-00
BRACKET 3
$149.63¢74 813
1
#35
BN6-27420-00-00
FRONT FOOTREST ASSY
$103.53¢51 767
1
#36
90109-086F8-00
BOLT
$5.65¢2 823
1
#37
90109-103A9-00
BOLT,HEX. SOCKET BUT
$7.58¢3 789
1
#38
90214-13002-00
WASHER, CLAW
$6.88¢3 439
1
#39
13S-27446-10-00
PLATE 2
$83.34¢41 670
1
#40
90149-06233-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#41
90111-06067-00
BOLT
$5.96¢2 978
1
#42
90387-06215-00
COLLAR
$4.58¢2 289
1
#43
90109-066F0-00
BOLT
$6.99¢3 496
1
#44
2C0-14747-00-00
DAMPER, MUFFLER
$7.68¢3 841
1
#45
90109-085G6-00
BOLT
$2.08¢1 041
1
#46
2C0-2116K-00-00
BRACKET 8
$8.07¢4 036
1
#47
2C0-2116L-00-00
BRACKET 9
$4.23¢2 116
1
#48
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#49
5JJ-27431-10-00
FOOTREST, REAR 1
$78.27¢39 134
1
#50
2CR-2741L-00-00
BRACKET 4
$69.20¢34 598
1
#51
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#52
93501-04011-00
BALL
$6.87¢3 433
1
#53
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#54
91312-06035-00
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.60¢1 299
1
#55
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#56
90387-06697-00
Collar
$14.60¢7 302
1
#57
5JJ-27441-10-00
FOOTREST, REAR 2
$69.56¢34 782
1
#58
2CR-2742L-00-00
BRACKET 5
$63.53¢31 763
1
#59
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#60
93501-04011-00
BALL
$6.87¢3 433
1
#61
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#62
91312-06035-00
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.60¢1 299
1
#63
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#64
90387-06697-00
Collar
$14.60¢7 302
1
#65
90111-08066-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#66
13S-27417-00-00
WASHER, FOOTREST
$11.17¢5 583
1
