CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

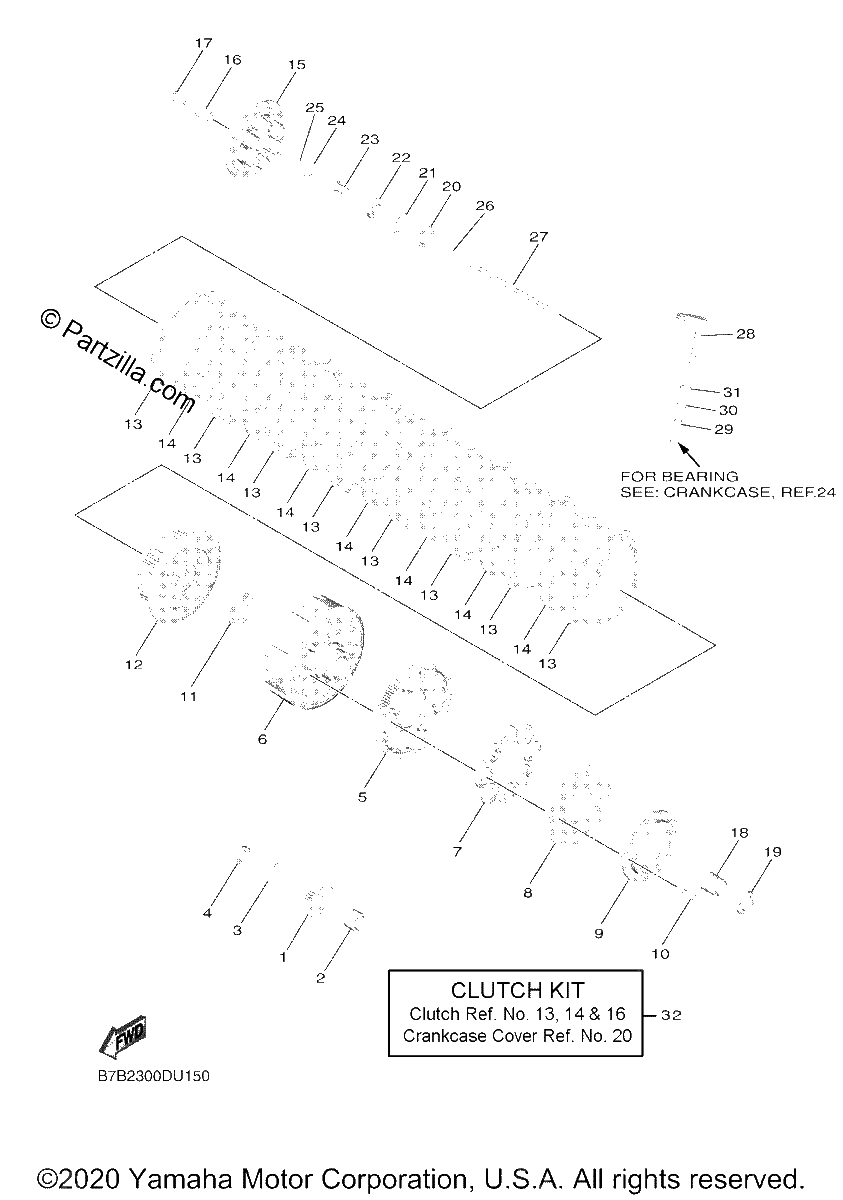

Diagrama de CLUTCH

Repuestos

#1
B7B-16111-00-00
GEAR, PRIMARY DRIVE
$60.98¢30 492
1
#2
90387-19009-00
Collar
$11.22¢5 612
1
#3
90208-16019-00
WASHER, CONICAL SPRING
$6.75¢3 375
1
#4
90170-16010-00
NUT (replaces 90170-16009-00)
$12.51¢6 256
1
#5
B7B-16151-00-00
Gear, Primary Driven
$228.00¢113 999
1
#6
B7B-16310-00-00
CLUTCH HOUSING ASSY
$237.21¢118 605
1
#7
5XC-16165-00-00
ABSORBER
$8.79¢4 393
1
#8
B7B-16158-00-00
Plate, Side
$16.74¢8 372
1
#9
B7B-15570-00-00
Starter Clutch Assy
$299.24¢149 621
1
#10
90149-06161-00
SCREW
$7.14¢3 571
1
#11
5XD-16154-00-00
PLATE, THRUST 1
$14.34¢7 170
1
#12
B7B-16371-00-00
BOSS, CLUTCH
$140.28¢70 139
1
#13
B7B-16321-00-00
Plate, Friction
$20.00¢9 999
1
#14
B7B-16325-00-00
PLATE, CLUTCH 2
$7.44¢3 720
1
#15
B7B-16351-00-00
PLATE, PRESSURE 1
$74.77¢37 387
1
#16
90501-230A7-00
Spring, Compression
$4.43¢2 214
1
#17
90159-06061-00
SCREW, WITH WASHER
$2.54¢1 271
1
#18
B7B-16181-00-00
SPACER 1
$32.36¢16 180
1
#19
90387-25038-00
Collar
$17.23¢8 614
1
#20
90201-20030-00
WASHER, PLATE
$6.73¢3 364
1
#21
90208-20001-00
WASHER, CONICAL SPRING
$16.09¢8 044
1
#22
90179-20007-00
NUT
$13.93¢6 963
1
#23
BR9-16356-00-00
ROD, PUSH 1
$78.51¢39 255
1
#24
93340-21209-00
BEARING, TRUST
$16.02¢8 010
1
#25
93440-10085-00
CIRCLIP
$6.75¢3 375
1
#26
93511-32027-00
BALL
$6.75¢3 375
1
#27
B7B-16357-00-00
ROD, PUSH 2
$33.43¢16 715
1
#28
B7B-16381-00-00
PUSH LEVER COMP.
$71.06¢35 529
1
#29
93317-11096-00
BEARING
$21.90¢10 948
1
#30
93102-10008-00
Oil Seal
$5.09¢2 547
1
#31
99009-18500-00
Circlip
$0.63¢316
1
#32
B7B-W001G-00-00
Clutch Plate Kit
$150.51¢75 256
1
