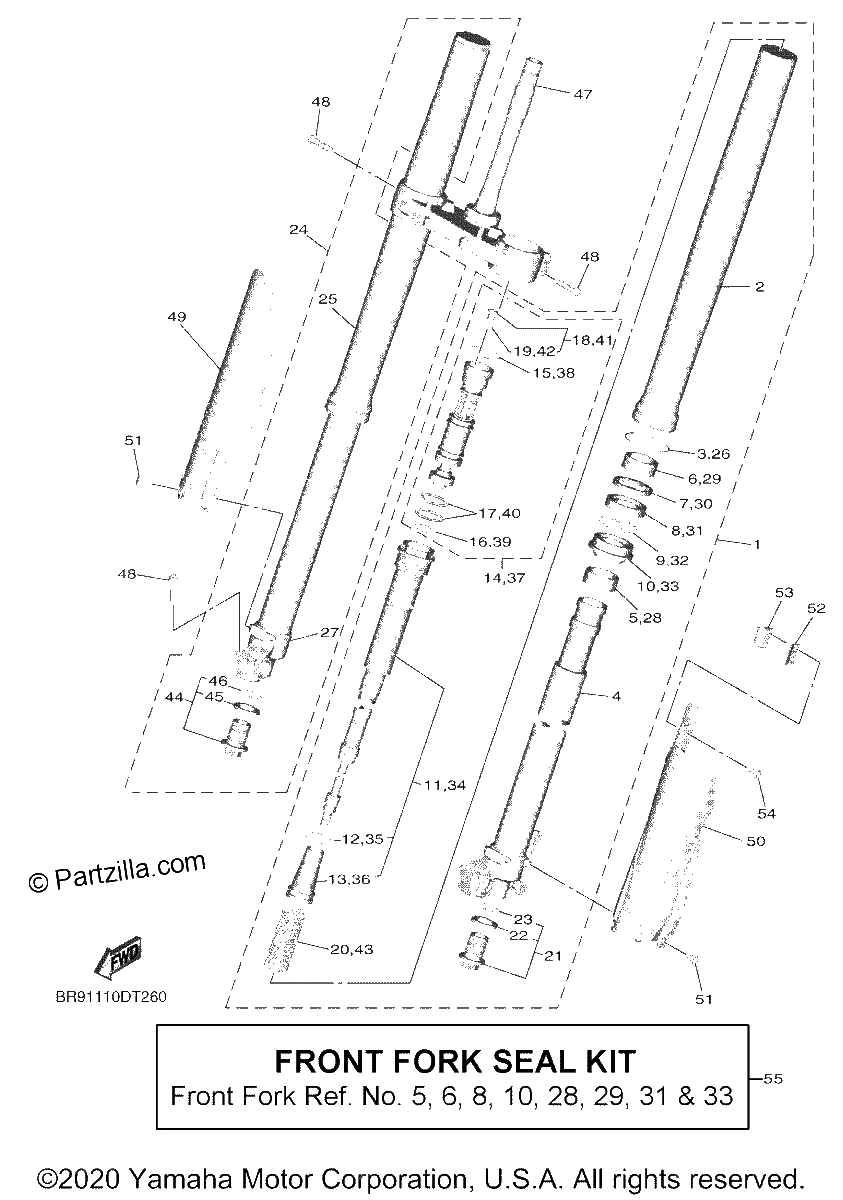

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1383.74¢691 869
#2
TUBE, OUTER
$893.74¢446 869
#3
RING, SNAP
$4.97¢2 488
#4
INNER TUBE COMP.2
$473.94¢236 969
#5
PISTON, FRONT FORK
$24.64¢12 319
#6
METAL, SLIDE 1
$25.02¢12 513
#7
WASHER, OIL SEAL
$12.61¢6 306
#8
Oil Seal
$23.64¢11 819
#9
RING, SNAP
$7.65¢3 825
#10
SEAL, DUST
$22.95¢11 475
#11
CYLINDER COMP., front fork
$722.49¢361 244
#12
O-RING
$3.81¢1 906
#13
SEAT, SPRING UPPER
$60.51¢30 256
#14
VALVE COMP.
$351.57¢175 788
#15
O-RING
$3.26¢1 631
#16
O-RING
$7.08¢3 538
#17
GASKET
$8.85¢4 425
#18
AIR VALVE COMP.
$23.89¢11 944
#19
O-RING
$3.26¢1 631
#20
SPRING, FRONT FORK (K=4.7)
$138.24¢69 119
#21
BOLT, CAP
$82.40¢41 200
#22
GASKET
$11.34¢5 669
#23
GASKET
$4.63¢2 313
#24
FRONT FORK ASSY (R.H)
$1442.49¢721 244
#25
TUBE, OUTER
$893.74¢446 869
#26
RING, SNAP
$4.97¢2 488
#27
INNER TUBE COMP.1
$473.94¢236 969
#28
PISTON, FRONT FORK
$24.64¢12 319
#29
METAL, SLIDE 1
$25.02¢12 513
#30
WASHER, OIL SEAL
$12.61¢6 306
#31
Oil Seal
$23.64¢11 819
#32
RING, SNAP
$7.65¢3 825
#33
SEAL, DUST
$22.95¢11 475
#34
CYLINDER COMP., front fork
$722.49¢361 244
#35
O-RING
$3.81¢1 906
#36
SEAT, SPRING UPPER
$60.51¢30 256
#37
VALVE COMP.
$351.57¢175 788
#38
O-RING
$3.26¢1 631
#39
O-RING
$7.08¢3 538
#40
GASKET
$8.85¢4 425
#41
AIR VALVE COMP.
$23.89¢11 944
#42
O-RING
$3.26¢1 631
#43
SPRING, FRONT FORK (K=4.7)
$138.24¢69 119
#44
BOLT, CAP
$82.40¢41 200
#45
GASKET
$11.34¢5 669
#46
GASKET
$4.63¢2 313
#47
UNDER BRACKET COMP.
$589.99¢294 994
#48
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
#49
PROTECTOR 2
$16.54¢8 269
#50
PROTECTOR 1
$16.54¢8 269
#51
BOLT
$3.93¢1 963
#52
CLAMP
$19.71¢9 856
#53
CLAMP
$26.99¢13 494
#54
BOLT, FLANGE
$5.05¢2 525
#55
FORK SEALS KIT
$69.03¢34 513
