ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

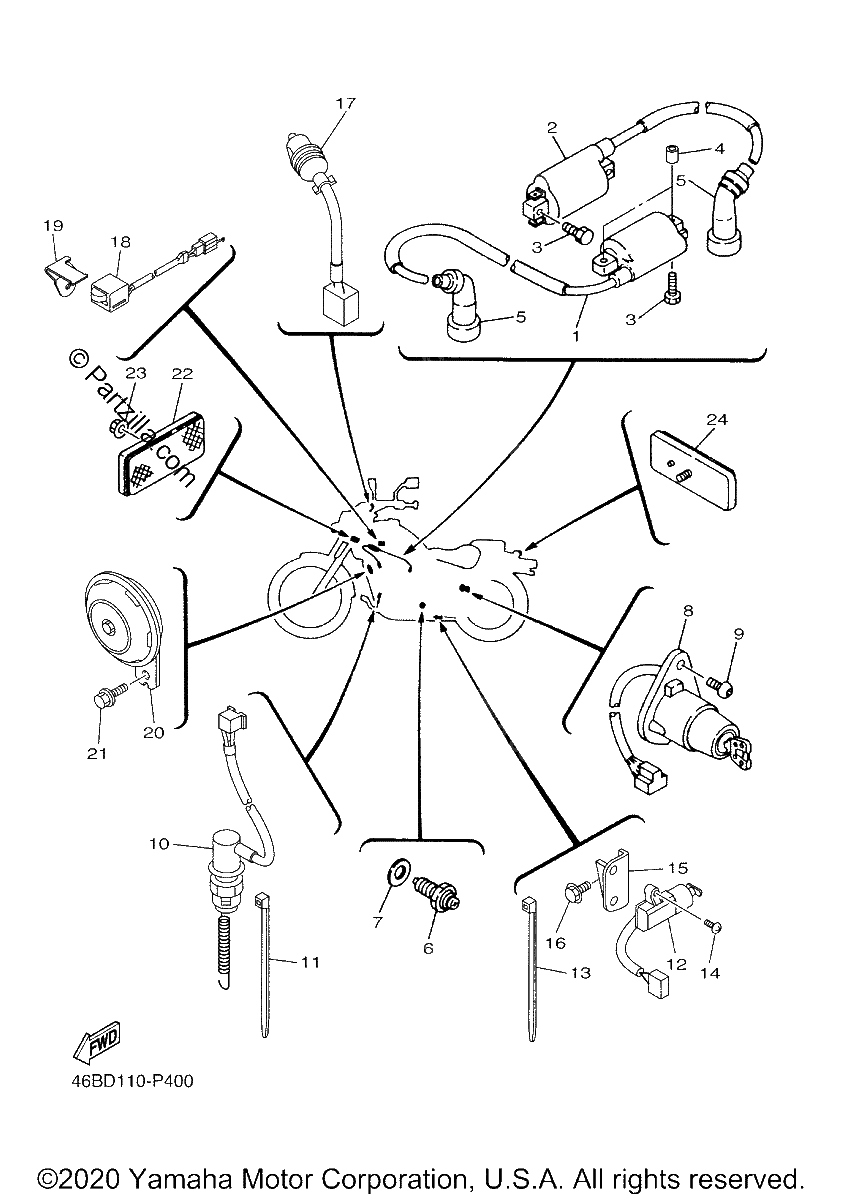

Diagrama de ELECTRICAL 2

Repuestos

#1
2UJ-82310-02-00
IGNITION COIL ASSY
$46.50¢23 250
1
#2
2UJ-82320-01-00
IGNITION COIL ASSY
$46.50¢23 250
1
#3
97027-05020-00
BOLT
$2.95¢1 475
1
#4
90445-07176-00
HOSE (L200) | FOR CAL
$8.39¢4 194
1
#5
3NS-82370-00-00
PLUG CAP ASY
$38.68¢19 338
1
#6
4KM-82540-00-00
NEUTRAL SWITCH ASSY
$39.93¢19 963
1
#7
90430-10148-00
Gasket
$5.66¢2 831
1
#8
46B-82510-00-00
MAIN SWITCH ASSY
$251.91¢125 956
1
#9
90149-06228-00
SCREW,SPEC'L SHAPE
$7.48¢3 738
1
#10
5PW-82530-00-00
STOP SWITCH ASSY
$31.76¢15 881
1
#11
90464-16061-00
BAND
$8.35¢4 175
1
#12
3LD-82566-60-00
SWITCH,SIDE STAND
$59.44¢29 719
1
#13
90464-16061-00
BAND
$8.35¢4 175
1
#14
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#15
2UJ-82565-00-00
PANEL, SWITCH
$18.52¢9 263
1
#16
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#17
19D-83980-10-00
FRONT STOP SWITCH ASSY
$44.26¢22 131
1
#18
5FU-82560-40-00
THERMO SWITCH ASSY
$24.75¢12 375
1
#19
3BG-82571-00-00
PANEL, SWITCH
$5.55¢2 775
1
#20
1HX-83371-11-00
HORN
$42.99¢21 494
1
#21
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#22
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#23
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#24
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
