CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

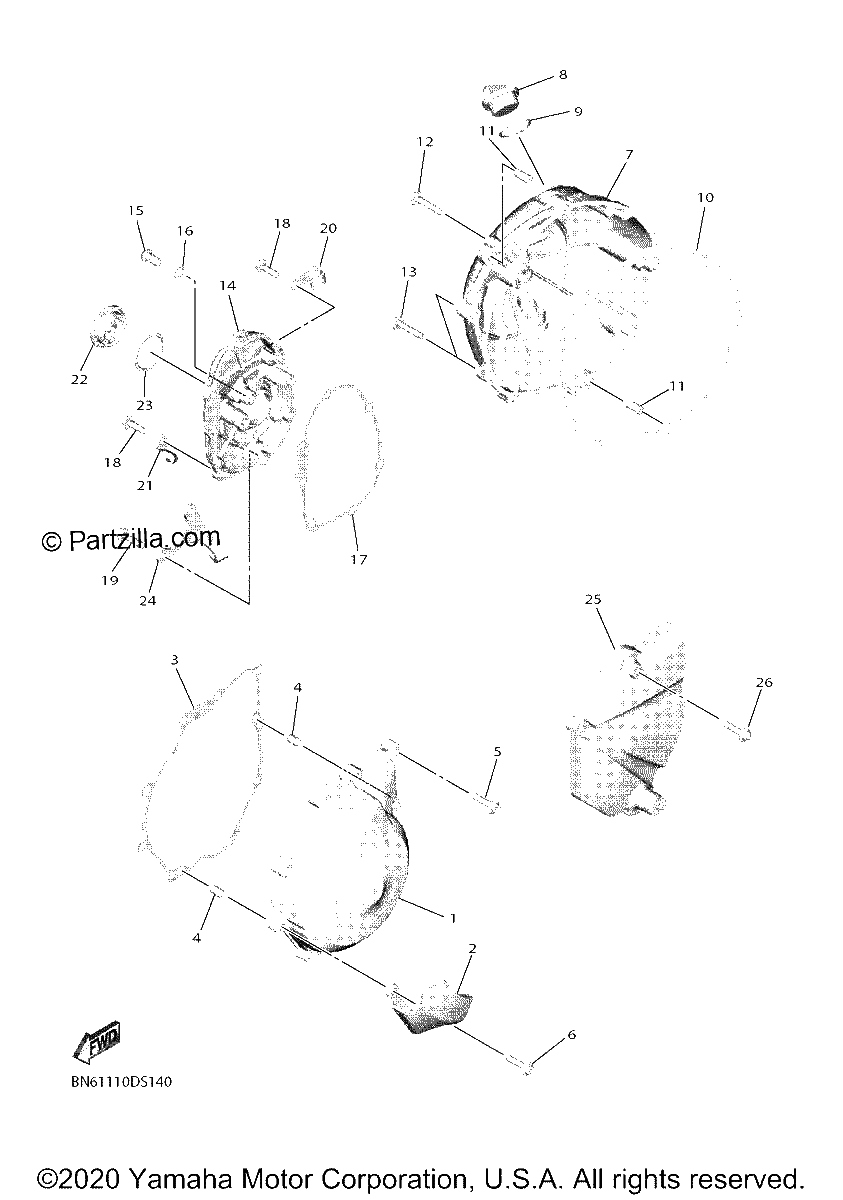

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2C0-15411-01-00
COVER, CRANKCASE 1
$148.13¢74 066
1
#2
BN6-15490-00-00
Cover assy
$122.67¢61 335
1
#3
2C0-15451-01-00
GASKET, CRANKCASE COVER 1
$18.68¢9 338
1
#4
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#5
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
1
#6
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
1
#7
2C0-15421-00-00
COVER, CRANKCASE 2
$313.11¢156 555
1
#8
3F9-15362-10-00
PLUG, OIL LEVEL
$21.09¢10 545
1
#9
93210-27778-00
O-RING
$7.56¢3 778
1
#10
2C0-15461-01-00
GASKET, CRANKCASE COVER 2
$24.08¢12 041
1
#11
93608-17263-00
PIN, DOWEL
$2.64¢1 322
1
#12
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#13
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#14
2C0-15416-00-00
COVER, OIL PUMP
$155.73¢77 866
1
#15
92014-08014-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#16
90430-08143-00
GASKET
$3.38¢1 691
1
#17
2C0-15456-01-00
GASKET, OIL PUMP COVER 1
$17.68¢8 838
1
#18
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#19
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
1
#20
90465-08395-00
CLAMP
$14.34¢7 170
1
#21
2C0-21823-00-00
CLAMP, HOSE
$10.32¢5 158
1
#22
90340-32004-00
PLUG, STRAIGHT SCREW
$27.34¢13 668
1
#23
93210-32172-00
O-Ring
$6.32¢3 162
1
#24
2C0-15441-00-00
HOLDER, CLUTCH CABLE
$22.99¢11 494
1
#25
2C0-15418-00-00
COVER, CHAIN CASE
$27.28¢13 639
1
#26
90109-06015-00
BOLT
$4.38¢2 191
1
