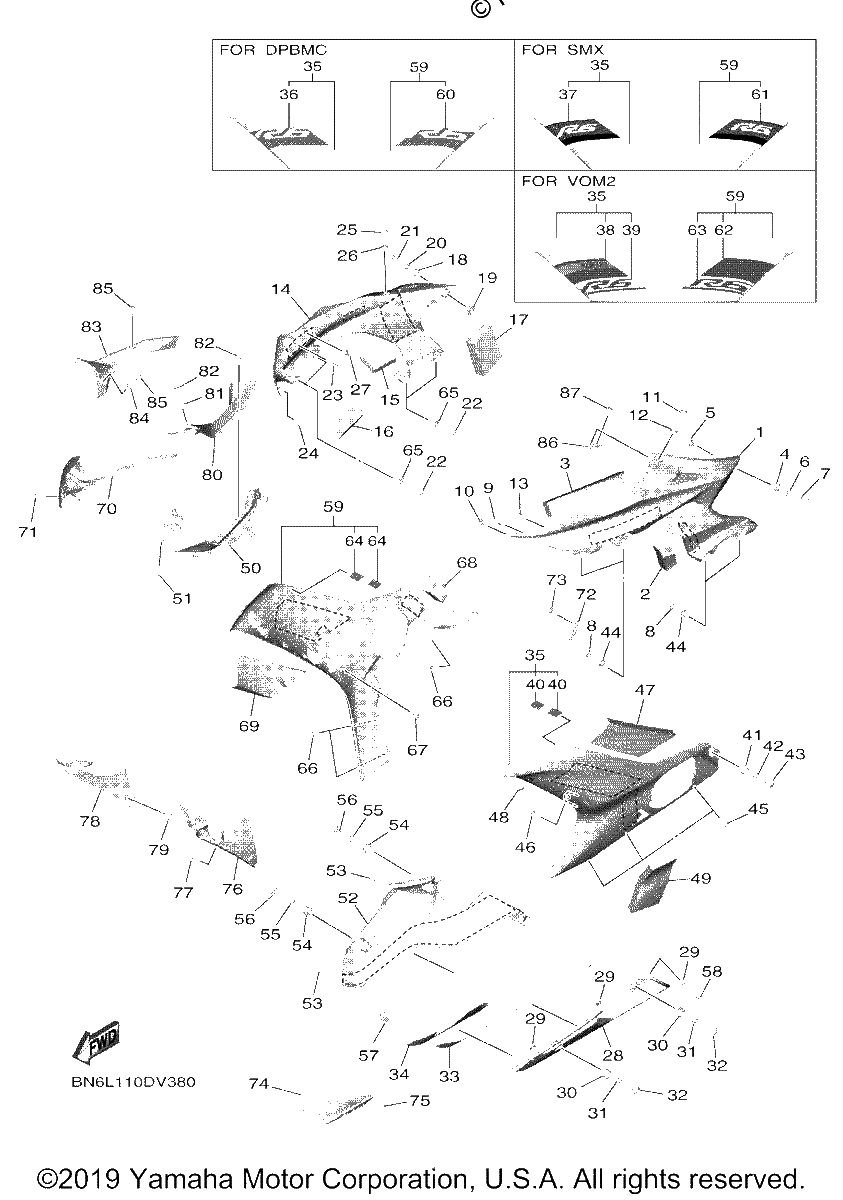

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7
$422.71¢211 356
#1
COVER 7
$374.30¢187 150
#1
COVER 7
$374.30¢187 150
#2
DAMPER, PLATE
$1.93¢963
#3
SEAL 12
$2.91¢1 456
#4
Grommet
$23.96¢11 981
#5
COLLAR
$6.19¢3 094
#6
WASHER, PLATE
$8.45¢4 225
#7
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#8
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#9
NUT, SPRING
$4.97¢2 488
#10
Clamp
$0.72¢363
#11
SCREW,SPEC'L SHAPE
$5.07¢2 537
#12
WASHER, PLATE
$4.05¢2 025
#13
Clip
$1.07¢538
#14
COVER 8
$352.75¢176 375
#14
COVER 8
$314.93¢157 463
#14
COVER 8
$374.30¢187 150
#15
DAMPER, PLATE
$1.93¢963
#16
DAMPER, PLATE
$1.82¢913
#17
SEAL 26
$2.91¢1 456
#18
Grommet
$23.96¢11 981
#19
COLLAR
$6.19¢3 094
#20
WASHER, PLATE
$8.45¢4 225
#21
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#22
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#23
NUT, SPRING
$4.97¢2 488
#24
Clamp
$0.72¢363
#25
SCREW,SPEC'L SHAPE
$5.07¢2 537
#26
WASHER, PLATE
$4.05¢2 025
#27
Clip
$1.07¢538
#28
COVER, UNDER
$168.81¢84 406
#28
COVER, UNDER
$135.85¢67 925
#28
COVER, UNDER
$128.46¢64 231
#29
NUT, SPRING
$2.82¢1 412
#30
GROMMET
$7.43¢3 713
#31
COLLAR
$7.43¢3 713
#32
bolt
$4.00¢2 000
#33
SEAT 1
$35.19¢17 594
#34
DAMPER, locating 1
$6.64¢3 319
#35
PANEL ASSY 1
$348.19¢174 094
#35
PANEL ASSY 1
$353.34¢176 669
#35
PANEL ASSY 1
$349.24¢174 619
#36
GRAPHIC 1
$41.61¢20 806
#37
GRAPHIC 1
$124.96¢62 481
#38
GRAPHIC 1
$38.13¢19 063
#39
EMBLEM, 1
$27.20¢13 600
#40
Protector
$1.75¢875
#41
GROMMET
$7.43¢3 713
#42
COLLAR
$7.43¢3 713
#43
bolt
$4.00¢2 000
#44
NUT, SPRING
$2.82¢1 412
#45
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#46
RIVET
$6.45¢3 225
#47
DAMPER 2
$7.13¢3 563
#48
DAMPER
$7.60¢3 800
#49
DAMPER, PLATE
$4.34¢2 169
#50
COVER 1
$34.98¢17 488
#51
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#52
COVER, UNDER 2
$150.59¢75 294
#52
COVER, UNDER 2
$140.07¢70 038
#52
COVER, UNDER 2
$139.31¢69 656
#53
NUT, SPRING
$2.82¢1 412
#54
GROMMET
$7.43¢3 713
#55
COLLAR
$7.43¢3 713
#56
bolt
$4.00¢2 000
#57
SEAT 2
$30.47¢15 237
#58
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#59
PANEL ASSY 2
$292.23¢146 113
#59
PANEL ASSY 2
$346.00¢173 000
#59
PANEL ASSY 2
$348.16¢174 081
#60
GRAPHIC 2
$41.61¢20 806
#61
GRAPHIC 2
$66.21¢33 106
#62
GRAPHIC 2
$38.13¢19 063
#63
EMBLEM 2
$27.20¢13 600
#64
Protector
$1.75¢875
#65
NUT, SPRING
$2.82¢1 412
#66
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#67
RIVET
$6.45¢3 225
#68
DAMPER, PLATE
$1.34¢669
#69
DAMPER 4
$7.65¢3 825
#70
COVER 2
$34.98¢17 488
#71
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#72
BRACKET 4
$5.58¢2 788
#73
BOLT, FLANGE
$2.65¢1 325
#74
PANEL, INNER 1
$93.61¢46 806
#75
NUT, SPRING
$2.82¢1 412
#76
PANEL, INNER 2
$60.51¢30 256
#77
RIVET
$8.80¢4 400
#78
PANEL, INNER 3
$70.92¢35 463
#79
RIVET
$8.80¢4 400
#80
PANEL, console 1
$19.26¢9 631
#81
DAMPER
$6.45¢3 225
#82
RIVET
$8.80¢4 400
#83
PANEL, CONSOLE 2
$19.30¢9 650
#84
DAMPER
$6.45¢3 225
#85
RIVET
$8.80¢4 400
#86
STAY 2
$8.60¢4 300
#87
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
