DRIVE SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

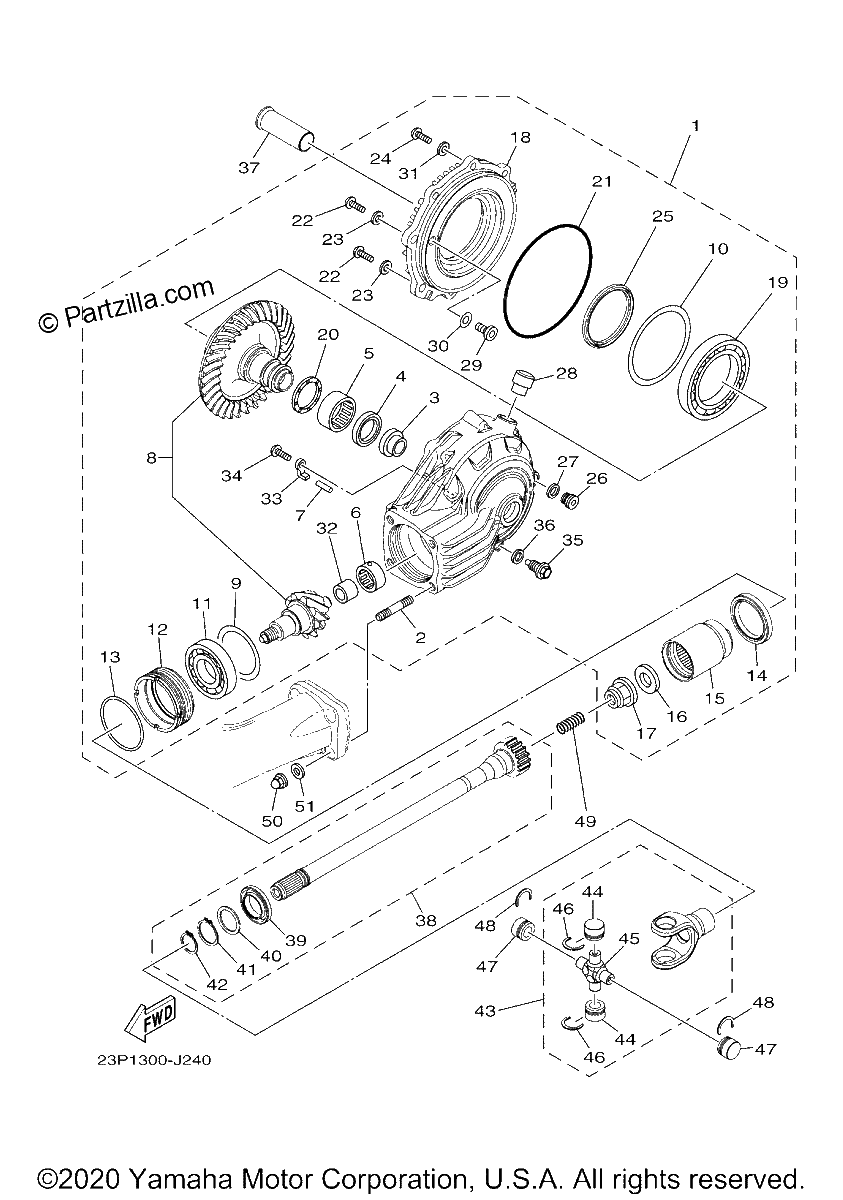

Diagrama de DRIVE SHAFT

Repuestos

#1
23P-46101-00-00
REAR AXLE GEAR CASE ASSY
$2037.79¢1 018 894
1
#2
90116-10055-00
BOLT, STUD
$6.67¢3 335
1
#3
23P-46153-00-00
COLLAR, GUIDE
$24.95¢12 478
1
#4
93102-32480-00
Oil Seal
$18.31¢9 154
1
#5
93311-43729-00
BEARING
$76.89¢38 445
1
#6
93311-62597-00
BEARING
$61.25¢30 624
1
#7
93605-23164-00
PIN, DOWEL
$2.36¢1 179
1
#8
23P-461A0-00-00
GEAR SET
$883.19¢441 594
1
#9
2S3-46119-60-00
SHIM, THRUST (T0.2) | UR
$9.27¢4 635
1
#9
2S3-46119-50-00
SHIM, THRUST (T0.6) | UR
$9.27¢4 635
1
#9
2S3-46119-40-00
SHIM, THRUST (T0.5) | UR
$9.27¢4 635
1
#9
2S3-46119-30-00
SHIM, THRUST (T0.45) | UR
$9.27¢4 635
1
#9
2S3-46119-20-00
SHIM, THRUST (T0.4) | UR
$9.27¢4 635
1
#9
2S3-46119-10-00
SHIM, THRUST (T0.3) | UR
$9.27¢4 635
1
#9
2S3-46119-00-00
SHIM, THRUST (T0.15) | UR
$9.27¢4 635
1
#9
2S3-46119-70-00
SHIM, THRUST (T0.25) | UR
$9.27¢4 635
1
#10
1J7-46117-Y0-50
SHIM, RING GEAR (0.50T) | UR
$11.15¢5 577
1
#10
1J7-46117-Y0-40
SHIM, RING GEAR (0.40T) | UR
$13.20¢6 601
1
#10
1J7-46117-Y0-30
SHIM, RING GEAR (0.30T) | UR
$7.27¢3 634
1
#10
1J7-46117-Y0-25
SHIM, RING GEAR (0.25T) | UR
$13.26¢6 630
1
#11
93306-20724-00
BEARING
$91.72¢45 862
1
#12
23P-46125-00-00
RETAINER, BEARING
$110.46¢55 229
1
#13
93210-69628-00
O-RING
$20.80¢10 402
1
#14
93102-50009-00
OIL SEAL
$31.98¢15 991
1
#15
23P-46123-00-00
COUPLING, GEAR
$183.80¢91 902
1
#16
90208-20001-00
WASHER, CONICAL SPRING
$16.09¢8 044
1
#17
90179-20015-00
NUT
$26.65¢13 323
1
#18
23P-46152-00-00
HOUSING, BEARING
$134.79¢67 396
1
#19
93316-01403-00
BEARING
$85.80¢42 901
1
#20
22U-46118-00-12
SHIM, THRUST (1.2T) | UR
$9.98¢4 991
1
#20
22U-46118-00-16
SHIM, THRUST (1.6T) | UR
$10.12¢5 060
1
#20
22U-46118-00-14
SHIM, THRUST (1.4T) | UR
$10.19¢5 094
1
#20
22U-46118-00-20
SHIM, THRUST (2.0T) | UR
$9.98¢4 991
1
#20
22U-46118-00-18
SHIM, THRUST (1.8T) | UR
$10.09¢5 043
1
#21
93211-54698-00
O-RING
$19.41¢9 706
1
#22
90149-10055-00
SCREW
$3.10¢1 553
1
#23
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#24
90149-08051-00
SCREW
$1.83¢914
1
#25
93102-70004-00
OIL SEAL
$32.41¢16 203
1
#26
90340-14002-00
PLUG, STRAIGHT SCREW
$18.58¢9 292
1
#27
214-11198-01-00
GASKET
$2.97¢1 483
1
#28
2H7-17590-00-00
BREATHER COMP.
$25.81¢12 903
1
#29
1FK-46156-00-00
STOPPER, RING GEAR
$16.36¢8 182
1
#30
1FK-46157-00-20
SHIM, STOPPER (T=0.20) | UR
$4.11¢2 053
1
#30
1FK-46157-00-15
SHIM, STOPPER (T=0.15) | UR
$3.43¢1 713
1
#31
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#32
23P-46122-00-00
RACE, INNER
$34.19¢17 095
1
#33
2S3-46862-00-00
HOLDER
$6.22¢3 111
1
#34
90149-06156-00
SCREW
$6.96¢3 479
1
#35
90340-14004-00
PLUG, STRAIGHT SCREW
$15.78¢7 889
1
#36
214-11198-01-00
GASKET
$2.97¢1 483
1
#37
23P-4615A-00-00
COLLAR, GUIDE 1
$44.22¢22 109
1
#38
23P-46171-00-00
SHAFT DRIVE ASSY
$298.45¢149 224
1
#39
93108-49003-00
OIL SEAL
$30.81¢15 404
1
#40
90201-29M01-00
WASHER, PLATE
$8.72¢4 358
1
#41
93410-29095-00
CIRCLIP
$2.06¢1 029
1
#42
93410-23056-00
CIRCLIP
$6.53¢3 266
1
#43
23P-46180-00-00
CROSS JOINT COMP.
$254.21¢127 104
1
#44
93399-99963-00
BEARING
$25.17¢12 587
1
#45
23P-46187-00-00
SPIDER
$58.42¢29 210
1
#46
93440-22196-00
CIRCLIP
$3.55¢1 777
1
#47
93399-99963-00
BEARING
$25.17¢12 587
1
#48
93440-22196-00
CIRCLIP
$3.55¢1 777
1
#49
90501-20122-00
SPRING, COMPRESSION
$3.83¢1 915
1
#50
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#51
92990-10600-00
WASHER, PLATE
$3.02¢1 512
1
