TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

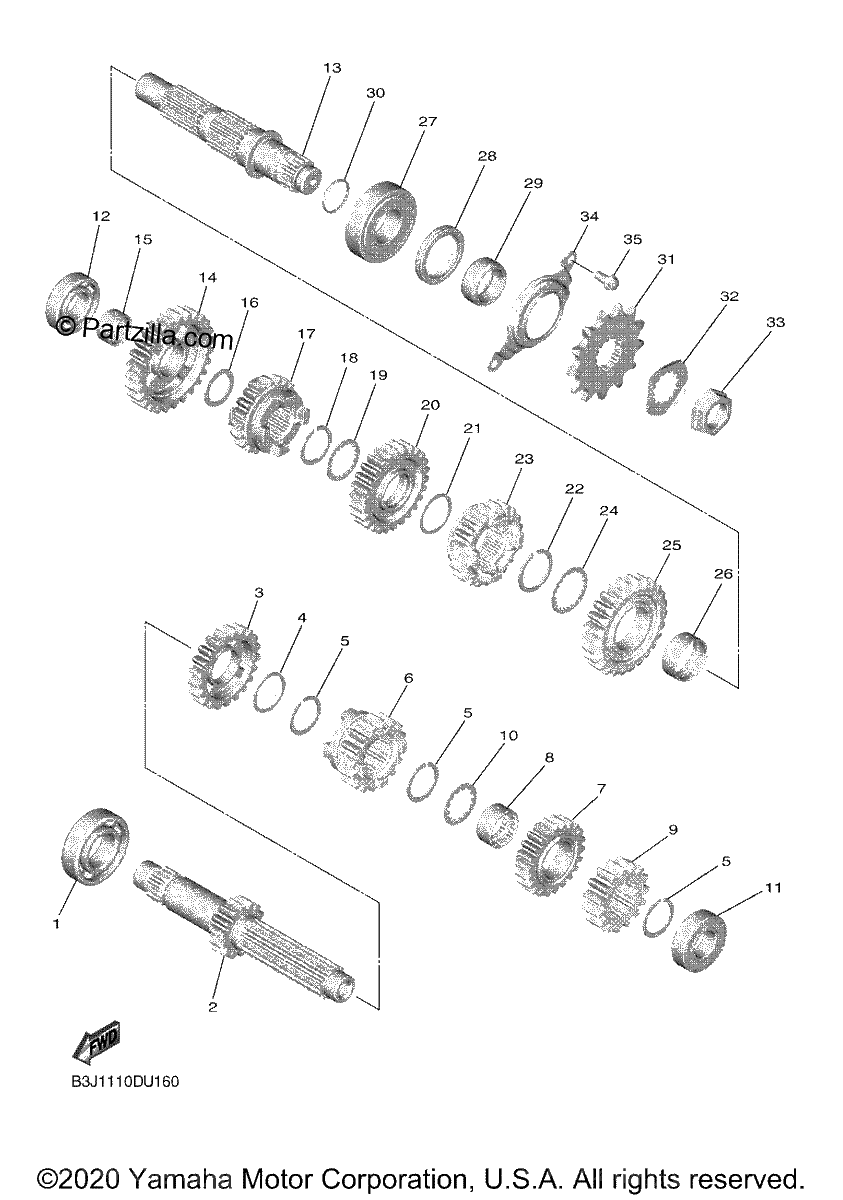

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$68.65¢34 325
1
#2
B3J-17411-00-00
Axle, Main
$135.66¢67 831
1
#3
5TJ-17151-21-00
GEAR, 5TH PINION (replaces 5TJ-17151-20-00)
$65.29¢32 644
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#5
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#6
B3J-17131-00-00
GEAR, 3RD PINION
$152.46¢76 231
1
#7
B3J-17141-00-00
GEAR, 4TH PINION
$75.38¢37 688
1
#8
90387-21005-00
Collar
$29.81¢14 906
1
#9
5TJ-17121-30-00
GEAR, 2ND PINION (replaces 5TJ-17121-20-00)
$70.84¢35 419
1
#10
90209-21332-00
WASHER
$8.03¢4 013
1
#11
93306-00447-00
BEARING
$42.55¢21 275
1
#12
93306-00426-00
BEARING
$43.60¢21 800
1
#13
BR9-17402-00-00
Drive axle assy
$182.56¢91 281
1
#14
5TJ-17211-20-00
GEAR, 1ST WHEEL
$120.89¢60 444
1
#15
90387-20028-00
Collar
$24.22¢12 112
1
#16
90201-203E7-00
WASHER,PLATE
$8.60¢4 300
1
#17
B3J-17251-00-00
GEAR, 5TH WHEEL
$123.50¢61 750
1
#18
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#19
90209-22008-00
WASHER
$6.14¢3 069
1
#20
B3J-17231-00-00
GEAR, 3RD WHEEL (replaces 5TJ-17231-20-00)
$81.39¢40 694
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#23
B3J-17241-00-00
GEAR, 4TH WHEEL
$155.81¢77 906
1
#24
90209-26348-00
WASHER
$11.49¢5 744
1
#25
5TJ-17221-30-00
GEAR, 2ND WHEEL (replaces 5TJ-17221-20-00)
$86.41¢43 206
1
#26
90387-28012-00
Collar
$32.06¢16 031
1
#27
93306-205A5-00
BEARING
$63.35¢31 675
1
#28
93102-32014-00
Oil Seal
$33.45¢16 725
1
#29
90387-25037-00
Collar
$29.15¢14 575
1
#30
93210-22298-00
O-RING
$7.81¢3 906
1
#31
9383E-13233-00
SPROCKET, DRIVE (13T)
$23.64¢11 819
1
#32
90215-21003-00
Washer, Lock
$6.41¢3 206
1
#33
90179-20001-00
Nut
$16.43¢8 213
1
#34
1SL-17471-00-00
PLATE, COVER
$14.52¢7 262
1
#35
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
