EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

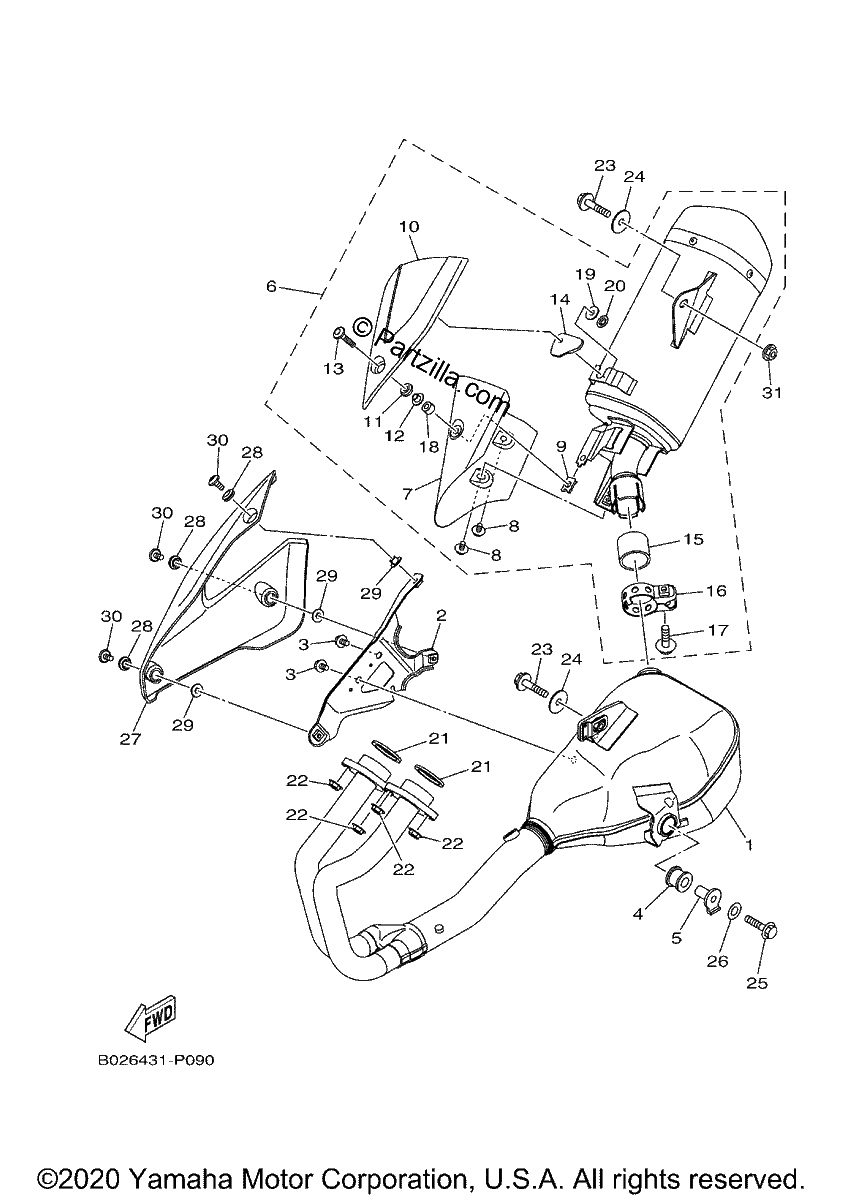

Diagrama de EXHAUST

Repuestos

#1
2MS-E4602-00-00
EXHAUST PIPE COMP.
$884.56¢442 278
1
#2
1WD-E473L-00-00
BRACKET 3
$48.71¢24 357
1
#3
95027-06010-00
BOLT,FLANGE(4MY)
$2.71¢1 357
1
#4
4XV-27424-00-00
DAMPER, FOOTREST 2
$13.94¢6 969
1
#5
1WD-E4775-00-00
NUT
$4.53¢2 266
1
#6
2MS-E4710-00-00
MUFFLER ASSY 1
$239.27¢119 634
1
#7
1WD-E4758-00-00
PROTECTOR, SILENCER
$29.77¢14 887
1
#8
90111-06031-00
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
1
#9
90183-06818-00
NUT, SPRING
$0.85¢426
1
#10
1WD-E4728-00-00
PROTECTOR, MUFFLER 2
$127.04¢63 520
1
#11
90480-12581-00
GROMMET
$5.09¢2 547
1
#12
90387-06273-00
Collar
$3.01¢1 507
1
#13
90111-06847-00
BOLT, HEX. SOCKET BUTTON
$1.32¢661
1
#14
1WD-E4763-00-00
SPACER
$45.23¢22 615
1
#15
54D-E4714-00-00
GASKET, MUFFLER
$9.12¢4 560
1
#16
1WD-E4715-00-00
BAND, MUFFLER
$9.29¢4 646
1
#17
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$6.75¢3 375
1
#18
90387-068N4-00
COLLAR
$2.37¢1 185
1
#19
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#20
90183-06071-00
NUT, SPRING
$0.59¢293
1
#21
1WD-E4613-00-00
GASKET, EXHAUST PIPE
$8.26¢4 129
1
#22
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#23
90105-088G7-00
BOLT, FLANGE
$1.21¢604
1
#24
90201-08612-00
WASHER, PLATE
$7.30¢3 651
1
#25
95817-08030-00
BOLT, FLANGE
$6.75¢3 375
1
#26
90201-087F0-00
WASHER, PLATE
$4.06¢2 030
1
#27
1WD-E4628-00-00
PROTECTOR, EXHAUST PIPE
$19.08¢9 539
1
#28
90480-12581-00
GROMMET
$5.09¢2 547
1
#29
90387-087L0-00
COLLAR
$6.76¢3 381
1
#30
90111-06087-00
BOLT,HEX. SOCKET BUT
$4.35¢2 173
1
#31
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
