CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

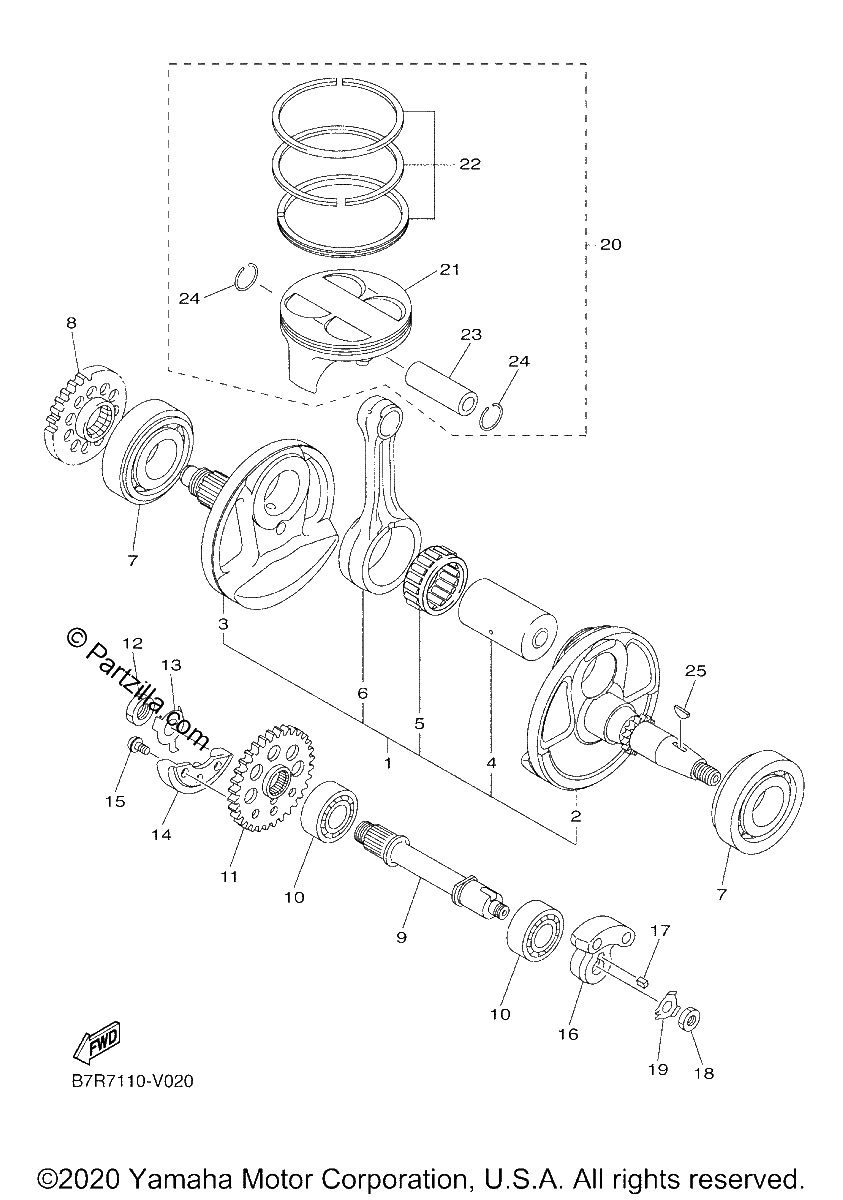

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
B3J-11400-00-00
Crankshaft Assy
$826.24¢413 119
1
#2
BR9-11412-10-00
CRANK 1
$333.19¢166 594
1
#3
BR9-11422-00-00
CRANK 2
$366.74¢183 369
1
#4
5TG-11681-01-00
PIN, CRANK 1
$89.36¢44 681
1
#5
93310-63499-00
BEARING
$62.41¢31 206
1
#6
33D-11651-03-00
ROD, CONNECTING
$136.76¢68 381
1
#7
93306-30633-00
BEARING
$104.96¢52 481
1
#8
2S2-11536-00-00
GEAR, DRIVE
$100.17¢50 088
1
#9
BR9-11455-00-00
SHAFT 1
$184.41¢92 206
1
#10
93306-20335-00
BEARING
$36.39¢18 194
1
#11
2S2-11531-10-00
GEAR, BALANCE WEIGHT
$200.03¢100 013
1
#12
90170-14171-00
NUT
$8.64¢4 319
1
#13
90215-14287-00
WASHER, LOCK
$5.26¢2 631
1
#14
33D-11454-00-00
WEIGHT 1
$89.31¢44 656
1
#15
90149-06193-00
Screw
$1.99¢994
1
#16
33D-11464-00-00
WEIGHT 2
$90.78¢45 388
1
#17
90282-05034-00
KEY, STRAIGHT
$9.91¢4 956
1
#18
90170-10013-00
Nut
$11.91¢5 956
1
#19
90215-10009-00
WASHER, LOCK
$13.77¢6 887
1
#20
BR9-116A0-00-00
Piston Assy
$204.27¢102 137
1
#21
BR9-11631-00-00
PISTON (Std)
$174.44¢87 219
1
#22
33D-11603-00-00
PISTON RING SET (STD)
$66.19¢33 094
1
#23
BR9-11633-00-00
Pin, Piston
$70.53¢35 263
1
#24
93450-19052-00
CIRCLIP
$6.06¢3 031
1
#25
90280-03006-00
KEY, WOODRUFF
$8.09¢4 044
1
