SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

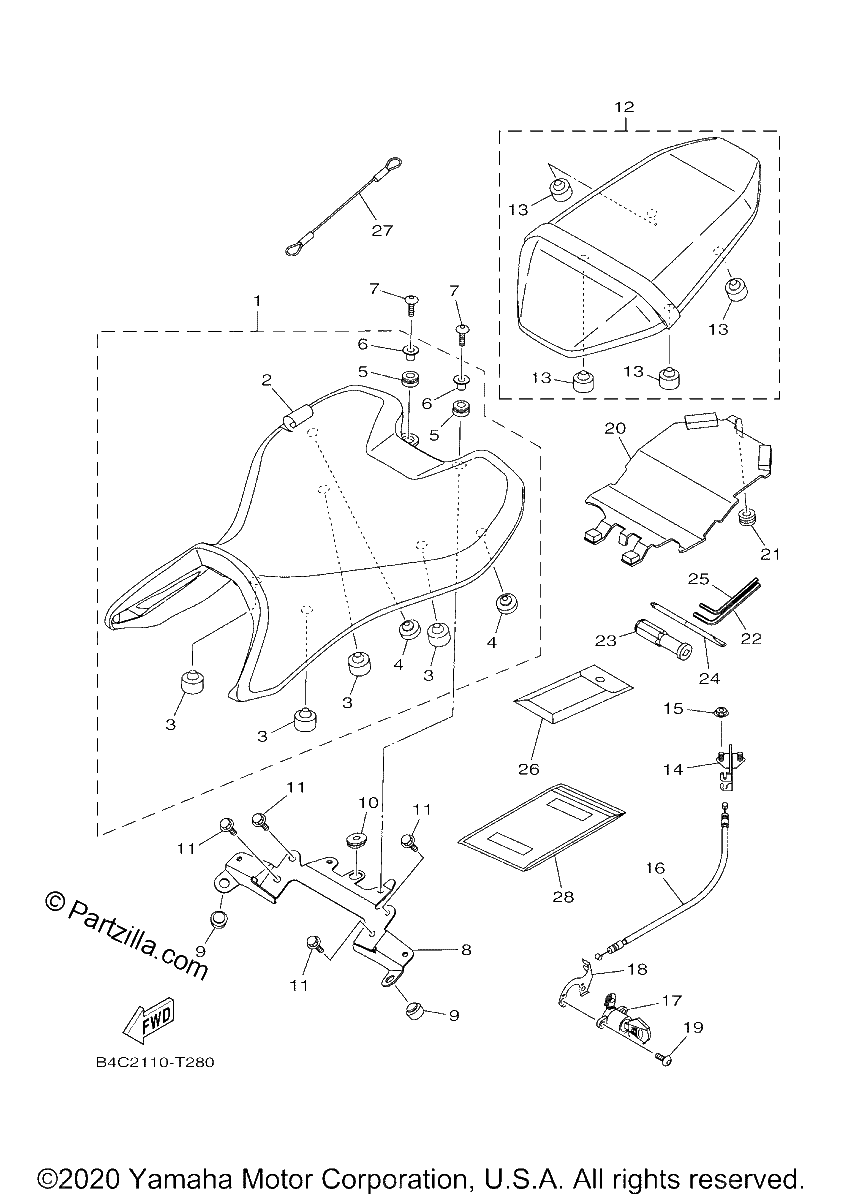

Diagrama de SEAT

Repuestos

#1
B4C-24710-01-00
SINGLE SEAT ASSY (replaces B4C-24710-00-00)
$172.35¢86 175
1
#2
B4C-2470F-01-00
SEAT COVER COMP. (replaces B4C-2470F-00-00)
$81.91¢40 956
1
#3
371-27114-00-00
STOPPER, MAIN STAND
$6.91¢3 456
1
#4
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#5
90480-14604-00
GROMMET
$8.84¢4 419
1
#6
90387-07391-00
COLLAR
$9.22¢4 613
1
#7
90111-06139-00
BOLT,HEX. SOCKET BUTTON
$3.11¢1 556
1
#8
B4C-21131-00-00
Bracket
$82.33¢41 163
1
#9
157-27114-00-00
STOPPER, MAIN STAND
$10.31¢5 156
1
#10
90480-01558-00
Grommet
$4.69¢2 344
1
#11
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.74¢369
1
#12
B4C-24750-01-00
TANDEM SEAT ASSY (replaces B4C-24750-00-00)
$162.91¢81 456
1
#13
278-27114-00-00
STOPPER, MAIN STAND
$10.09¢5 044
1
#14
1WS-24780-00-00
SEAT LOCK ASSY
$15.36¢7 681
1
#15
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#16
1WS-2478E-00-00
CABLE, SEAT LOCK
$14.34¢7 169
1
#17
3CK-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#18
23P-2117K-01-00
STAY, LOCK
$7.40¢3 700
1
#19
90149-06030-00
SCREW
$6.39¢3 194
1
#20
B4C-2477A-00-00
Seat Cover Assy
$11.00¢5 500
1
#21
90480-12237-00
GROMMET
$2.33¢1 163
1
#22
14B-28164-00-00
WRENCH, HEXAGON 8
$4.49¢2 244
1
#23
2H7-28151-00-00
GRIP, DRIVER
$7.08¢3 538
1
#24
137-28152-00-00
DRIVER
$4.11¢2 056
1
#25
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#26
B4C-28100-00-00
Tool Kit
$20.81¢10 406
1
#27
2S3-21398-00-00
HANGER, HELMET
$24.57¢12 288
1
#28
4KG-28186-10-00
POUCH
$8.49¢4 244
1
