TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

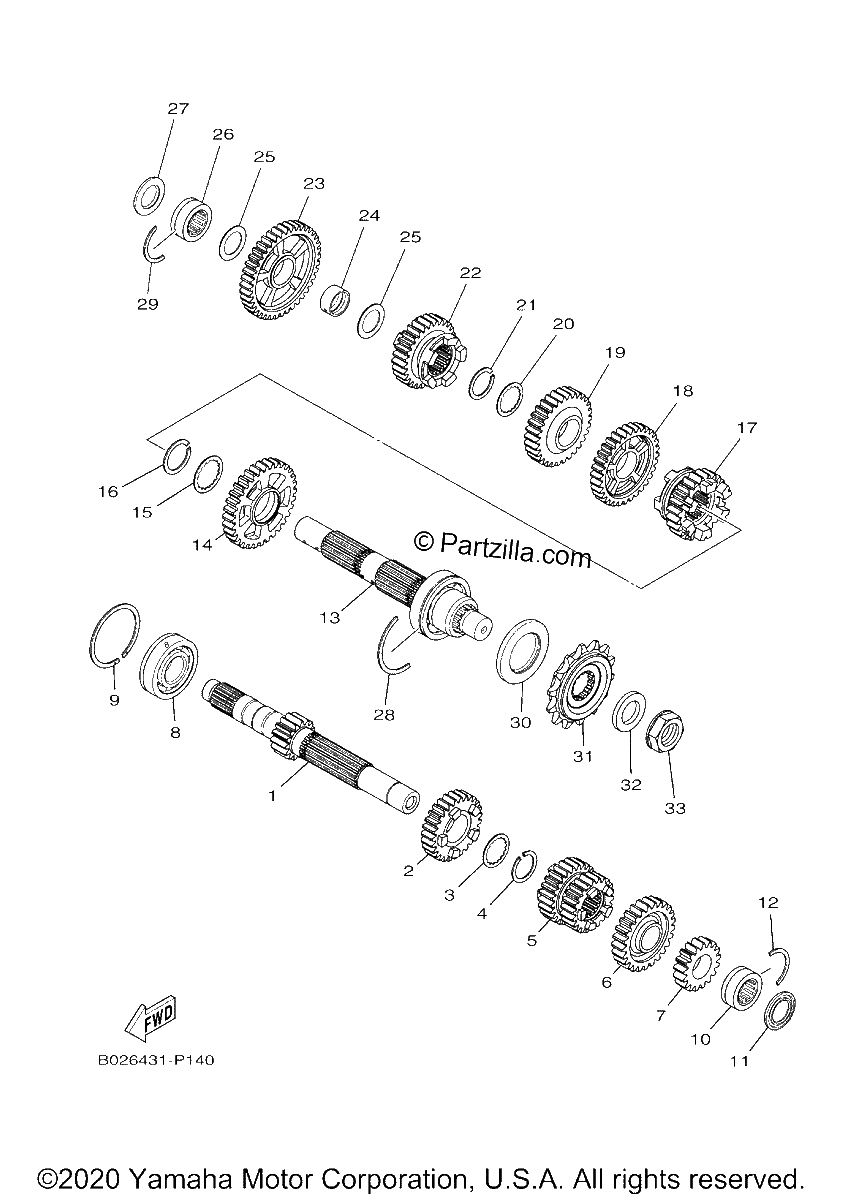

Diagrama de TRANSMISSION

Repuestos

#1
2MS-E7411-00-00
AXLE, MAIN (14T)
$148.75¢74 376
1
#2
2MS-E7151-00-00
GEAR, 5TH PINION (25T)
$38.23¢19 113
1
#3
90214-22008-00
WASHER, CLAW
$2.40¢1 202
1
#4
93440-24200-00
CIRCLIP
$1.82¢909
1
#5
2MS-E7131-00-00
GEAR, 3RD PINION (23T/23T)
$69.02¢34 512
1
#6
2MS-E7161-00-00
GEAR, 6TH PINION (30T)
$53.14¢26 571
1
#7
2MS-E7121-00-00
GEAR, 2ND PINION (17T)
$35.18¢17 589
1
#8
93306-255Y9-00
BEARING
$206.55¢103 276
1
#9
93440-52009-00
CIRCLIP
$10.67¢5 336
1
#10
93311-420Y3-00
BEARING
$28.73¢14 363
1
#11
93101-20802-00
OIL SEAL
$9.99¢4 997
1
#12
278-17425-00-00
CIRCLIP 2
$8.23¢4 117
1
#13
1WD-E7402-00-00
DRIVE AXLE ASSY
$154.87¢77 435
1
#14
2MS-E7221-00-00
GEAR, 2ND WHEEL (31T)
$66.03¢33 017
1
#15
90209-25011-00
WASHER
$7.91¢3 956
1
#16
93440-28184-00
CIRCLIP
$4.06¢2 030
1
#17
2MS-E7261-00-00
GEAR, 6TH WHEEL (24T)
$63.62¢31 809
1
#18
2MS-E7231-00-00
GEAR, 3RD WHEEL (31T)
$43.69¢21 844
1
#19
2MS-E7241-00-00
GEAR, 4TH WHEEL (25T)
$37.94¢18 969
1
#20
90214-22008-00
WASHER, CLAW
$2.40¢1 202
1
#21
93440-24200-00
CIRCLIP
$1.82¢909
1
#22
2MS-E7251-00-00
GEAR, 5TH WHEEL (23T)
$49.15¢24 575
1
#23
2MS-E7211-00-00
GEAR, 1ST WHEEL (35T)
$62.10¢31 050
1
#24
90387-20814-00
COLLAR
$9.80¢4 899
1
#25
90201-20276-00
WASHER, PLATE (T=1.0)
$7.19¢3 594
1
#26
93311-420Y3-00
BEARING
$28.73¢14 363
1
#27
93101-20802-00
OIL SEAL
$9.99¢4 997
1
#28
1WD-17424-00-00
CIRCLIP 1
$3.48¢1 742
1
#29
278-17425-00-00
CIRCLIP 2
$8.23¢4 117
1
#30
93102-35808-00
OIL SEAL (replaces 93102-35803-00)
$12.94¢6 469
1
#31
1WD-E7460-00-00
SPROCKET, DRIVE (14T)
$44.37¢22 184
1
#32
90201-20023-00
WASHER, PLATE
$7.38¢3 691
1
#33
90179-20013-00
NUT
$20.00¢9 999
1
