EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

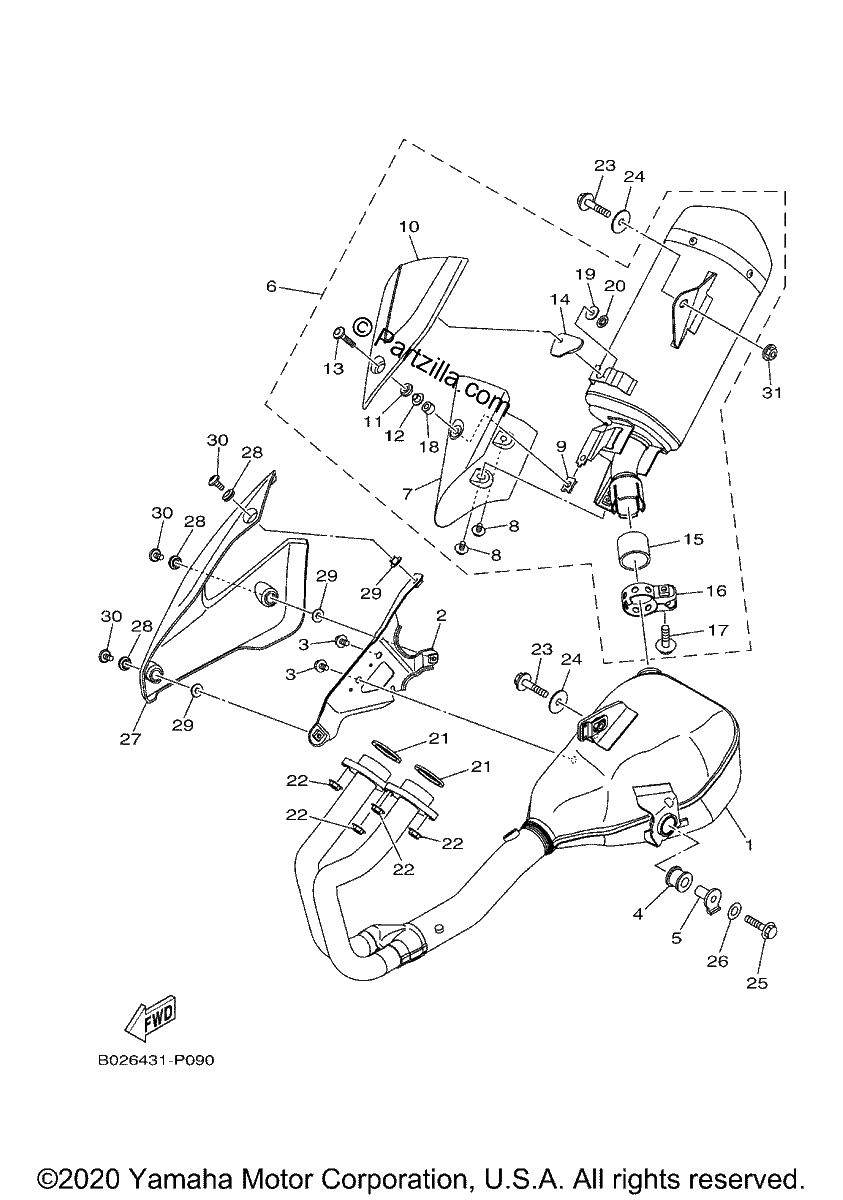

Diagrama de EXHAUST

Repuestos

#1
2MS-E4602-00-00
EXHAUST PIPE COMP.
$961.47¢480 737
1
#2
1WD-E473L-00-00
BRACKET 3
$52.95¢26 475
1
#3
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#4
4XV-27424-00-00
DAMPER, FOOTREST 2
$15.15¢7 575
1
#5
1WD-E4775-00-00
NUT
$4.92¢2 463
1
#6
2MS-E4710-00-00
MUFFLER ASSY 1
$260.07¢130 038
1
#7
1WD-E4758-00-00
PROTECTOR, SILENCER
$32.36¢16 181
1
#8
90111-06031-00
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
1
#9
90183-06818-00
NUT, SPRING
$0.93¢463
1
#10
1WD-E4728-00-00
PROTECTOR, MUFFLER 2
$138.09¢69 044
1
#11
90480-12581-00
GROMMET
$5.54¢2 769
1
#12
90387-06273-00
Collar
$3.28¢1 638
1
#13
90111-06847-00
BOLT, HEX. SOCKET BUTTON
$1.44¢719
1
#14
1WD-E4763-00-00
SPACER
$49.16¢24 581
1
#15
54D-E4714-00-00
GASKET, MUFFLER
$9.91¢4 956
1
#16
1WD-E4715-00-00
BAND, MUFFLER
$10.10¢5 050
1
#17
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$7.34¢3 669
1
#18
90387-068N4-00
COLLAR
$2.58¢1 288
1
#19
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#20
90183-06071-00
NUT, SPRING
$0.64¢319
1
#21
1WD-E4613-00-00
GASKET, EXHAUST PIPE
$8.97¢4 488
1
#22
95707-08500-00
NUT, FLANGE
$1.79¢894
1
#23
90105-088G7-00
BOLT, FLANGE
$1.31¢656
1
#24
90201-08612-00
WASHER, PLATE
$7.94¢3 969
1
#25
95817-08030-00
BOLT, FLANGE
$7.34¢3 669
1
#26
90201-087F0-00
WASHER, PLATE
$4.41¢2 206
1
#27
1WD-E4628-00-00
PROTECTOR, EXHAUST PIPE
$20.74¢10 369
1
#28
90480-12581-00
GROMMET
$5.54¢2 769
1
#29
90387-087L0-00
COLLAR
$7.35¢3 675
1
#30
90111-06087-00
BOLT,HEX. SOCKET BUT
$4.72¢2 363
1
#31
90185-08169-00
NUT, SELF-LOCKING
$8.45¢4 225
1
