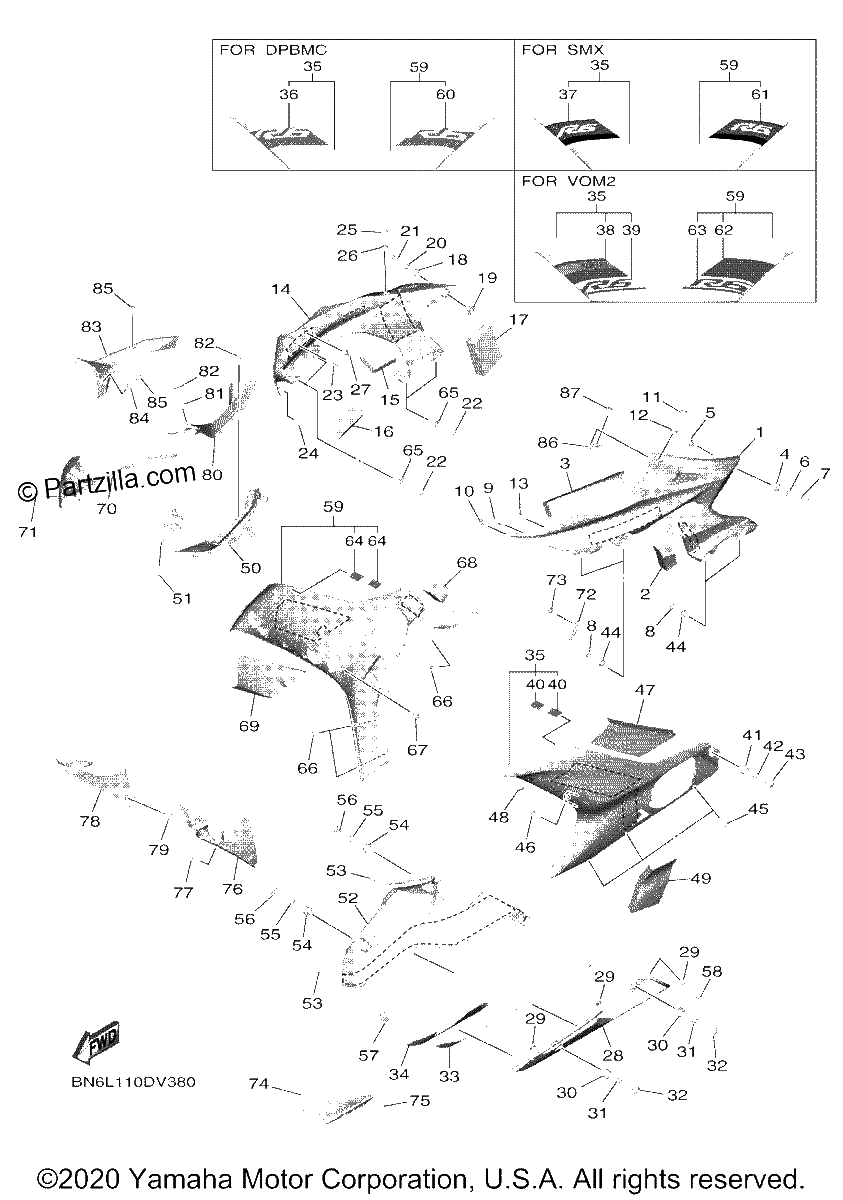

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7
$388.90¢194 448
#1
COVER 7
$344.36¢172 178
#1
COVER 7
$344.36¢172 178
#2
DAMPER, PLATE
$1.77¢886
#3
SEAL 12
$2.68¢1 340
#4
Grommet
$22.05¢11 023
#5
COLLAR
$5.69¢2 846
#6
WASHER, PLATE
$7.77¢3 887
#7
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#8
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#9
NUT, SPRING
$4.58¢2 289
#10
Clamp
$0.67¢333
#11
SCREW,SPEC'L SHAPE
$4.67¢2 335
#12
WASHER, PLATE
$3.73¢1 863
#13
Clip
$0.99¢494
#14
COVER 8
$289.73¢144 866
#14
COVER 8
$324.53¢162 265
#14
COVER 8
$344.36¢172 178
#15
DAMPER, PLATE
$1.77¢886
#16
DAMPER, PLATE
$1.68¢839
#17
SEAL 26
$2.68¢1 340
#18
Grommet
$22.05¢11 023
#19
COLLAR
$5.69¢2 846
#20
WASHER, PLATE
$7.77¢3 887
#21
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#22
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#23
NUT, SPRING
$4.58¢2 289
#24
Clamp
$0.67¢333
#25
SCREW,SPEC'L SHAPE
$4.67¢2 335
#26
WASHER, PLATE
$3.73¢1 863
#27
Clip
$0.99¢494
#28
COVER, UNDER
$118.19¢59 093
#28
COVER, UNDER
$124.98¢62 491
#28
COVER, UNDER
$155.31¢77 654
#29
NUT, SPRING
$2.60¢1 299
#30
GROMMET
$6.83¢3 415
#31
COLLAR
$6.83¢3 415
#32
bolt
$3.68¢1 840
#33
SEAT 1
$32.37¢16 186
#34
DAMPER, locating 1
$6.11¢3 053
#35
PANEL ASSY 1
$325.07¢162 535
#35
PANEL ASSY 1
$320.33¢160 166
#35
PANEL ASSY 1
$321.30¢160 649
#36
GRAPHIC 1
$38.28¢19 142
#37
GRAPHIC 1
$114.97¢57 483
#38
GRAPHIC 1
$35.07¢17 537
#39
EMBLEM, 1
$25.02¢12 512
#40
Protector
$1.61¢805
#41
GROMMET
$6.83¢3 415
#42
COLLAR
$6.83¢3 415
#43
bolt
$3.68¢1 840
#44
NUT, SPRING
$2.60¢1 299
#45
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#46
RIVET
$5.93¢2 967
#47
DAMPER 2
$6.55¢3 278
#48
DAMPER
$6.99¢3 496
#49
DAMPER, PLATE
$3.99¢1 995
#50
COVER 1
$32.18¢16 089
#51
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#52
COVER, UNDER 2
$138.54¢69 270
#52
COVER, UNDER 2
$128.87¢64 435
#52
COVER, UNDER 2
$128.17¢64 084
#53
NUT, SPRING
$2.60¢1 299
#54
GROMMET
$6.83¢3 415
#55
COLLAR
$6.83¢3 415
#56
bolt
$3.68¢1 840
#57
SEAT 2
$28.04¢14 018
#58
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#59
PANEL ASSY 2
$268.85¢134 424
#59
PANEL ASSY 2
$318.32¢159 160
#59
PANEL ASSY 2
$320.31¢160 155
#60
GRAPHIC 2
$38.28¢19 142
#61
GRAPHIC 2
$60.92¢30 458
#62
GRAPHIC 2
$35.07¢17 537
#63
EMBLEM 2
$25.02¢12 512
#64
Protector
$1.61¢805
#65
NUT, SPRING
$2.60¢1 299
#66
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#67
RIVET
$5.93¢2 967
#68
DAMPER, PLATE
$1.23¢615
#69
DAMPER 4
$7.04¢3 519
#70
COVER 2
$32.18¢16 089
#71
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#72
BRACKET 4
$5.13¢2 565
#73
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#74
PANEL, INNER 1
$86.12¢43 062
#75
NUT, SPRING
$2.60¢1 299
#76
PANEL, INNER 2
$55.67¢27 836
#77
RIVET
$8.10¢4 048
#78
PANEL, INNER 3
$65.25¢32 625
#79
RIVET
$8.10¢4 048
#80
PANEL, console 1
$17.72¢8 861
#81
DAMPER
$5.93¢2 967
#82
RIVET
$8.10¢4 048
#83
PANEL, CONSOLE 2
$17.76¢8 878
#84
DAMPER
$5.93¢2 967
#85
RIVET
$8.10¢4 048
#86
STAY 2
$7.91¢3 956
#87
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
