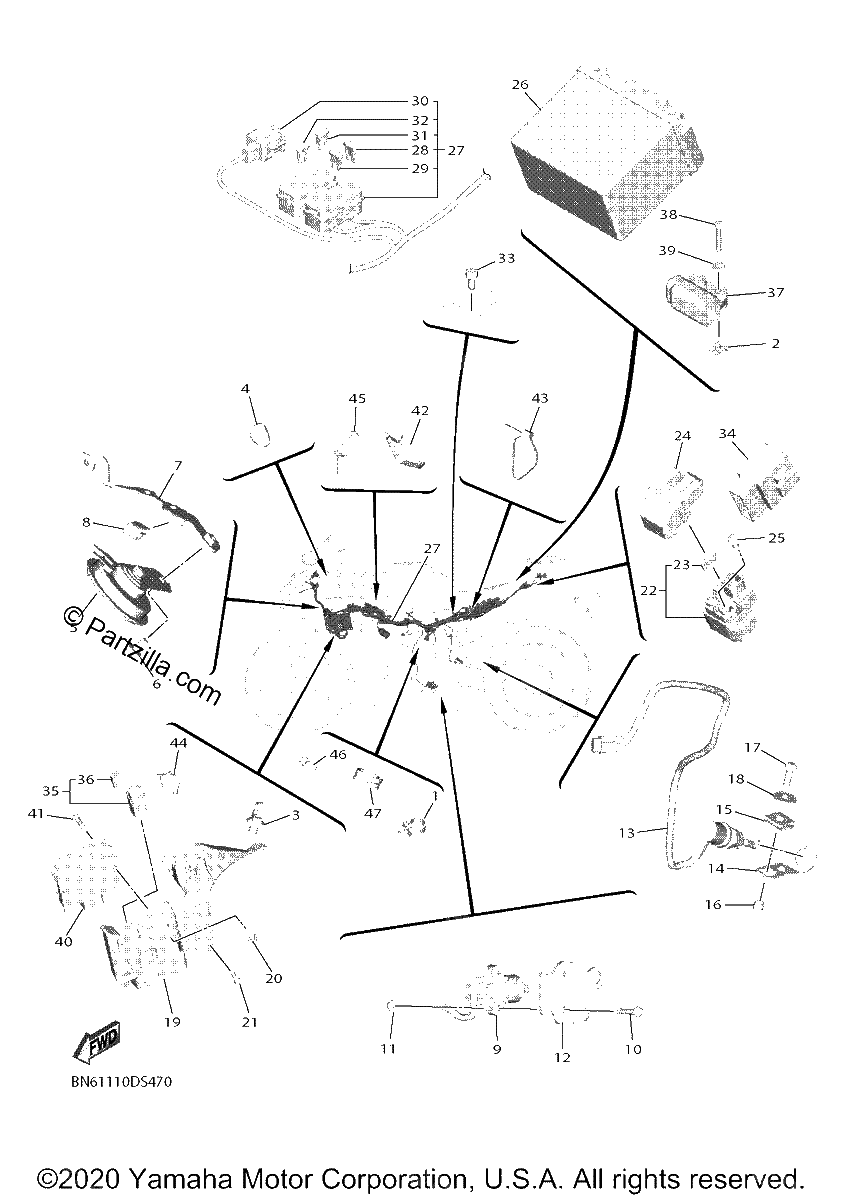

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP
$2.21¢1 104
#2
NUT, SPRING
$6.46¢3 231
#3
Clamp
$1.68¢839
#4
BAND
$4.52¢2 260
#5
HORN
$72.69¢36 346
#6
BLOT, FLANGE DEEP RECESS
$6.82¢3 410
#7
BRACKET, HORN
$29.68¢14 841
#8
Damper
$1.41¢707
#9
SWITCH, SIDE STAND
$111.71¢55 856
#10
BOLT, BUTTON HEAD
$3.68¢1 840
#11
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
#12
BRACKET, SENSOR 1
$33.56¢16 778
#13
STOP SWITCH ASSY
$37.58¢18 791
#14
STAY, STOP SWITCH
$5.27¢2 633
#15
GROMMET
$9.36¢4 681
#16
COLLAR
$8.39¢4 198
#17
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#18
WASHER PLAIN
$0.63¢316
#19
BRACKET 5
$54.81¢27 404
#20
NUT, SPRING
$6.68¢3 341
#21
BOLT, FLANGE DEEP RECESS
$0.28¢138
#22
STARTER RELAY ASSY
$58.28¢29 141
#23
FUSE (30A-BL)
$6.82¢3 410
#24
COVER, LEAD WIRE
$4.45¢2 225
#25
BOLT, FLANGE
$6.87¢3 433
#26
BATTERY YTZ7S(F) - FA
$226.96¢113 482
#27
WIRE HARNESS ASSY
$1645.28¢822 641
#28
FUSE (15A)
$4.08¢2 041
#29
FUSE (10A)
$7.13¢3 565
#30
FUSE (50A)
$15.65¢7 826
#31
FUSE (7.5A-BL)
$6.51¢3 254
#32
FUSE (2A-BL)
$7.75¢3 875
#33
BOLT
$2.05¢1 023
#34
RELAY ASSY (replaces 5VK-81950-40-00)
$65.04¢32 522
#35
RELAY ASSY (1TP-00)
$14.34¢7 170
#36
HOLDER, RELAY
$7.38¢3 691
#37
SENSOR, LEAN ANGLE
$87.63¢43 815
#38
bolt
$1.69¢845
#39
WASHER,PLATE
$7.23¢3 617
#40
RECTIFIER & REGULATOR ASSY
$124.29¢62 146
#41
BOLT, BUTTON HEAD
$6.88¢3 439
#42
BAND
$4.52¢2 260
#43
BAND
$4.52¢2 260
#44
BAND
$4.52¢2 260
#45
CLAMP
$7.30¢3 651
#46
CLAMP
$1.75¢874
#47
Clamp
$7.24¢3 622
