COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

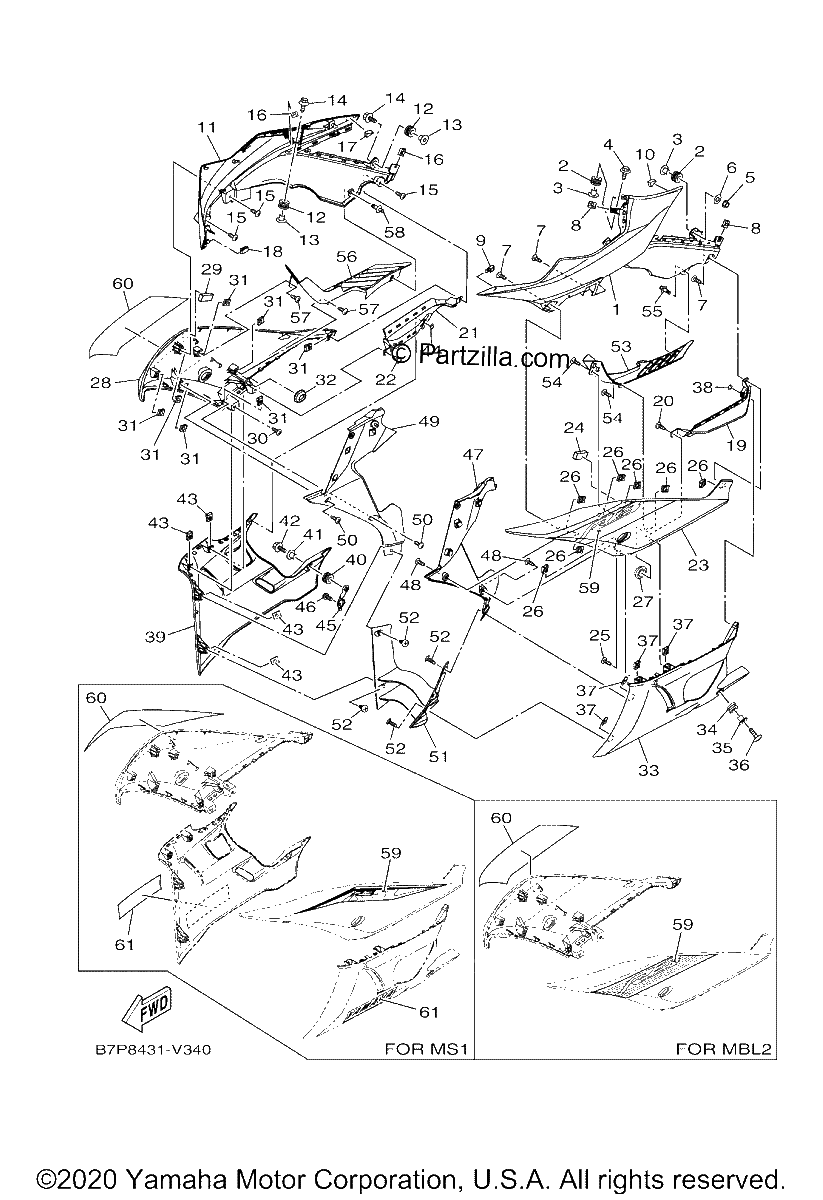

Diagrama de COWLING 1

Repuestos

#1
BS7-F172G-00-P3
PANEL 3
$36.88¢18 438
1
#1
BS7-F172G-00-P0
PANEL 3
$42.55¢21 275
1
#1
BS7-F172G-00-P4
PANEL 3
$55.10¢27 550
1
#2
90480-12808-00
GROMMET
$2.95¢1 475
1
#3
90387-06899-00
COLLAR
$2.94¢1 469
1
#4
90119-06096-00
BOLT,WITH WASHER
$3.67¢1 838
1
#5
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#6
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#7
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#8
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#9
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#10
BS7-F8415-00-00
DAMPER 1
$0.72¢363
1
#11
BS7-F172H-00-P4
PANEL 4
$54.92¢27 463
1
#11
BS7-F172H-00-P3
PANEL 4
$36.88¢18 438
1
#11
BS7-F172H-00-P0
PANEL 4
$43.49¢21 744
1
#12
90480-12808-00
GROMMET
$2.95¢1 475
1
#13
90387-06899-00
COLLAR
$2.94¢1 469
1
#14
90119-06096-00
BOLT,WITH WASHER
$3.67¢1 838
1
#15
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#16
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#17
BS7-F8415-00-00
DAMPER 1
$0.72¢363
1
#18
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#19
BS7-F117V-00-00
COVER 7
$16.54¢8 269
1
#20
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#21
BS7-F117W-00-00
COVER 8
$8.03¢4 013
1
#22
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#23
BS7-F835U-00-P6
PANEL 1
$38.82¢19 412
1
#23
BS7-F835U-00-P3
PANEL 1
$34.98¢17 488
1
#23
BS7-F835U-00-P1
PANEL 1
$29.30¢14 650
1
#24
5YT-24665-00-00
DAMPER
$7.60¢3 800
1
#25
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#26
90183-05042-00
NUT, SPRING
$1.25¢625
1
#27
90480-01821-00
Grommet
$1.41¢706
1
#28
BS7-F835V-00-P6
PANEL 2
$38.82¢19 412
1
#28
BS7-F835V-00-P3
PANEL 2
$34.98¢17 488
1
#28
BS7-F835V-00-P1
PANEL 2
$33.09¢16 544
1
#29
5YT-24665-00-00
DAMPER
$7.60¢3 800
1
#30
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#31
90183-05042-00
NUT, SPRING
$1.25¢625
1
#32
90480-01821-00
Grommet
$1.41¢706
1
#33
BS7-F8385-00-P6
COVER, UNDER
$67.90¢33 950
1
#33
BS7-F8385-00-P1
COVER, UNDER
$102.10¢51 050
1
#33
BS7-F8385-00-P3
COVER, UNDER
$55.79¢27 894
1
#34
90480-12808-00
GROMMET
$2.95¢1 475
1
#35
90387-06899-00
COLLAR
$2.94¢1 469
1
#36
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#37
90183-05042-00
NUT, SPRING
$1.25¢625
1
#38
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#39
BS7-F8395-00-P6
COVER, UNDER 2
$49.70¢24 850
1
#39
BS7-F8395-00-P3
COVER, UNDER 2
$61.46¢30 731
1
#39
BS7-F8395-00-P1
COVER, UNDER 2
$66.78¢33 388
1
#40
90480-12808-00
GROMMET
$2.95¢1 475
1
#41
90387-06899-00
COLLAR
$2.94¢1 469
1
#42
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#43
90183-05042-00
NUT, SPRING
$1.25¢625
1
#44
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#45
BS7-F833E-00-00
BRACKET 8
$20.11¢10 056
1
#46
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#47
BS7-F836K-00-00
PANEL, INNER 1
$13.70¢6 850
1
#48
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#49
BS7-F836L-00-00
PANEL, INNER 2
$10.86¢5 431
1
#50
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#51
BS7-F836M-00-00
PANEL, INNER 3
$27.41¢13 706
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#53
BS7-F837V-00-00
GRILL, AIR OUTLET 1
$17.98¢8 988
1
#54
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#55
90269-06816-00
RIVET
$1.71¢856
1
#56
BS7-F837W-00-00
GRILL, AIR OUTLET 2
$17.25¢8 625
1
#57
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#58
90269-06816-00
RIVET
$1.71¢856
1
#59
B8P-F8398-20-00
GRAPHIC 5
$17.27¢8 638
1
#59
B8P-F8391-20-00
GRAPHIC 1
$10.45¢5 225
1
#59
B8P-F8391-10-00
GRAPHIC 1
$10.86¢5 431
1
#60
B8P-F8399-20-00
GRAPHIC 6
$13.41¢6 706
1
#60
B8P-F8392-20-00
GRAPHIC 2
$12.24¢6 119
1
#60
B8P-F8392-10-00
GRAPHIC 2
$10.86¢5 431
1
#61
1WD-F8328-60-00
EMBLEM (BK61)
$7.91¢3 956
1
