ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

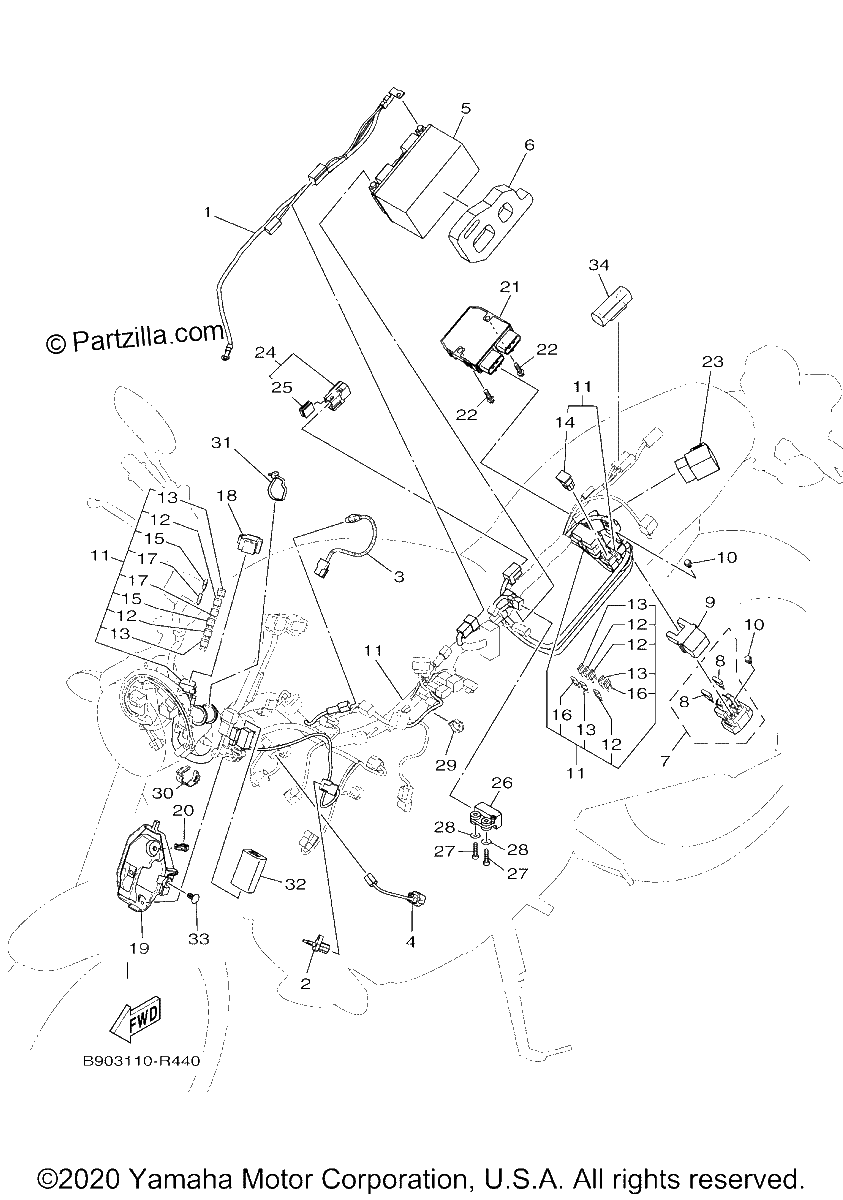

Diagrama de ELECTRICAL 1

Repuestos

#1
BS2-82116-00-00
WIRE, MINUS LEAD
No Disponible
1
#2
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#3
1RC-82309-01-00
WIRE, SUB LEAD
$22.37¢11 184
1
#4
1RC-82509-00-00
WIRE, SUB LEAD
$16.64¢8 320
1
#5
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#6
B90-8246K-00-00
SPACER
$10.72¢5 359
1
#7
5S7-81940-00-00
STARTER RELAY ASSY (RC19-089A)
$108.76¢54 378
1
#8
42X-82151-00-00
FUSE (10A-BL)
$2.43¢1 213
1
#9
5SL-82119-30-00
COVER, LEAD WIRE
$4.66¢2 329
1
#10
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#11
B90-82590-40-00
WIRE HARNESS ASSY
$1202.89¢601 444
1
#12
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#13
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#14
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#15
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#16
5JJ-82151-60-00
FUSE (30A-BL)
$7.01¢3 507
1
#17
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#18
1RC-82544-00-00
CLAMP
$7.03¢3 513
1
#19
1RC-82599-00-00
COVER, CONNECTER
$6.74¢3 370
1
#20
90464-15157-00
CLAMP
$6.75¢3 375
1
#21
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$308.43¢154 215
1
#22
90105-06148-00
Bolt, Flange
$6.82¢3 410
1
#23
5VK-81950-41-00
RELAY ASSY (replaces 5VK-81950-40-00)
$65.04¢32 522
1
#24
1ST-81950-00-00
RELAY ASSY (1ST-00)
$16.38¢8 188
1
#25
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#26
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#27
91312-04020-00
BOLT
$1.61¢805
1
#28
90201-04030-00
WASHER, PLATE
$1.66¢828
1
#29
90464-14010-00
CLAMP
$3.52¢1 759
1
#30
90464-14010-00
CLAMP
$3.52¢1 759
1
#31
3MA-82591-00-00
BAND
$6.95¢3 473
1
#32
1RC-82589-00-00
PROTECTER, WIRE HARNESS
$22.09¢11 046
1
#33
90269-07015-00
RIVET
$1.13¢564
1
#34
2D1-82589-00-00
PROTECTER, WIRE HARNESS
$10.63¢5 313
1
