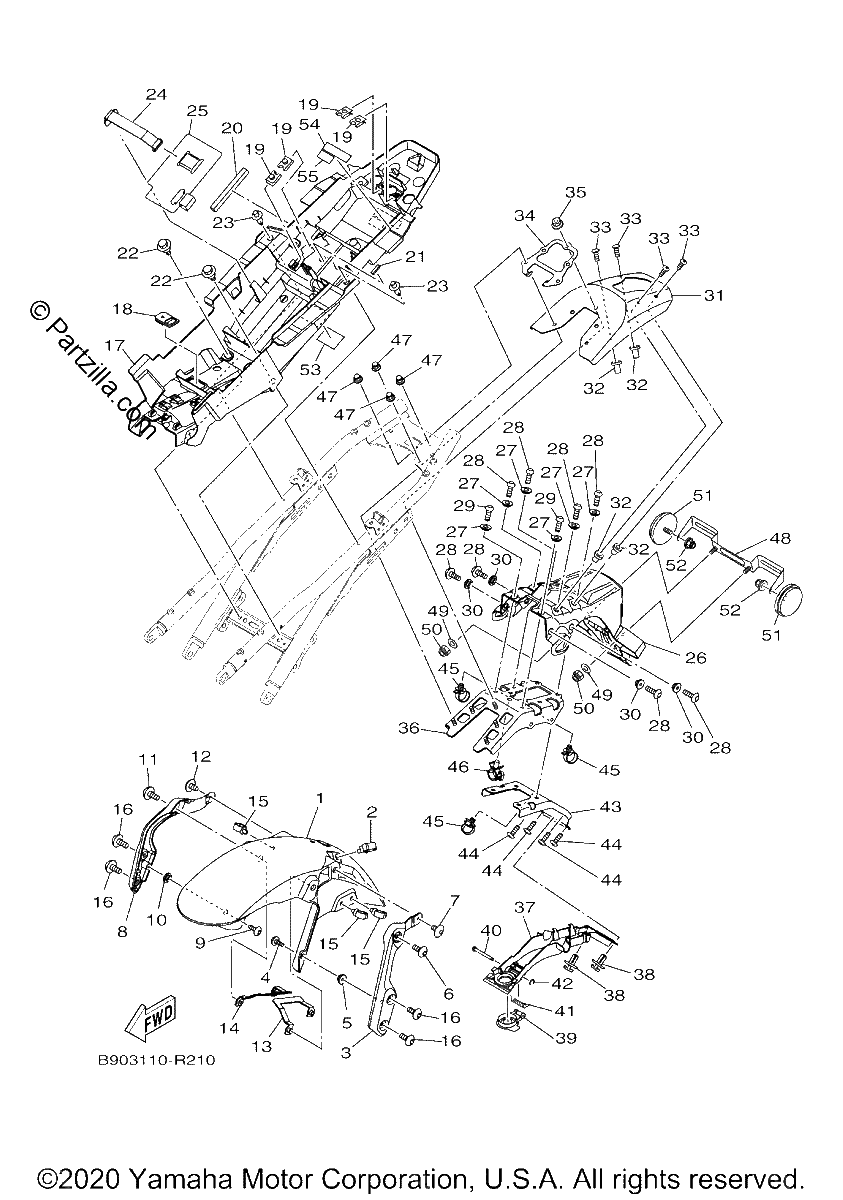

FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$95.00¢47 501
#2
Clamp
$5.93¢2 967
#3
ARM 1
$66.11¢33 057
#4
BOLT, BUTTON HEAD
$3.16¢1 581
#5
COLLAR
$6.87¢3 433
#6
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#7
BOLT, HEXAGON SOCKET HEAD
$4.09¢2 047
#8
ARM 2
$87.00¢43 499
#9
BOLT, BUTTON HEAD
$3.16¢1 581
#10
COLLAR
$6.87¢3 433
#11
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#12
BOLT, HEXAGON SOCKET HEAD
$4.09¢2 047
#13
STAY, FENDER 1
$27.29¢13 645
#14
STAY, FENDER 2
$31.66¢15 830
#15
CLAMP
$7.59¢3 795
#16
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#17
BOX, BATTERY 1
$69.78¢34 891
#18
PLUG, BLIND
$6.70¢3 352
#19
NUT, SPRING
$6.68¢3 341
#20
DAMPER
$6.51¢3 254
#21
DAMPER
$3.48¢1 742
#22
BOLT
$2.98¢1 489
#23
RIVET
$3.68¢1 840
#24
BAND, BATTERY
$7.24¢3 622
#25
FLAP
$7.74¢3 870
#26
GUARD, MUD
$25.60¢12 800
#27
COLLAR
$10.04¢5 020
#28
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#29
BOLT, BUTTON HEAD
$6.82¢3 410
#30
COLLAR
$5.47¢2 737
#31
STAY 2
$355.02¢177 508
#32
NUT
$6.23¢3 117
#33
BOLT
$3.99¢1 995
#34
SPACER
$24.29¢12 144
#35
NUT, FLANGE
$0.86¢431
#36
STAY 1
$63.02¢31 510
#37
COVER, REAR FENDER 2
$13.09¢6 544
#38
RIVET,SPEC'L SHAPE
$6.55¢3 278
#39
CAP, ROTOR
$4.30¢2 151
#40
PIN
$4.94¢2 472
#41
SPRING, TORSION
$2.05¢1 023
#42
CIRCLIP
$7.31¢3 657
#43
STAY, PLATE
$31.52¢15 761
#44
SCREW, ROUND TAPPING
$6.87¢3 433
#45
CLAMP
$1.75¢874
#46
CLAMP
$3.22¢1 610
#47
NUT, CAP
$4.05¢2 024
#48
BRACKET, LICENSE
$43.67¢21 833
#49
WASHER, PLATE
$3.13¢1 564
#50
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#51
REFLECTOR, REAR 1
$28.22¢14 110
#52
NUT, FLANGE
$6.76¢3 381
#53
LABEL, TIRE
$3.32¢1 662
#54
LABEL, CAUTION
$4.54¢2 271
#55
LABEL, CAUTION
$4.90¢2 449
