COWLING 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

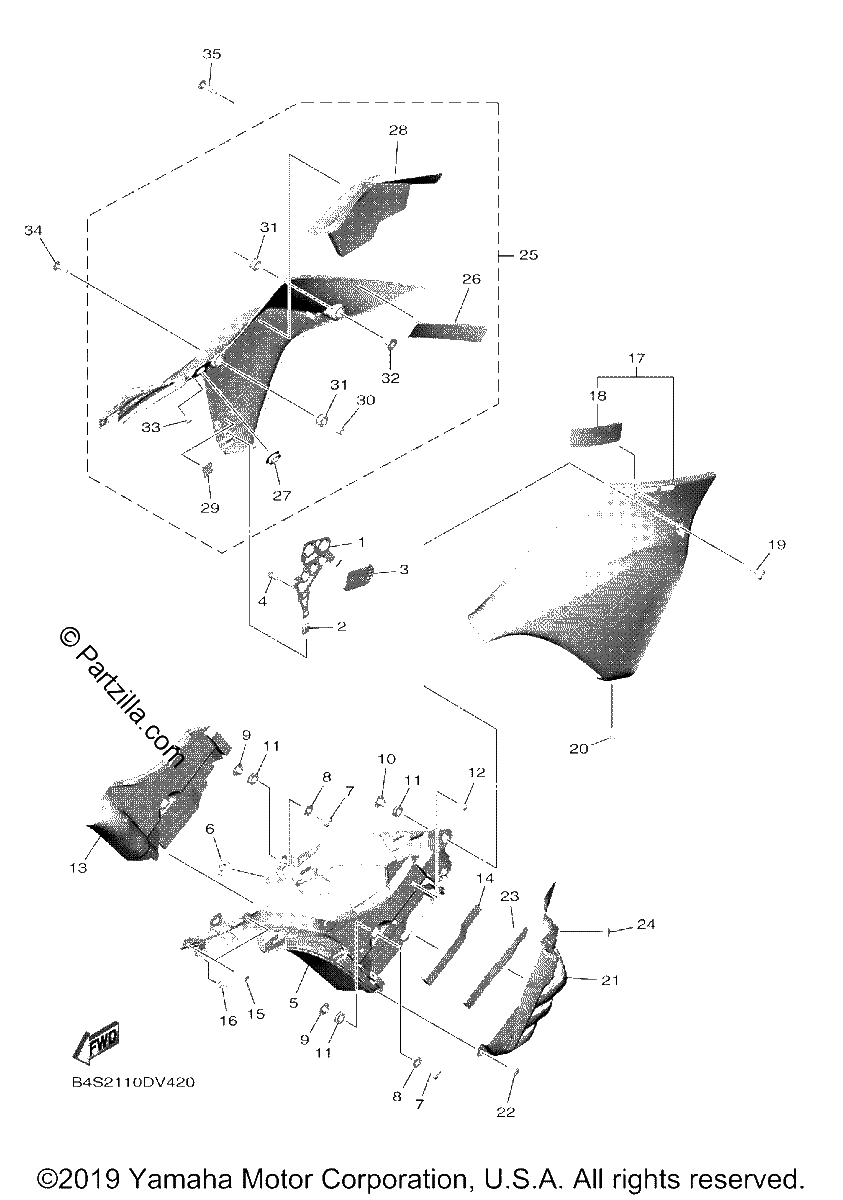

Diagrama de COWLING 3

Repuestos

#1
B3L-2833J-00-00
BRACKET 12
$31.60¢15 801
1
#2
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#3
B67-21488-00-00
Damper
$11.10¢5 549
1
#4
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#5
B3L-2836A-00-00
BRACKET 1
$41.50¢20 752
1
#6
90480-01559-00
Grommet
$5.27¢2 633
1
#7
90149-06302-00
SCREW
$4.70¢2 352
1
#8
90201-06013-00
WASHER, PLATE
$4.28¢2 139
1
#9
90387-06323-00
Collar
$5.16¢2 582
1
#10
90387-067K8-00
COLLAR
$5.69¢2 846
1
#11
90480-13004-00
GROMMET
$6.36¢3 180
1
#12
90338-07180-00
PLUG
$6.22¢3 111
1
#13
B3L-28415-00-00
DAMPER 1
$39.76¢19 878
1
#14
90520-10035-00
DAMPER, PLATE
$2.51¢1 254
1
#15
90269-06008-00
RIVET
$8.10¢4 048
1
#16
90468-040A0-00
CLIP
$6.83¢3 415
1
#17
B3L-Y284M-10-P1
COVER 1
$214.92¢107 462
1
#18
4ML-12465-00-00
DAMPER, RADIATOR
$3.37¢1 685
1
#19
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#20
90269-06018-00
RIVET
$2.05¢1 023
1
#21
B3L-2843J-00-00
COVER 3
$25.30¢12 650
1
#22
90269-06018-00
RIVET
$2.05¢1 023
1
#23
90520-10035-00
DAMPER, PLATE
$2.51¢1 254
1
#24
B3L-21649-00-00
Damper
$0.33¢167
1
#25
B3L-Y284N-10-P1
COVER 2
$214.03¢107 013
1
#26
4ML-12465-00-00
DAMPER, RADIATOR
$3.37¢1 685
1
#27
90480-01559-00
Grommet
$5.27¢2 633
1
#28
2CR-28455-00-00
DAMPER, 4
$5.82¢2 909
1
#29
3TB-28217-00-00
DAMPER 1
$4.45¢2 225
1
#30
90387-06260-00
COLLAR
$6.83¢3 415
1
#31
90480-14003-00
GROMMET
$6.83¢3 415
1
#32
90387-067K8-00
COLLAR
$5.69¢2 846
1
#33
90338-07180-00
PLUG
$6.22¢3 111
1
#34
90149-06302-00
SCREW
$4.70¢2 352
1
#35
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
