CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

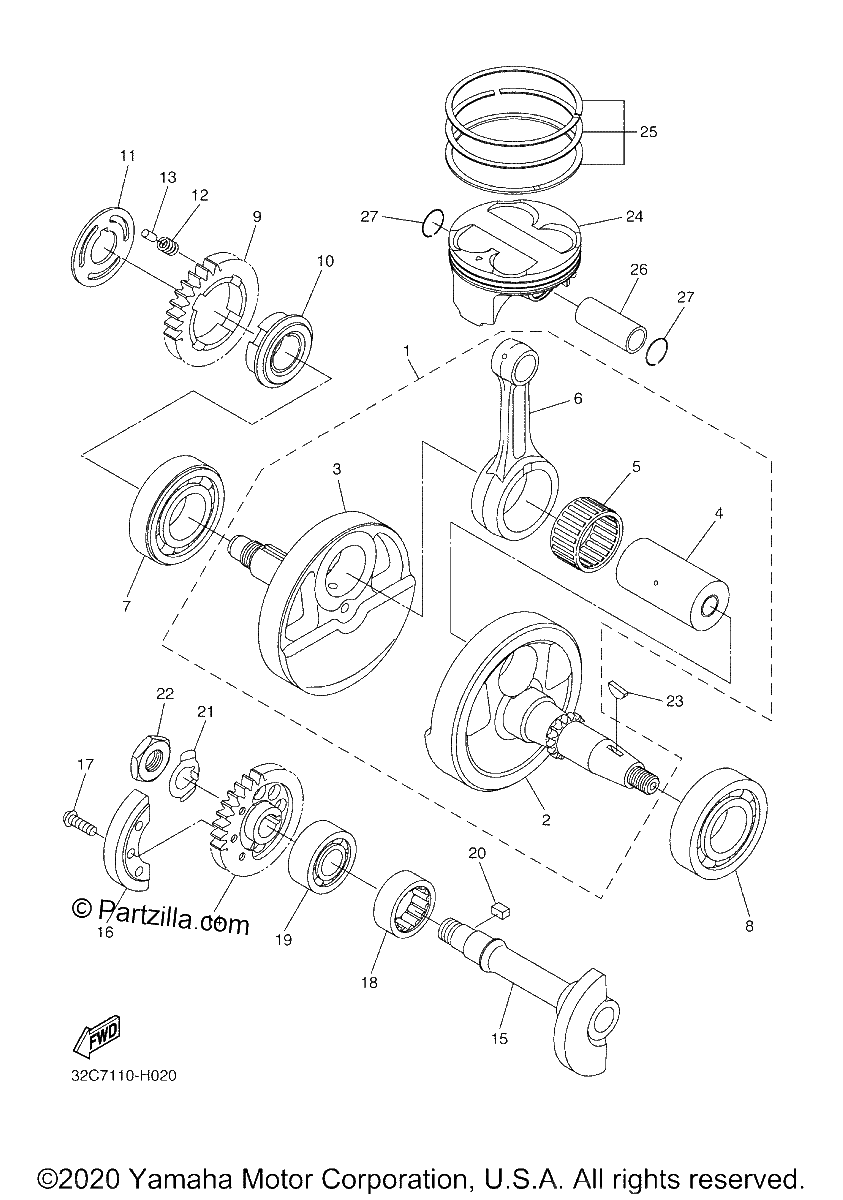

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
3D7-11400-01-00
CRANKSHAFT ASSY
$634.79¢317 394
1
#2
3D7-11412-00-00
CRANK 1
$195.22¢97 612
1
#3
3D7-11422-00-00
CRANK 2
$195.22¢97 612
1
#4
3D7-11681-01-00
PIN, CRANK 1
$85.78¢42 889
1
#5
93310-63257-00
BEARING
$107.84¢53 918
1
#6
3D7-11651-00-00
ROD, CONNECTING
$112.35¢56 177
1
#7
93306-20648-00
BEARING
$87.00¢43 499
1
#8
93306-20657-00
BEARING
$93.17¢46 586
1
#9
3D7-11536-00-00
GEAR, DRIVE
$105.35¢52 676
1
#10
3D7-11496-00-00
BOSS, BUFFER
$81.52¢40 762
1
#11
3D7-11533-00-00
PLATE, ABSORBER
$9.34¢4 669
1
#12
90501-22721-00
SPRING,COMPRESSION
$8.79¢4 393
1
#13
93605-10090-00
PIN,DOWEL
$6.09¢3 048
1
#14
3D7-11531-00-00
GEAR, BALANCE WEIGHT
$134.71¢67 355
1
#15
3D7-11455-00-00
SHAFT 1
$194.73¢97 365
1
#16
3D7-11454-00-00
WEIGHT 1
$47.48¢23 742
1
#17
90149-06068-00
SCREW
$3.67¢1 834
1
#18
93311-62574-00
BEARING
$60.03¢30 015
1
#19
93305-20301-00
BEARING
$135.68¢67 839
1
#20
90282-05065-00
KEY,STRAIGHT (replaces 90282-05013-00)
$8.20¢4 100
1
#21
90215-14003-00
WASHER, LOCK
$7.44¢3 720
1
#22
90170-14171-00
NUT
$7.95¢3 973
1
#23
90280-03006-00
KEY, WOODRUFF
$7.44¢3 720
1
#24
3D7-11631-00-00
PISTON (STD)
$182.71¢91 356
1
#25
5NL-11603-10-00
PISTON RING SET (STD)
$49.59¢24 794
1
#26
4C8-11633-00-00
PIN, PISTON
$39.76¢19 878
1
#27
93450-18157-00
CIRCLIP
$6.82¢3 410
1
