EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

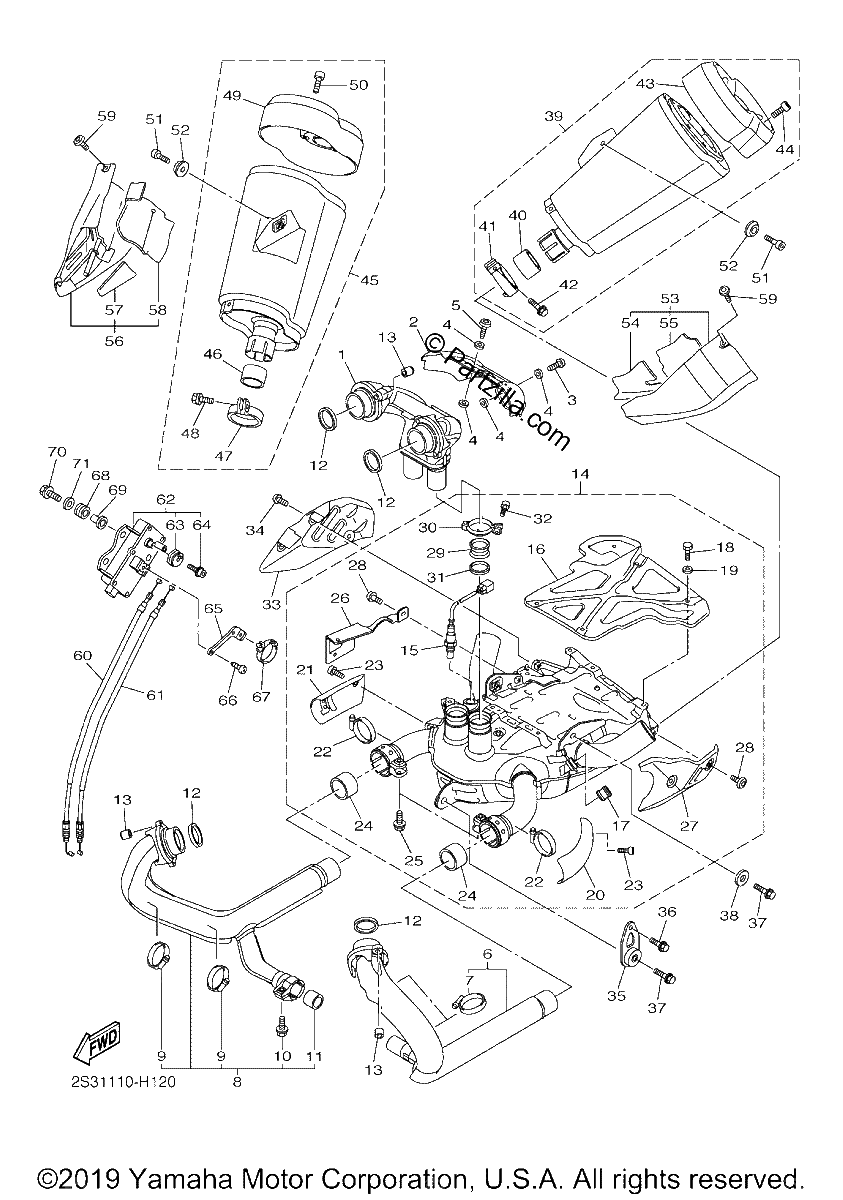

Diagrama de EXHAUST

Repuestos

#1
2S3-14602-01-00
EXHAUST PIPE COMP.
$760.14¢380 069
1
#2
2S3-14624-00-00
COVER, EXHAUST
$320.98¢160 488
1
#3
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#4
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#5
90111-06128-00
BOLT,HEX. SOCKET BUT
$4.09¢2 047
1
#6
2S3-14620-10-00
EXHAUST PIPE ASSY 2
$1171.84¢585 919
1
#7
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#8
2S3-14650-10-00
EXHAUST PIPE ASSY 4
$1461.64¢730 819
1
#9
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#10
95024-08020-00
BOLT,FLANGE (2UJ)
$7.30¢3 651
1
#11
2S3-14714-00-00
GASKET, MUFFLER
$20.86¢10 431
1
#12
2S3-14613-00-00
Gasket, Exhaust Pipe
$10.37¢5 187
1
#13
90179-08442-00
NUT,SPEC'L SHAPE
$6.27¢3 134
1
#14
2S3-14701-50-00
MUFFLER COMP.
$3027.94¢1 513 969
1
#15
2S3-8592A-00-00
Sensor, Oxygen
$330.80¢165 399
1
#16
2S3-1479H-00-00
COVER, 1
$148.86¢74 428
1
#17
2S3-14737-00-00
DAMPER, MUFFLER
$24.99¢12 495
1
#18
97013-06012-00
BOLT (661)
$5.16¢2 582
1
#19
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#20
2S3-1479J-10-00
COVER 2
$190.70¢95 352
1
#21
2S3-1479K-10-00
COVER, 3
$177.80¢88 901
1
#22
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#23
91314-06010-00
bolt
$2.97¢1 483
1
#24
5YU-14755-10-00
GASKET, SILENCER
$28.91¢14 455
1
#25
95024-08040-00
Bolt, Flange
$6.75¢3 375
1
#26
2S3-1479L-00-00
COVER 4
$53.57¢26 783
1
#27
2S3-14718-00-00
PROTECTOR, MUFFLER 1
$81.75¢40 877
1
#28
90111-06101-00
BOLT,HEX. SOCKET BUT
$6.89¢3 444
1
#29
2S3-14618-00-00
RING, STOPPER
$33.68¢16 842
1
#30
2S3-14725-00-00
BAND, MUFFLER
$85.23¢42 613
1
#31
2S3-14623-00-00
Gasket, Exhaust Pipe
$13.48¢6 739
1
#32
90110-06344-00
BOLT, HEXAGON SOCKET
$2.10¢1 052
1
#33
2S3-14826-00-00
PROTECTOR, EXHAUST
$75.49¢37 743
1
#34
90111-06101-00
BOLT,HEX. SOCKET BUT
$6.89¢3 444
1
#35
2S3-2144F-00-00
STAY, MUFFLER 3
$68.39¢34 195
1
#36
95024-08020-00
BOLT,FLANGE (2UJ)
$7.30¢3 651
1
#37
95024-08035-00
BOLT,FLANGE (3EF)
$6.75¢3 375
1
#38
90201-087G2-00
WASHER, PLATE
$3.40¢1 702
1
#39
2S3-14710-21-00
MUFFLER ASSY 1
$1422.54¢711 269
1
#40
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#41
3D8-14715-00-00
BAND, MUFFLER
$39.92¢19 958
1
#42
95024-08035-00
BOLT,FLANGE (3EF)
$6.75¢3 375
1
#43
2S3-14787-11-00
CAP, SILENCER
$267.32¢133 659
1
#44
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#45
2S3-14720-21-00
MUFFLER ASSY 2
$1719.24¢859 619
1
#46
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#47
5VY-14715-00-00
BAND, MUFFLER
$43.75¢21 873
1
#48
95024-08035-00
BOLT,FLANGE (3EF)
$6.75¢3 375
1
#49
2S3-14787-11-00
CAP, SILENCER
$267.32¢133 659
1
#50
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#51
91314-08040-00
BOLT (3JP)
$5.75¢2 875
1
#52
2S3-27417-00-00
WASHER, FOOTREST
$21.47¢10 735
1
#53
2S3-1473A-10-00
BODY,3-1
$401.48¢200 738
1
#54
2S3-1475P-00-00
Seat
$41.64¢20 821
1
#55
2S3-1476P-00-00
Seat
$41.64¢20 821
1
#56
2S3-1474A-10-00
BODY,4-1
$458.98¢229 488
1
#57
2S3-1477P-00-00
Seat
$41.64¢20 821
1
#58
2S3-1478P-00-00
Seat
$25.82¢12 909
1
#59
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
#60
2S3-1133E-00-00
CABLE, PULLEY 1
$67.88¢33 942
1
#61
2S3-1133F-00-00
CABLE, PULLEY 2
$68.02¢34 011
1
#62
2C0-85820-00-00
SERVO MOTOR ASSY
$493.25¢246 623
1
#63
2C0-85821-00-00
Pulley, Drive
$8.21¢4 105
1
#64
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#65
2S3-21637-00-00
CLAMP, WIRE
$6.09¢3 048
1
#66
97780-50514-00
SCREW,TAPPING (replaces 97702-50514-00)
$4.20¢2 099
1
#67
90464-07209-00
Clamp
$1.75¢874
1
#68
90480-14005-00
Grommet
$3.68¢1 840
1
#69
90387-06158-00
COLLAR
$6.75¢3 375
1
#70
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#71
90201-06M31-00
WASHER,PLATE
$3.29¢1 644
1
