OIL CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

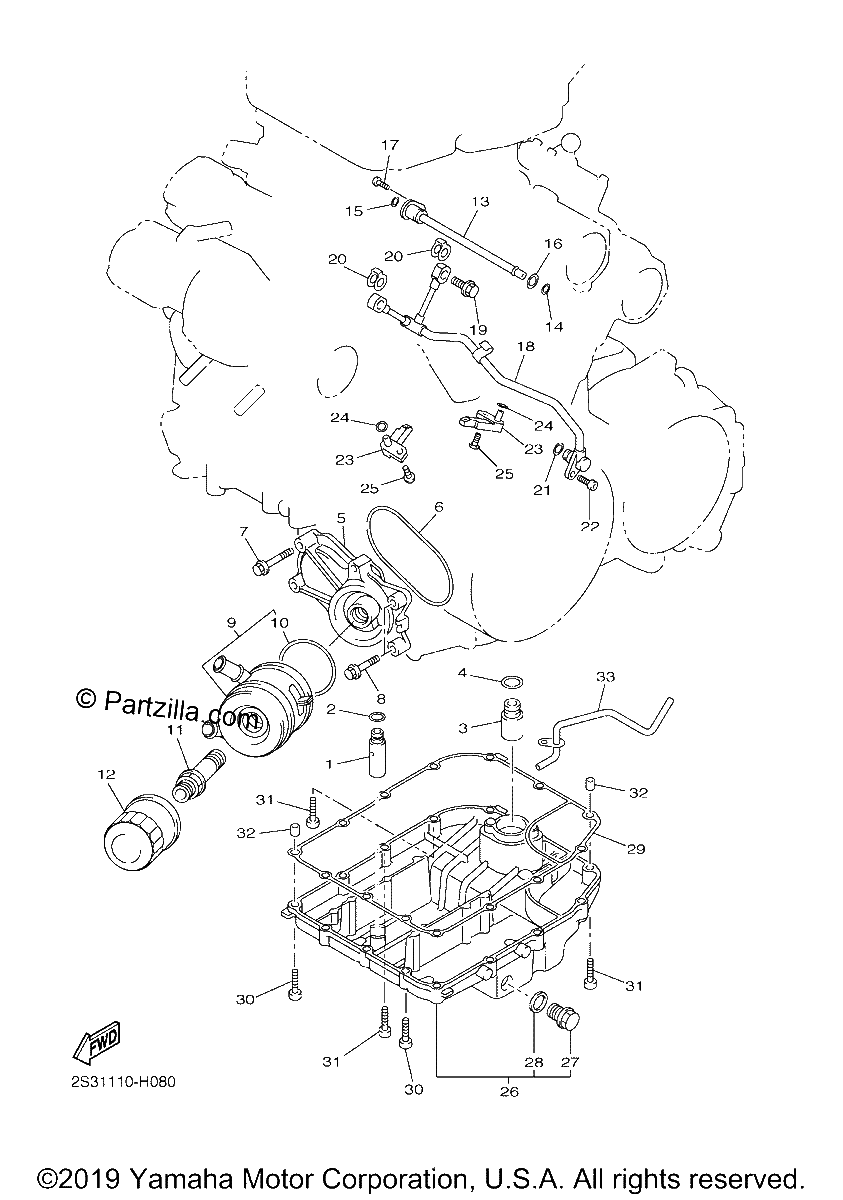

Diagrama de OIL CLEANER

Repuestos

#1
2C0-13490-00-00
RELIEF VALVE ASSY
$108.34¢54 171
1
#2
93210-15566-00
O-RING
$6.32¢3 162
1
#3
2S3-15189-00-00
PLUG
$26.76¢13 380
1
#4
93210-15566-00
O-RING
$6.32¢3 162
1
#5
2S3-13461-00-00
PLATE, ADAPTOR
$132.39¢66 194
1
#6
2S3-13016-00-00
O-Ring
$13.59¢6 797
1
#7
90105-06129-00
BOLT, FLANGE
$4.98¢2 490
1
#8
95812-06030-00
BOLT, FLANGE
$1.82¢909
1
#9
2S3-13470-00-00
OIL COOLER ASSY
$454.22¢227 108
1
#10
5JW-13473-00-00
O-Ring
$39.87¢19 935
1
#11
90401-20006-00
BOLT, union
$56.69¢28 347
1
#12
5GH-13440-71-00
ELEMENT ASSY, OIL CL (replaces 5GH-13440-30-00)
$14.79¢7 394
1
#13
2S3-13171-00-00
PIPE, DELIVERY 2
$59.66¢29 831
1
#14
93210-06667-00
O-RING
$6.36¢3 180
1
#15
93210-09525-00
O-Ring
$5.16¢2 582
1
#16
93210-12010-00
O-Ring
$7.38¢3 691
1
#17
90149-06158-00
SCREW
$6.96¢3 479
1
#18
2S3-13181-00-00
PIPE, DELIVERY 3
$278.60¢139 300
1
#19
90401-10106-00
BOLT,UNION
$2.75¢1 374
1
#20
2S3-13475-00-00
Gasket
$8.56¢4 278
1
#21
93210-10001-00
O-RING
$1.41¢707
1
#22
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#23
2S3-15155-00-00
NOZZLE 3
$54.69¢27 347
1
#24
93210-04001-00
O-Ring
$2.40¢1 202
1
#25
90149-06082-00
SCREW
$6.75¢3 375
1
#26
2S3-13400-00-00
STRAINER COVER ASSY
$303.29¢151 645
1
#27
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#28
214-11198-01-00
GASKET
$2.97¢1 483
1
#29
2S3-13414-00-00
GASKET, STRAINER COV
$32.98¢16 491
1
#30
91312-06030-00
BOLT, HEXAGON SOCKET HEAD
$3.62¢1 811
1
#31
90110-06246-00
BOLT
$3.62¢1 811
1
#32
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#33
2S3-13191-00-00
PIPE, DELIVERY 4
$16.84¢8 418
1
