RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

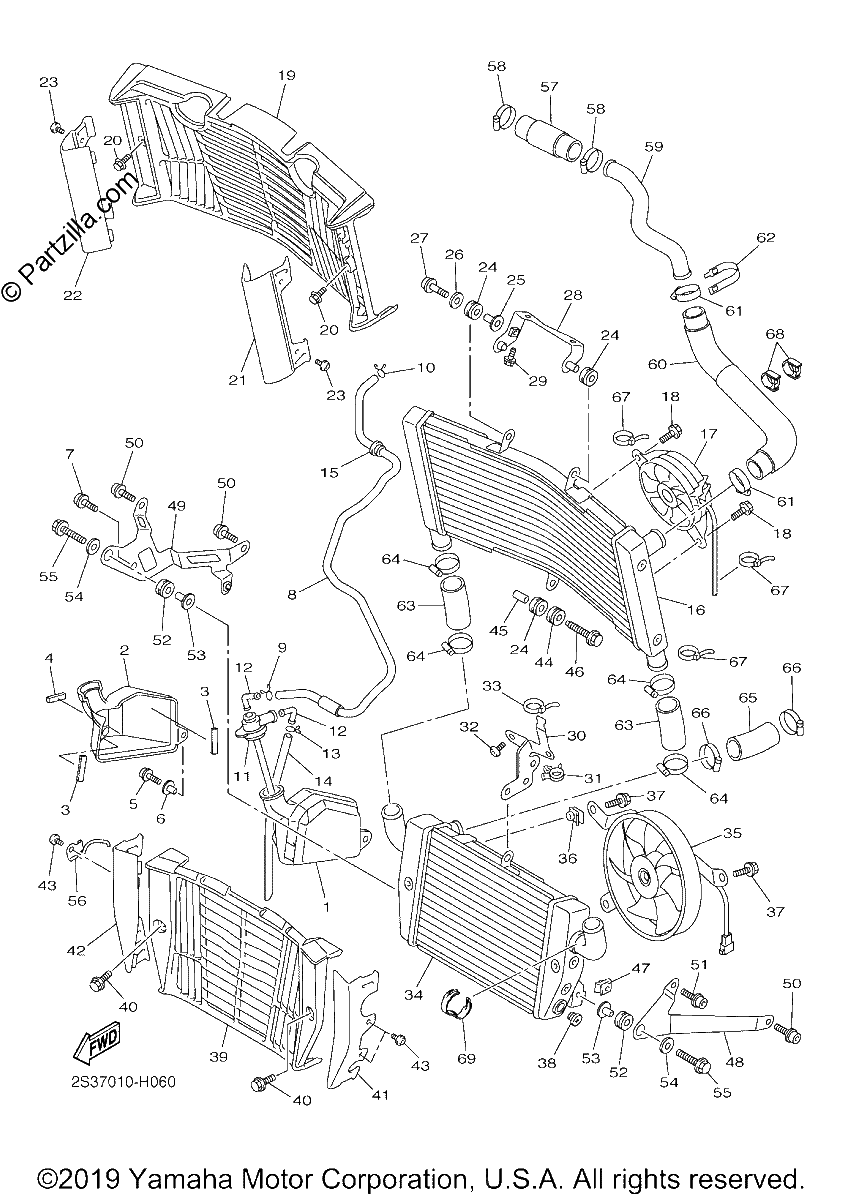

Diagrama de RADIATOR HOSE

Repuestos

#1
2S3-21871-00-00
TANK, RECOVERY
$59.71¢29 856
1
#2
2S3-2176E-00-00
PLATE
$28.82¢14 413
1
#3
5SL-21746-00-00
DAMPER
$3.79¢1 894
1
#4
5DM-28371-00-00
DAMPER
$6.45¢3 225
1
#5
91314-06014-00
BOLT, HEXAGON SOCKET HEAD
$4.20¢2 100
1
#6
90387-06170-00
COLLAR
$7.43¢3 713
1
#7
90110-06302-00
BOLT, HEXAGON SOCKET
$3.15¢1 575
1
#8
2S3-21816-00-00
PIPE 1
$23.81¢11 906
1
#9
90467-090A2-00
Clip
$2.97¢1 487
1
#10
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#11
2C0-21875-00-00
CAP
$17.01¢8 506
1
#12
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#13
90467-08021-00
CLIP
$7.34¢3 669
1
#14
90445-08035-00
HOSE (replaces 90445-08020-00)
$13.89¢6 944
1
#15
90480-22263-00
GROMMET
$4.66¢2 331
1
#16
2S3-12461-09-00
RADIATOR COMP
$638.86¢319 431
1
#17
2S3-12405-10-00
BLOWER ASSY
$250.34¢125 169
1
#18
2S3-12675-00-00
BOLT, BLOWER HOLDING
$7.86¢3 931
1
#19
2S3-1246H-00-00
COVER 5
$103.50¢51 750
1
#20
90119-06117-00
BOLT, WITH WASHER
$4.45¢2 225
1
#21
2S3-1246A-10-00
COVER 1
$84.09¢42 044
1
#22
2S3-1246E-10-00
COVER 2
$95.56¢47 781
1
#23
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#24
90480-15363-00
GROMMET
$7.34¢3 669
1
#25
90387-06039-00
COLLAR
$8.55¢4 275
1
#26
90201-063J2-00
WASHER, PLATE
$5.30¢2 650
1
#27
90109-06031-00
bolt
$2.29¢1 144
1
#28
2S3-2116A-00-00
STAY 1
$29.63¢14 813
1
#29
90110-06302-00
BOLT, HEXAGON SOCKET
$3.15¢1 575
1
#30
2S3-12464-00-00
STAY, RADIATOR
$25.38¢12 688
1
#31
90464-18246-00
CLAMP
$1.96¢981
1
#32
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#33
90464-16061-00
BAND
$8.35¢4 175
1
#34
2S3-12461-19-00
RADIATOR COMP
$581.25¢290 625
1
#35
2S3-12405-00-00
BLOWER ASSY
$326.65¢163 325
1
#36
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#37
5GJ-12675-00-00
BOLT, BLOWER HOLDING
$7.94¢3 969
1
#38
5VU-12478-00-00
COCK, DRAIN
$6.14¢3 069
1
#39
2S3-1246J-00-00
COVER 6
$57.69¢28 844
1
#40
90119-06117-00
BOLT, WITH WASHER
$4.45¢2 225
1
#41
2S3-1246F-10-00
COVER 3
$81.85¢40 925
1
#42
2S3-1246G-10-00
COVER 4
$80.34¢40 169
1
#43
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#44
90480-15363-00
GROMMET
$7.34¢3 669
1
#45
90387-06086-00
COLLAR
$4.66¢2 331
1
#46
90119-06247-00
BOLT, WITH WASHER
$3.98¢1 988
1
#47
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#48
2S3-2172E-00-00
STAY, SIDE COVER 1
$58.71¢29 356
1
#49
2S3-2174E-00-00
STAY, SIDE COVER 2
$42.02¢21 013
1
#50
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#51
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#52
90480-15363-00
GROMMET
$7.34¢3 669
1
#53
90387-06039-00
COLLAR
$8.55¢4 275
1
#54
90201-063J2-00
WASHER, PLATE
$5.30¢2 650
1
#55
90109-06031-00
bolt
$2.29¢1 144
1
#56
2S3-2171H-00-00
GUIDE
$18.52¢9 263
1
#57
2S3-12552-00-00
HOSE 8
$18.61¢9 306
1
#58
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#59
2S3-12476-00-00
PIPE 6
$64.31¢32 156
1
#60
2S3-12576-00-00
HOSE 1
$63.16¢31 581
1
#61
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#62
5GV-1246E-00-00
COVER 2
$4.80¢2 400
1
#63
2S3-12577-00-00
HOSE 2
$20.80¢10 400
1
#64
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#65
2S3-12578-00-00
HOSE 3
$8.34¢4 169
1
#66
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#67
90464-16061-00
BAND
$8.35¢4 175
1
#68
90464-12013-00
Clamp
$7.84¢3 919
1
#69
90464-28003-00
CLAMP
$3.24¢1 619
1
