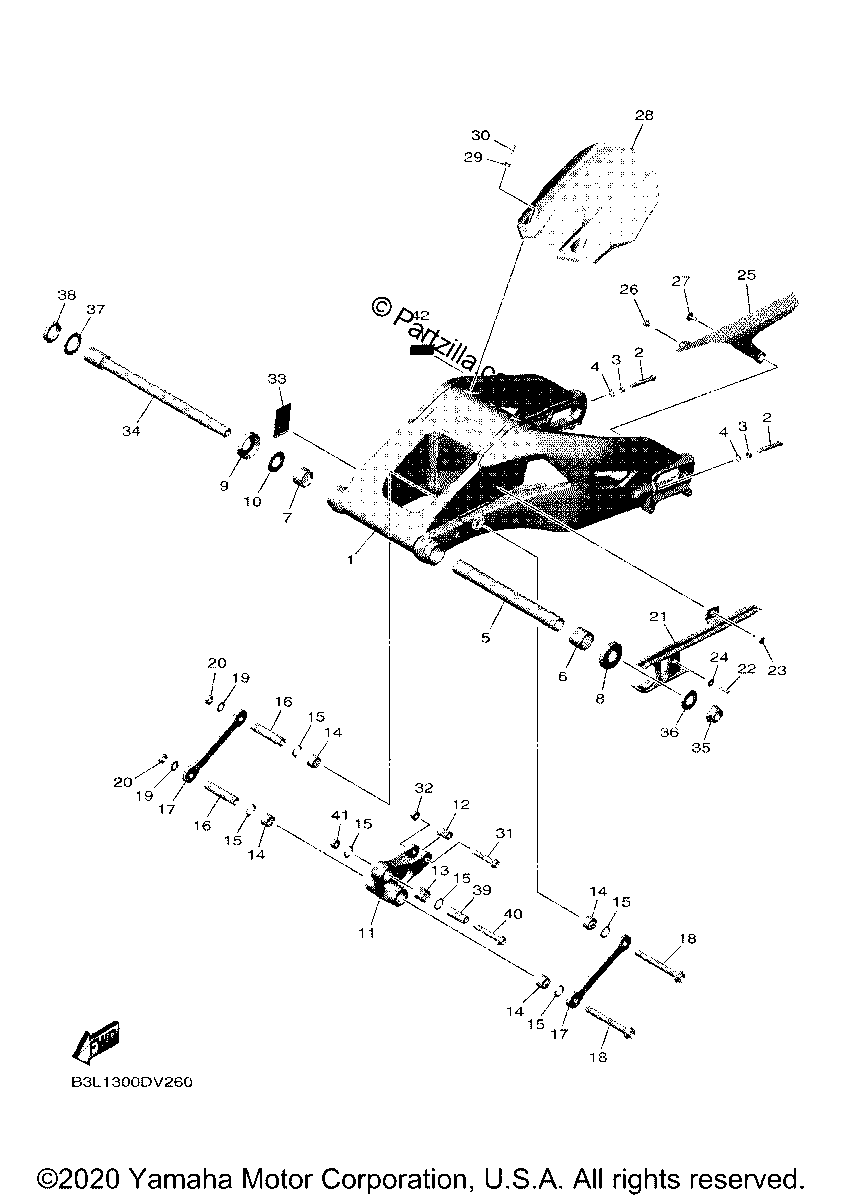

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$2648.78¢1 324 388
#2
BOLT
$3.57¢1 787
#3
NUT (6L2)
$8.09¢4 044
#4
WASHER, PLATE
$7.43¢3 713
#5
BUSH
$67.14¢33 569
#6
BEARING
$58.90¢29 450
#7
BEARING
$40.65¢20 325
#8
COVER, THRUST 1
$15.80¢7 900
#9
COVER, THRUST 1
$31.29¢15 644
#10
WASHER, PLATE
$9.05¢4 525
#11
ARM, RELAY
$129.16¢64 581
#12
COLLAR
$21.18¢10 588
#13
BEARING
$39.89¢19 944
#14
BEARING
$41.35¢20 675
#15
OIL SEAL
$8.03¢4 013
#16
COLLAR
$23.38¢11 688
#17
ARM 1
$51.66¢25 831
#18
BOLT
$25.94¢12 969
#19
WASHER (replaces 92902-12600-00)
$1.46¢731
#20
NUT, SELF-LOCKING
$8.25¢4 125
#21
SEAL, GUARD (replaces 2CR-22151-00-00)
$45.48¢22 738
#22
BOLT, BUTTON HEAD
$7.41¢3 706
#23
RIVET
$4.00¢2 000
#24
COLLAR
$5.95¢2 975
#25
CASE, CHAIN
$35.92¢17 963
#26
RIVET
$4.00¢2 000
#27
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#28
REAR FENDER COMP.
$18.24¢9 119
#29
SPACER
$7.94¢3 969
#30
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
#31
BOLT, FLANGE
$23.38¢11 688
#32
NUT, U FLANGE
$2.73¢1 363
#33
SEAL
$6.61¢3 306
#34
SHAFT, PIVOT
$104.03¢52 013
#35
NUT, SELF-LOCKING
$34.51¢17 256
#36
WASHER, PLATE
$11.17¢5 587
#37
WASHER, PLATE
$11.81¢5 906
#38
NUT
$20.49¢10 244
#39
COLLAR
$20.80¢10 400
#40
BOLT
$17.35¢8 675
#41
NUT, U FLANGE
$2.73¢1 363
#42
LABEL, TIRE
$1.95¢975
