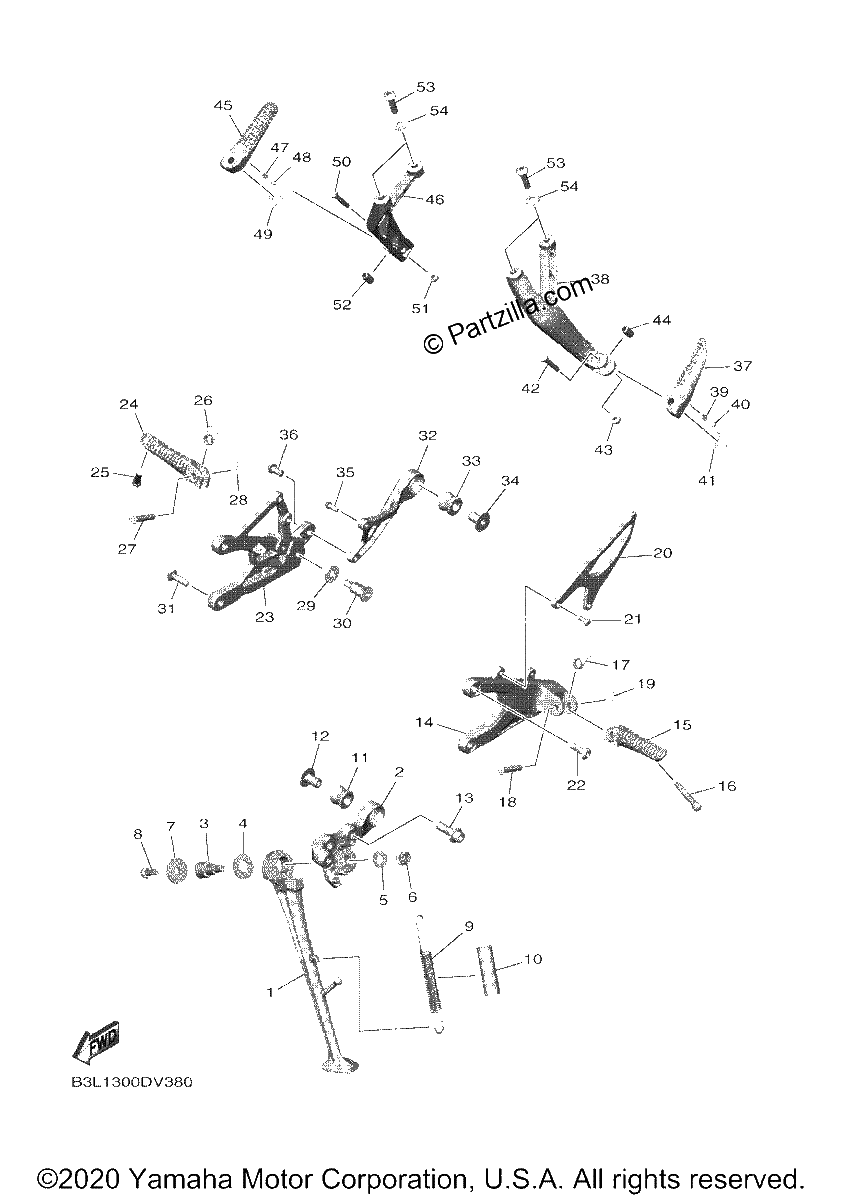

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$178.81¢89 406
#2
BRACKET, side stand
$189.40¢94 700
#3
GUIDE, SIDE STAND
$42.14¢21 069
#4
WASHER, PLATE
$5.95¢2 975
#5
WASHER, plate
$4.25¢2 125
#6
NUT, U FLANGE
$2.73¢1 363
#7
WASHER, PLATE
$5.84¢2 919
#8
bolt
$3.01¢1 506
#9
SPRING, TENSION
$15.79¢7 894
#10
HOSE (L60)
$6.10¢3 050
#11
DAMPER, MUFFLER
$14.65¢7 325
#12
COLLAR
$10.14¢5 069
#13
BOLT, HEXAGON SOCKET
$11.54¢5 769
#14
BRACKET 2
$76.08¢38 038
#15
FOOTREST
$82.26¢41 131
#16
BOLT
$6.14¢3 069
#17
SPRING, TORSION
$7.35¢3 675
#18
PIN
$4.65¢2 325
#19
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#20
PLATE 1
$47.54¢23 769
#21
BOLT, BUTTON HEAD
$2.44¢1 219
#22
BOLT
$2.26¢1 131
#23
BRACKET 3
$70.92¢35 463
#24
FOOTREST
$82.26¢41 131
#25
BOLT
$6.14¢3 069
#26
SPRING, TORSION
$8.80¢4 400
#27
PIN
$4.65¢2 325
#28
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#29
WASHER, PLATE
$6.75¢3 375
#30
BOLT
$23.21¢11 606
#31
BOLT
$2.26¢1 131
#32
BRACKET 3
$63.35¢31 675
#33
DAMPER, MUFFLER
$14.65¢7 325
#34
COLLAR
$10.14¢5 069
#35
BOLT, BUTTON HEAD
$3.33¢1 663
#36
BOLT, BUTTON HEAD
$5.61¢2 806
#37
FOOTREST, REAR 1
$13.77¢6 887
#38
BRACKET 4
$75.21¢37 606
#39
SPRING, COMPRESSION
$3.81¢1 906
#40
BALL
$7.46¢3 731
#41
WASHER, special
$7.03¢3 513
#42
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.82¢1 412
#43
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#44
Collar
$15.88¢7 938
#45
FOOTREST, REAR 2
$13.77¢6 887
#46
BRACKET 5
$69.05¢34 525
#47
SPRING, COMPRESSION
$3.81¢1 906
#48
BALL
$7.46¢3 731
#49
WASHER, special
$7.03¢3 513
#50
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.82¢1 412
#51
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#52
Collar
$15.88¢7 938
#53
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
#54
WASHER, FOOTREST
$12.14¢6 069
