SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

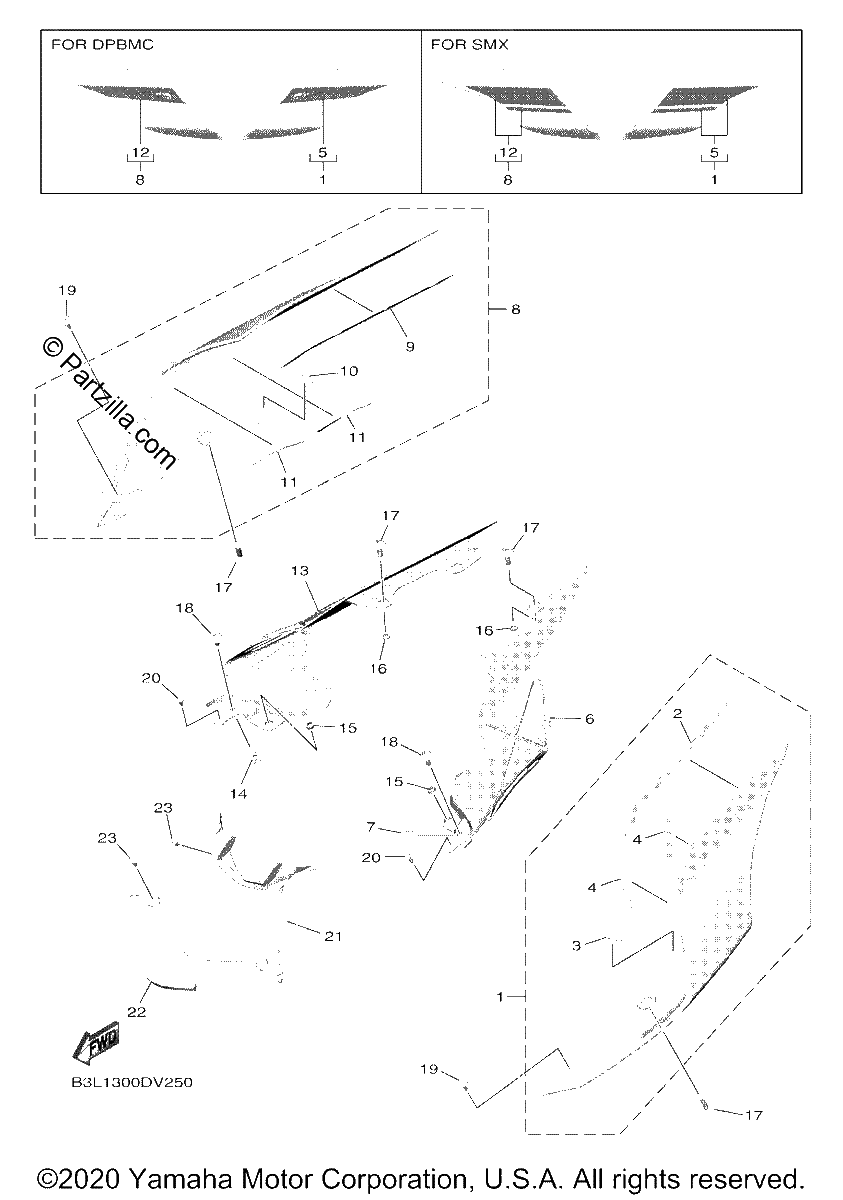

Diagrama de SIDE COVER

Repuestos

#1
2CR-W2171-E1-P7
COVER, SIDE 1
$174.53¢87 263
1
#1
2CR-W2171-D1-P8
COVER, SIDE 1
$176.19¢88 094
1
#2
2CR-2173T-01-00
TAPE 1
$8.86¢4 431
1
#3
2CR-2173R-01-00
TAPE 3
$2.26¢1 131
1
#4
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#5
B3L-2173E-10-00
GRAPHIC 1
$18.09¢9 044
1
#5
B3L-2173E-00-00
GRAPHIC 1
$16.96¢8 481
1
#6
2CR-21731-00-00
COVER, SIDE 3
$31.19¢15 594
1
#7
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#8
2CR-W2172-D1-P8
SIDE COVER 2
$159.49¢79 744
1
#8
2CR-W2172-E1-P7
SIDE COVER 2
$176.19¢88 094
1
#9
2CR-2173U-01-00
TAPE 2
$11.51¢5 756
1
#10
2CR-2173R-01-00
TAPE 3
$2.26¢1 131
1
#11
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#12
B3L-2173F-00-00
GRAPHIC 2
$17.54¢8 769
1
#12
B3L-2173F-10-00
GRAPHIC 2
$18.20¢9 100
1
#13
2CR-21741-00-00
COVER, SIDE 4
$28.21¢14 106
1
#14
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#15
90387-06106-00
COLLAR
$6.45¢3 225
1
#16
90387-06069-00
COLLAR
$7.91¢3 956
1
#17
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.91¢2 956
1
#18
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#19
90269-06001-00
RIVET
$6.45¢3 225
1
#20
90269-05005-00
RIVET
$3.57¢1 787
1
#21
2CR-2171E-00-00
COVER, SIDE 5
$38.65¢19 325
1
#22
4C8-21747-00-00
DAMPER
$7.08¢3 538
1
#23
90269-05001-00
RIVET
$2.71¢1 356
1
