ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

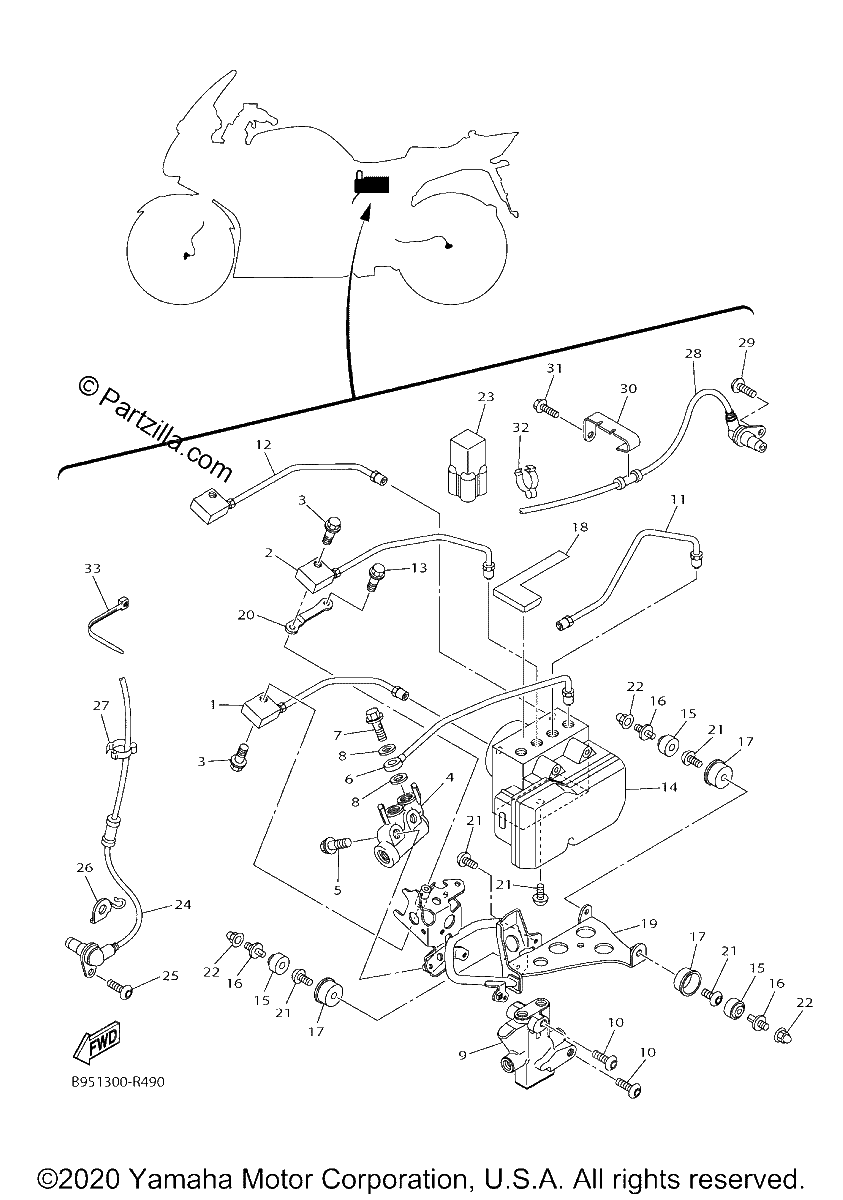

Diagrama de ELECTRICAL 3

Repuestos

#1
3P6-25871-10-00
PIPE, BRAKE
$51.10¢25 550
1
#2
3P6-25882-20-00
PIPE, BRAKE 2
$57.88¢28 938
1
#3
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#4
3P6-25940-00-00
METERING VALVE ASSY
$305.56¢152 781
1
#5
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.65¢2 325
1
#6
3P6-2588A-10-00
PIPE, BRAKE 4
$57.88¢28 938
1
#7
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#8
90430-10005-00
GASKET
$8.39¢4 194
1
#9
3P6-25884-00-00
VALVE, PROPORTIONING
$163.58¢81 788
1
#10
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#11
3P6-2588B-01-00
PIPE, BRAKE 5
$12.09¢6 044
1
#12
3P6-25883-20-00
PIPE, BRAKE 3
$57.88¢28 938
1
#13
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#14
1MC-85930-09-00
HYDRAULIC UNIT ASSY
$1731.07¢865 537
1
#15
5CG-85113-00-00
DAMPER
$4.16¢2 081
1
#16
5CG-2535E-00-00
BOLT
$4.35¢2 175
1
#17
3P6-85916-00-00
CAP, DAMPER
$4.90¢2 450
1
#18
3P6-2117G-00-00
PROTECTOR
$19.07¢9 538
1
#19
1MD-2175T-00-00
BRACKET 1
$253.82¢126 913
1
#20
3P6-2172E-00-00
STAY, SIDE COVER 1
No Disponible
1
#21
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#22
90176-08005-00
NUT, CROWN
$2.44¢1 219
1
#23
3YA-82378-00-00
SLEEVE
$12.05¢6 025
1
#24
1MD-85970-00-00
WHEEL SENSOR ASSY, FRONT
$153.64¢76 819
1
#25
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#26
1MD-23317-00-00
HOLDER, CABLE
$32.73¢16 363
1
#27
90464-14003-00
CLAMP
$39.96¢19 981
1
#28
3P6-85980-10-00
WHEEL SENSOR ASSY, REAR
$199.34¢99 669
1
#29
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#30
3P6-86159-00-00
HOLDER, WIRE
$21.70¢10 850
1
#31
90105-05014-00
BOLT, FLANGE
$2.64¢1 319
1
#32
90464-12013-00
Clamp
$7.84¢3 919
1
#33
90465-10098-00
CLAMP
$2.78¢1 388
1
