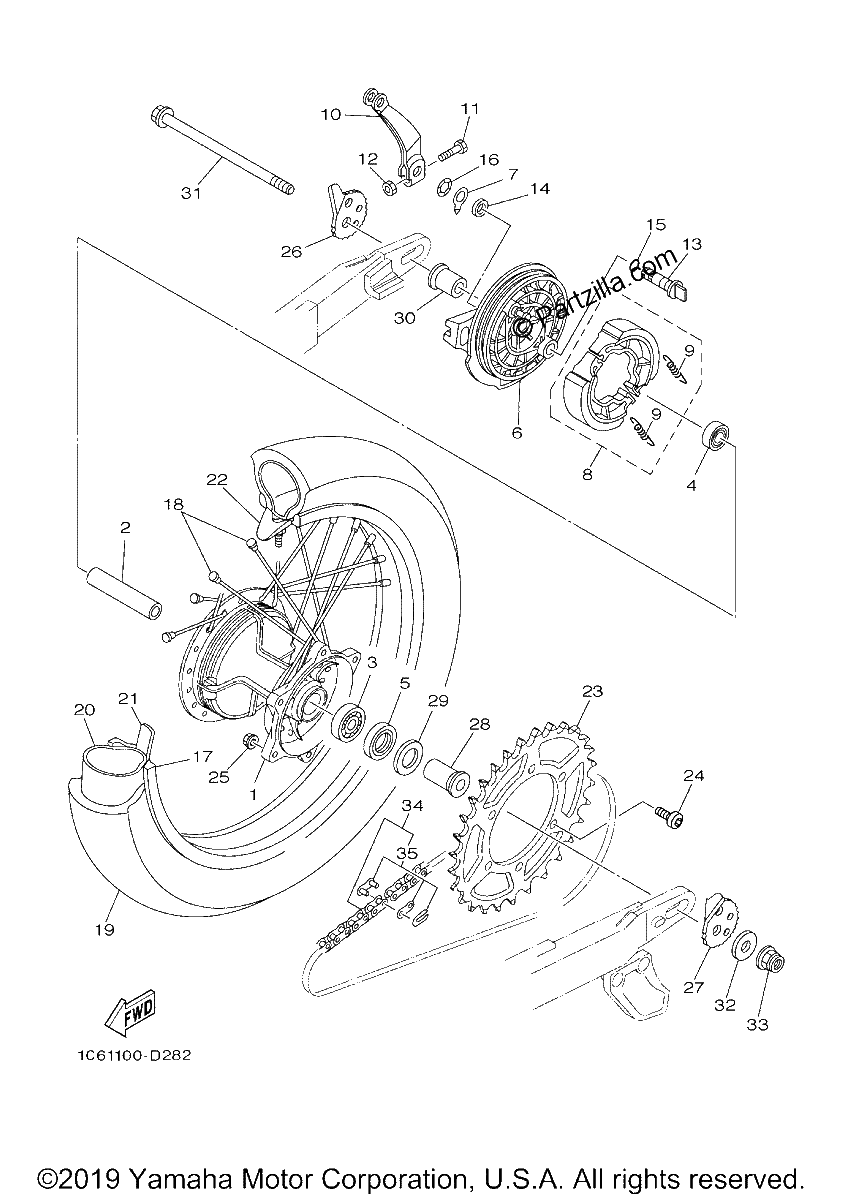

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Hub, Rear
$229.15¢114 575
#2
90560-15313-00 This item has been discontinued and may not be available. Contact us for more information.
$48.70¢24 350
#3
BEARING
$23.85¢11 925
#4
BEARING
$20.31¢10 156
#5
OIL SEAL
$7.99¢3 994
#6
PLATE, brake shoe
$121.88¢60 938
#7
PLATE, INDICATOR
$5.96¢2 981
#8
BRAKE SHOE KIT (replaces 5HH-F5330-00-00)
$28.61¢14 306
#9
SPRING,TENSION
$6.85¢3 425
#10
LEVER, CAMSHAFT
$51.06¢25 531
#11
BOLT
$3.57¢1 787
#12
NUT
$3.21¢1 606
#13
Camshaft
$29.85¢14 925
#14
OIL SEAL
$12.61¢6 306
#15
O-RING
$5.93¢2 963
#16
WASHER, WAVE(4KN)
$7.65¢3 825
#17
RIM (1.85-18)
$440.48¢220 238
#18
SPOKE SET, REAR
$81.50¢40 750
#19
100/100-18 MT230
$612.49¢306 244
#20
TUBE
$76.50¢38 250
#21
BAND, RIM (2.50-18
$6.13¢3 063
#22
SPACER,BEAD
$63.74¢31 869
#23
SPROCKET, DRIVEN ( (replaces 1C6-F5449-22-00)
$55.98¢27 988
#24
bolt
$1.80¢900
#25
NUT, SELF-LOCKING
$8.45¢4 225
#26
PULLER, CHAIN 2
$6.67¢3 338
#27
PULLER, CHAIN 2
$6.67¢3 338
#28
Collar
$25.10¢12 550
#29
COVER, HUB DUST
$1.52¢763
#30
Collar
$18.43¢9 213
#31
AXLE, WHEEL
$37.29¢18 644
#32
WASHER, PLATE
$7.48¢3 738
#33
NUT,SELF-LOCKING
$11.63¢5 813
#34
CHAIN
$171.68¢85 838
#35
JOINT, CHAIN(4BF)
$7.31¢3 656
