INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

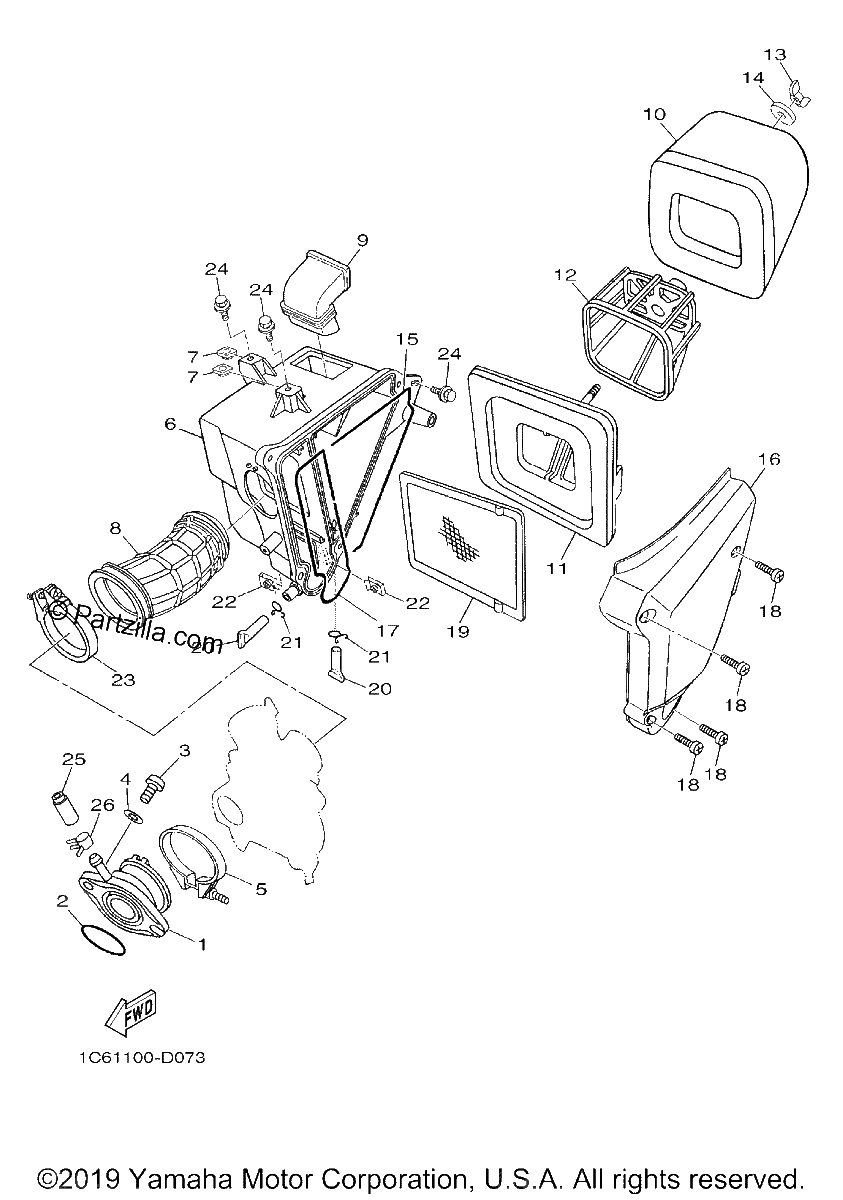

Diagrama de INTAKE

Repuestos

#1
1C6-E3586-00-00
JOINT, carburetor
$36.66¢18 331
1
#2
93210-35537-00
O-RING
$13.94¢6 969
1
#3
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#4
9290M-06600-00
WASHER
$0.29¢144
1
#5
90450-47002-00
HOSE CLAMP ASSY (replaces 90460-46206-00)
$8.53¢4 263
1
#6
1C6-E4411-00-00
Case, Air Cleaner
$68.96¢34 481
1
#7
1B2-E4477-00-00
PLATE
$0.70¢350
1
#8
1C6-E4453-00-00
JOINT, AIR CLEANER
$22.69¢11 344
1
#9
1C6-E4437-00-00
DUCT
$15.76¢7 881
1
#10
1C6-14451-00-00
Element, Air Cleaner
$25.01¢12 506
1
#11
1C6-E4459-00-00
Holder, Guide
$36.42¢18 213
1
#12
1C6-E4458-00-00
Guide
$1.86¢931
1
#13
90175-06008-00
NUT,WING (replaces 90175-06012-00)
$2.23¢1 113
1
#14
90201-06735-00
WASHER, plate
$6.99¢3 494
1
#15
1C6-E4462-00-00
SEAL
$28.19¢14 094
1
#16
1C6-E4412-00-00
CAP, CLEANER CASE
$23.64¢11 819
1
#17
1C6-E4452-00-00
SEAL
$2.44¢1 219
1
#18
98907-06020-00
SCREW,BINDING (replaces 9890M-06020-00)
$7.35¢3 675
1
#19
1C6-E4472-00-00
PLATE, ELEMENT
$9.39¢4 694
1
#20
5HH-E443E-01-00
PIPE, DRAIN
$0.81¢406
1
#21
90467-15012-00
CLIP,SCISSOR
$5.61¢2 806
1
#22
90183-06023-00
NUT,SPRING
$8.85¢4 425
1
#23
90450-49001-00
HOSE CLAMP ASSY (replaces 90460-49293-00)
$14.81¢7 406
1
#24
90119-06242-00
BOLT, WITH WASHER
$6.99¢3 494
1
#25
16G-13569-00-00
PLUG,BLIND
$8.03¢4 013
1
#26
90467-10039-00
CLIP
$7.81¢3 906
1
