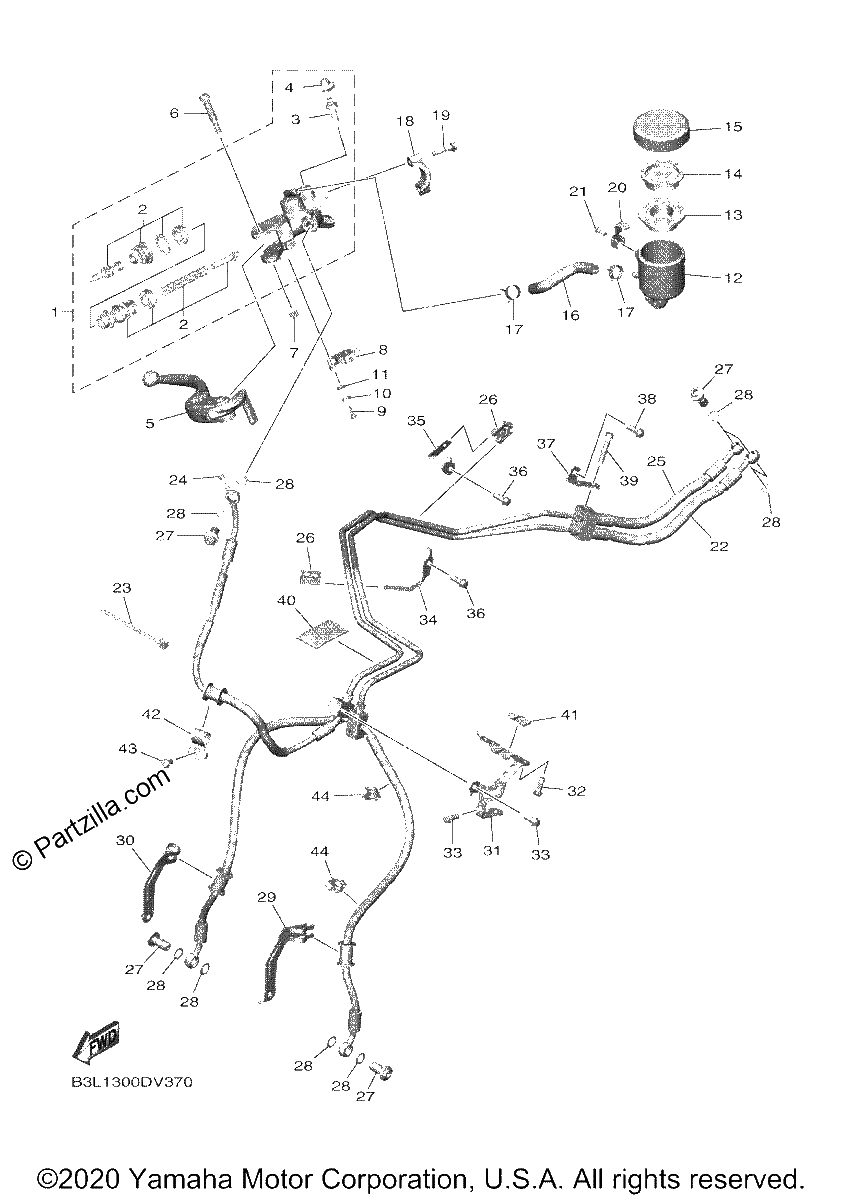

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER SUB ASSY 2
$181.57¢90 788
#2
CYLINDER KIT, MASTER
$58.63¢29 313
#3
BLEED SCREW KIT
$10.14¢5 069
#4
BLEED SCREW KIT
$10.14¢5 069
#5
LEVER 2
$91.72¢45 863
#6
BOLT, LEVER
$7.08¢3 538
#7
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#8
FRONT STOP SWITCH ASSY
$38.52¢19 263
#9
SCREW, PAN HEAD
No Disponible
#10
WASHER, SPRING
$0.74¢369
#11
WASHER, PLATE
$1.20¢600
#12
TANK, RESERVOIR
$18.90¢9 450
#13
DIAPHRAGM, RESERVOIR
$25.31¢12 656
#14
BUSH, DIAPHRAGM
$6.67¢3 338
#15
CAP, RESERVOIR
$30.14¢15 069
#16
HOSE, RESERVOIR
$12.29¢6 144
#17
CLIP
$8.69¢4 344
#18
BRACKET, MASTER CYLINDER
$8.64¢4 319
#19
BOLT
$7.31¢3 656
#20
HOLDER
$15.59¢7 794
#21
SCREW
$7.60¢3 800
#22
BRAKE HOSE ASSY
$253.92¢126 962
#23
BAND
$7.55¢3 775
#24
COLLAR
$7.60¢3 800
#25
HOSE, BRAKE
$351.66¢175 831
#26
CLAMP
$2.75¢1 375
#27
BOLT, UNION
$4.41¢2 206
#28
GASKET
$8.39¢4 194
#29
HOLDER, BRAKE HOSE 1
$14.66¢7 331
#30
HOLDER, BRAKE HOSE 2
$13.73¢6 863
#31
BRACKET
$18.90¢9 450
#32
BOLT, BUTTON HEAD
$7.41¢3 706
#33
BOLT, FLANGE
$0.91¢456
#34
BRACKET 2
$7.39¢3 694
#35
BRACKET 3
$6.40¢3 200
#36
BOLT, FLANGE
$3.96¢1 981
#37
BRACKET 4
$5.55¢2 775
#38
BOLT, FLANGE
$3.96¢1 981
#39
BOLT, FLANGE
$1.68¢838
#40
DAMPER
$7.70¢3 850
#41
DAMPER, LOCATING 1
$1.10¢550
#42
CLAMP
$8.01¢4 006
#43
BOLT, BUTTON HEAD
$7.41¢3 706
#44
Clamp
$7.84¢3 919
