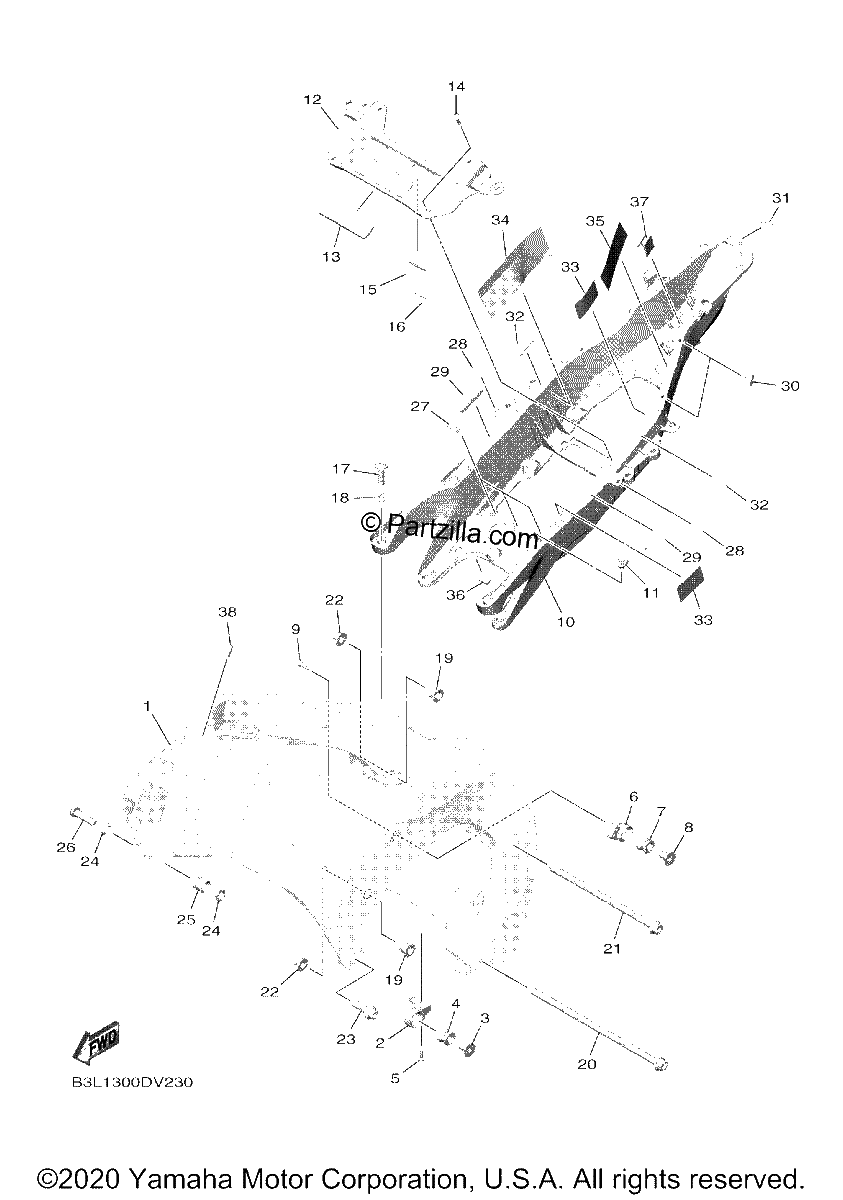

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$3593.74¢1 796 869
#2
BRACKET, MUFFLER 1
$57.80¢28 899
#3
COLLAR
$9.33¢4 663
#4
DAMPER, MUFFLER
$13.48¢6 739
#5
BOLT, HEXAGON SOCKET HEAD
$3.40¢1 702
#6
BRACKET, MUFFLER 2
$21.18¢10 592
#7
DAMPER, MUFFLER
$13.48¢6 739
#8
COLLAR
$9.33¢4 663
#9
BOLT
$5.37¢2 685
#10
REAR FRAME COMP.
$1408.78¢704 392
#11
CAP, DAMPER
$4.05¢2 024
#12
REINF., FRAME REAR
$229.69¢114 845
#13
DAMPER, PLATE
$1.68¢839
#14
BOLT, HEX. SOCKET BUTTON
$1.91¢954
#15
SEAL, 5
$6.66¢3 329
#16
SEAL 6
$3.68¢1 840
#17
SCREW
$9.57¢4 784
#18
COLLAR
$17.39¢8 694
#19
BOLT, ENGINE ADJUSTING
$16.53¢8 263
#20
BOLT, HEXAGON SOCKET HEAD
$31.38¢15 692
#21
BOLT, HEXAGON SOCKET HEAD
$27.47¢13 737
#22
NUT
$5.73¢2 864
#23
BOLT, HEXAGON SOCKET HEAD
$6.30¢3 151
#24
BOSS, ENGINE MOUNT
$21.22¢10 609
#25
BOSS, ENGINE MOUNT
$30.30¢15 151
#26
BOLT, HEX. SOCKET BUTTON
$6.32¢3 162
#27
DAMPER 1
$1.09¢546
#28
SEAL 1
$2.02¢1 012
#29
SEAL 2
$4.57¢2 283
#30
SEAL 3
$2.68¢1 340
#31
SEAL
$6.51¢3 254
#32
SEAL 4
$4.32¢2 162
#33
PATCH 5
$1.78¢891
#34
DAMPER, LOCATING 2
$4.09¢2 047
#35
SEAL
$7.28¢3 640
#36
DAMPER 1
$7.23¢3 617
#37
Clamp
$5.92¢2 961
#38
RIVET,SPEC'L SHAPE
$7.67¢3 835
