HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

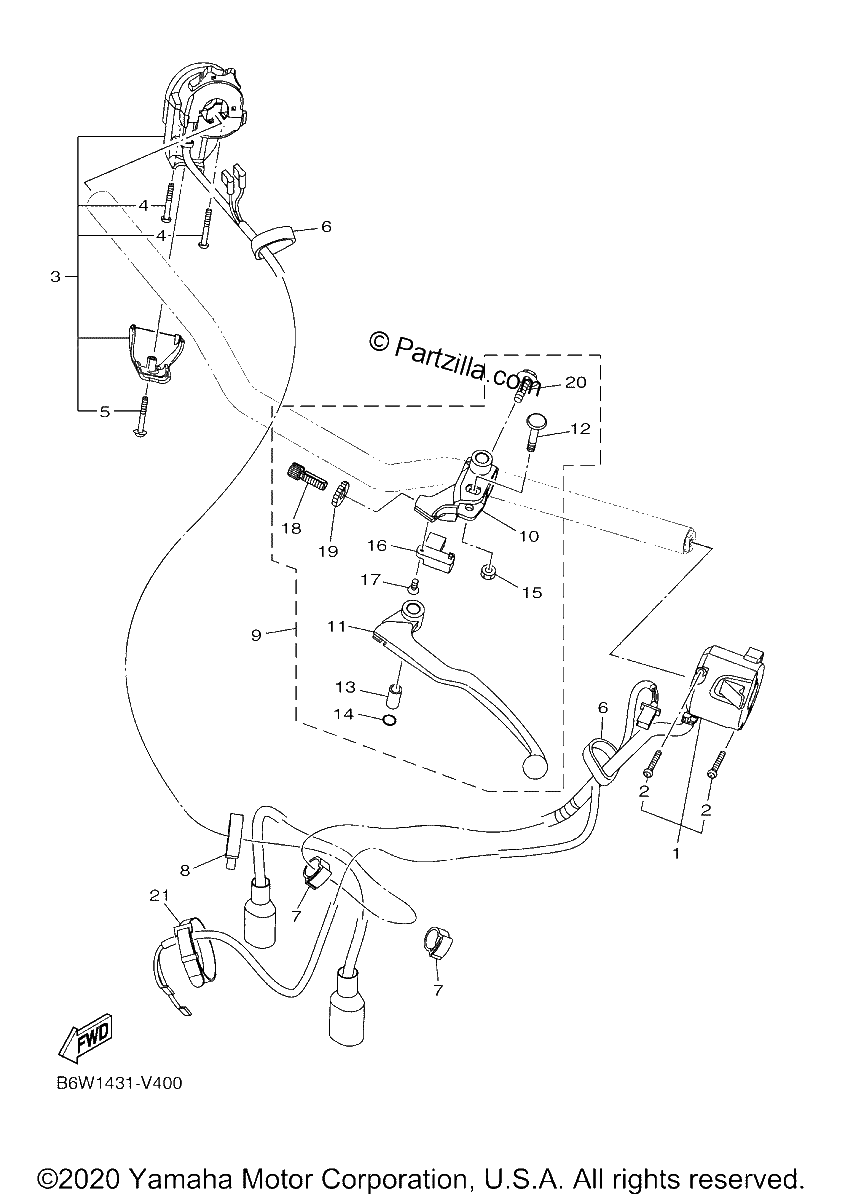

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
B9T-H3972-00-00
SWITCH, HANDLE 4
$119.40¢59 702
1
#2
98517-04025-00
SCREW, PAN HEAD
$3.22¢1 610
1
#3
B9T-H3975-00-00
SWITCH, HANDLE 2
$74.98¢37 490
1
#4
98507-04030-00
SCREW,PAN HEAD
$1.90¢949
1
#5
97607-04230-00
SCREW,WITH WASHER
$2.78¢1 392
1
#6
3RS-H3936-00-00
BAND, SWITCH CORD
$1.03¢518
1
#7
90464-16003-00
CLAMP
$6.87¢3 433
1
#8
90464-30001-00
Clamp
$7.04¢3 519
1
#9
1WD-H2910-00-00
LEVER HOLDER ASSY (LEFT)
$94.83¢47 414
1
#10
1WD-H2911-00-00
HOLDER, LEVER 1
$16.95¢8 476
1
#11
1WD-H3912-00-00
LEVER 1
$12.17¢6 084
1
#12
31A-83945-00-00
BOLT, LEVER
$5.13¢2 565
1
#13
31A-83913-00-00
COLLAR, LEVER 1
$21.34¢10 672
1
#14
93210-10118-00
O-RING
$6.43¢3 214
1
#15
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#16
5BP-H2917-00-00
SWITCH
$15.21¢7 607
1
#17
98707-03008-00
. .SCREW, COUNTERSUNK (replaces 90151-03005-00)
$6.36¢3 180
1
#18
90123-08046-00
BOLT
$10.06¢5 031
1
#19
90179-08148-00
NUT
$4.27¢2 133
1
#20
97507-06525-00
BOLT, WITH WASHER
$1.17¢586
1
#21
3AY-H3936-00-00
BAND SWITCH CORD
$4.52¢2 260
1
