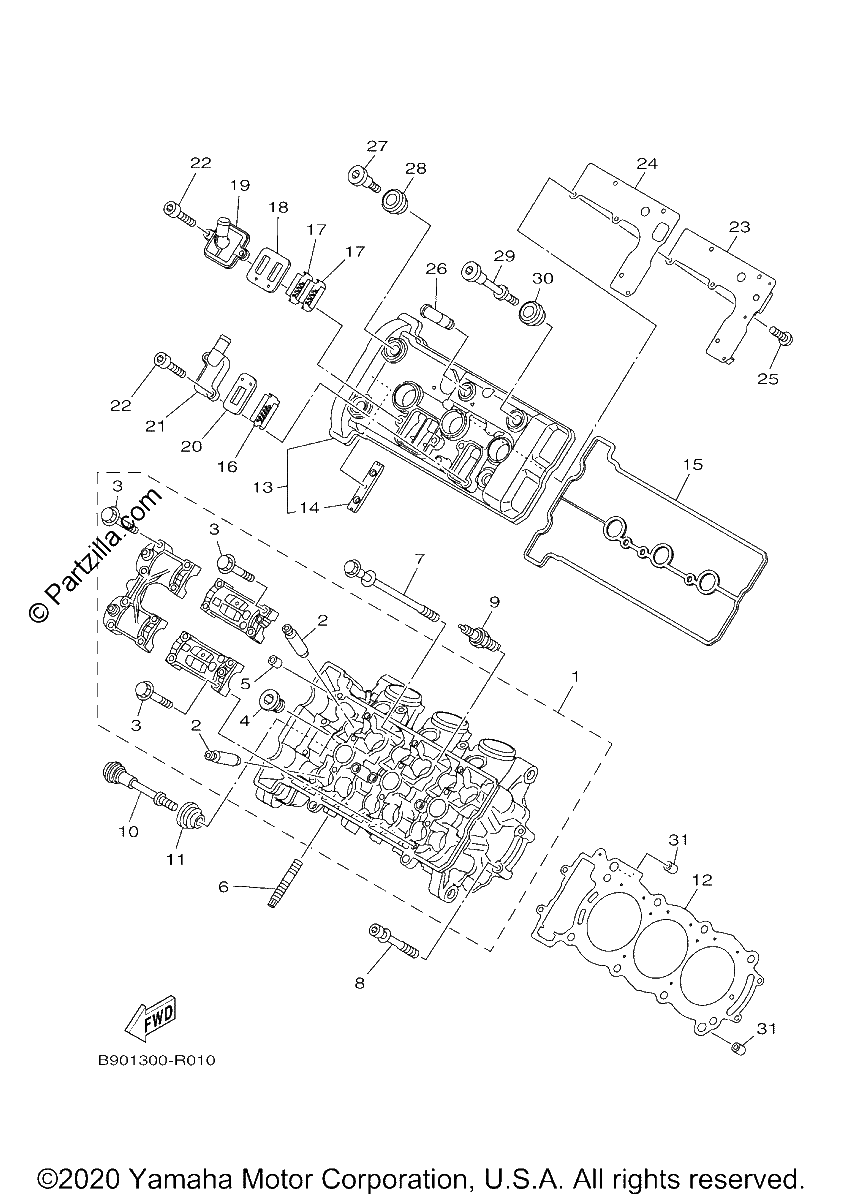

CYLINDER HEAD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CYLINDER HEAD ASSY | FOR RN37Y-000866 AND LATER
$1773.31¢886 656
#2
GUIDE, VALVE 1
$68.74¢34 369
#3
BOLT, FLANGE
$7.67¢3 838
#4
PLUG, STRAIGHT SCREW
$11.19¢5 594
#5
PIN, DOWEL
$6.71¢3 356
#6
BOLT, STUD
$8.97¢4 488
#7
BOLT, WITH WASHER (replaces 90119-09015-00)
$20.38¢10 188
#8
BOLT
$3.49¢1 744
#9
CPR9E-9 NGK SPLUG 10
$10.94¢5 469
#10
BOLT
$15.25¢7 625
#11
RUBBER, MOUNT 1
$12.75¢6 375
#12
GASKET, CYLINDER HEA (replaces B90-11181-00-00)
$95.25¢47 625
#13
COVER, CYLINDER HEAD 1
$281.61¢140 806
#14
GUIDE, STOPPER 2
$30.44¢15 219
#15
GASKET, HEAD COVER 1
$32.34¢16 169
#16
PLATE
$4.60¢2 300
#17
PLATE
$4.65¢2 325
#18
REED VALVE ASSY
$103.06¢51 531
#19
CAP, CASE
$33.19¢16 594
#20
REED VALVE ASSY
$36.74¢18 369
#21
CAP, CASE
$77.54¢38 769
#22
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#23
PLATE, BREATHER (replaces 1RC-11165-00-00)
$27.32¢13 663
#24
GASKET, BREATHER COVER
$6.66¢3 331
#25
SCREW (replaces 90149-05037-00)
$1.79¢894
#26
PIPE, BREATHER 2
$24.51¢12 256
#27
BOLT
$7.60¢3 800
#28
RUBBER, MOUNT 1
$12.75¢6 375
#29
BOLT
$13.89¢6 944
#30
RUBBER, MOUNT 1
$12.75¢6 375
#31
PIN, DOWEL
$4.91¢2 456
