ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

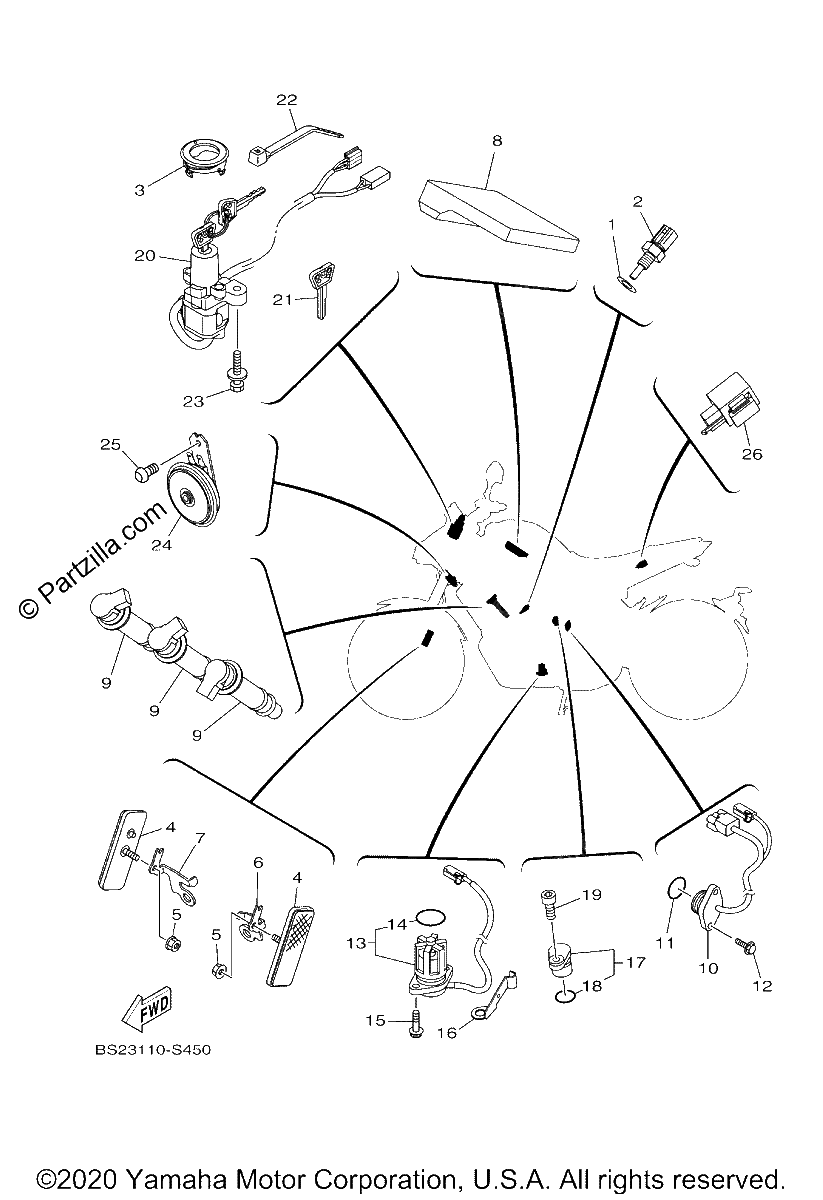

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$34.40¢17 200
1
#3
B90-82552-00-00
CAP, SWITCH
$46.21¢23 106
1
#4
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#5
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#6
1RC-85112-00-00
BRACKET, REFLECTOR 1
$15.66¢7 831
1
#7
1RC-85122-00-00
BRACKET, REFLECTOR 2
$13.43¢6 713
1
#8
BS2-8591A-10-00
ENGINE CONTROL UNIT ASSY
$1433.74¢716 869
1
#9
1RC-82310-00-00
IGNITION COIL ASSY
$136.18¢68 088
1
#10
1RC-82540-00-00
NEUTRAL SWITCH ASSY
$87.94¢43 969
1
#11
93210-21001-00
O-RING
$5.69¢2 844
1
#12
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#13
5S7-85720-00-00
OIL LEVEL GAUGE ASSY
$114.43¢57 213
1
#14
5VY-8A8E0-00-00
O-RING
$13.04¢6 519
1
#15
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#16
90465-08053-00
CLAMP
$6.04¢3 019
1
#17
3P6-15399-00-00
PLUG, BLIND
$21.85¢10 925
1
#18
93210-15566-00
O-RING
$6.88¢3 438
1
#19
91317-06016-00
BOLT
$1.46¢731
1
#20
B90-82501-00-00
MAIN SWITCH STEERING LOCK
$163.60¢81 800
1
#21
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#22
90464-14010-00
CLAMP
$3.83¢1 913
1
#23
90109-08196-00
BOLT
$7.35¢3 675
1
#24
BS2-83371-00-00
HORN (replaces B90-83371-00-00)
$82.21¢41 106
1
#25
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#26
4C8-83350-11-00
FLASHER RELAY ASSY
$86.19¢43 094
1
