ALTERNATE 2 FOR CHASSIS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

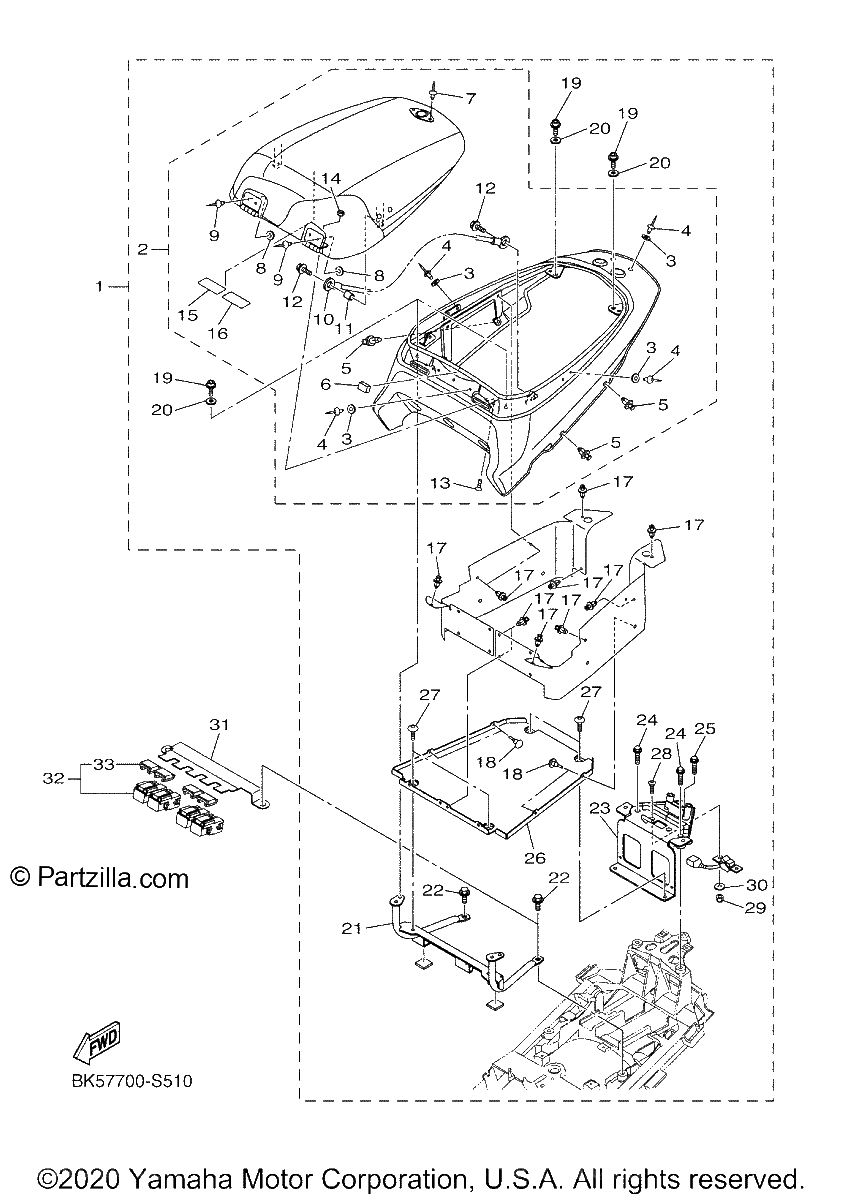

Diagrama de ALTERNATE 2 FOR CHASSIS

Repuestos

#1
5VS-W0754-21-UJ
RADIO BOX ASSY
$5529.19¢2 764 594
1
#2
5P5-24704-10-UJ
. BOX ASSY
$3860.54¢1 930 269
1
#3
92990-04200-00
WASHER, PLAIN
$1.24¢621
1
#4
90267-40153-00
.. RIVET, BLIND
$2.44¢1 219
1
#5
90269-07010-00
RIVET
$4.09¢2 047
1
#6
2C0-2847N-00-00
DAMPER 8
$7.23¢3 617
1
#7
90267-40153-00
.. RIVET, BLIND
$2.44¢1 219
1
#8
92990-04200-00
WASHER, PLAIN
$1.24¢621
1
#9
90267-40153-00
.. RIVET, BLIND
$2.44¢1 219
1
#10
5UY-2473J-01-00
.. WIRE
$11.94¢5 969
1
#11
5P5-2471M-00-00
.. COLLAR
$7.77¢3 887
1
#12
90119-05009-00
.. BOLT, WITH WASHER
$3.83¢1 915
1
#13
90151-04002-00
.. SCREW, COUNTERSUNK
$2.43¢1 213
1
#14
95617-04100-00
NUT, U
$7.84¢3 922
1
#15
3LD-24877-A0-00
.. LABEL, CAUTION
$9.61¢4 807
1
#16
3LD-24877-B1-00
.. LABEL, CAUTION
$9.17¢4 583
1
#17
90269-05005-00
RIVET
$3.29¢1 644
1
#18
90338-07180-00
PLUG
$6.22¢3 111
1
#19
90109-060E9-00
BOLT
$7.72¢3 858
1
#20
90201-06M08-00
WASHER,PLATE (replaces 90201-06050-00)
$2.53¢1 265
1
#21
5P5-24716-00-00
. STAY, REAR
$1023.49¢511 744
1
#22
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#23
5P5-28436-10-00
. BRACKET 2
$832.59¢416 294
1
#24
95022-08035-00
Bolt, Flange
$3.56¢1 783
1
#25
95027-08030-00
BOLT, FLANGE
$3.29¢1 644
1
#26
5P5-2843L-30-00
. Plate
$435.00¢217 499
1
#27
90111-06083-00
BOLT, HEX. SOCKET BUTTON
$7.07¢3 536
1
#28
90151-05055-00
SCREW,COUNTERSUNK (replaces 98702-05016-00)
$7.31¢3 657
1
#29
95617-05100-00
NUT, U
$7.30¢3 651
1
#30
90201-057H5-00
WASHER, PLATE
$3.29¢1 644
1
#31
5P5-2253B-00-00
STAY, RELAY
$88.15¢44 074
1
#32
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#33
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
