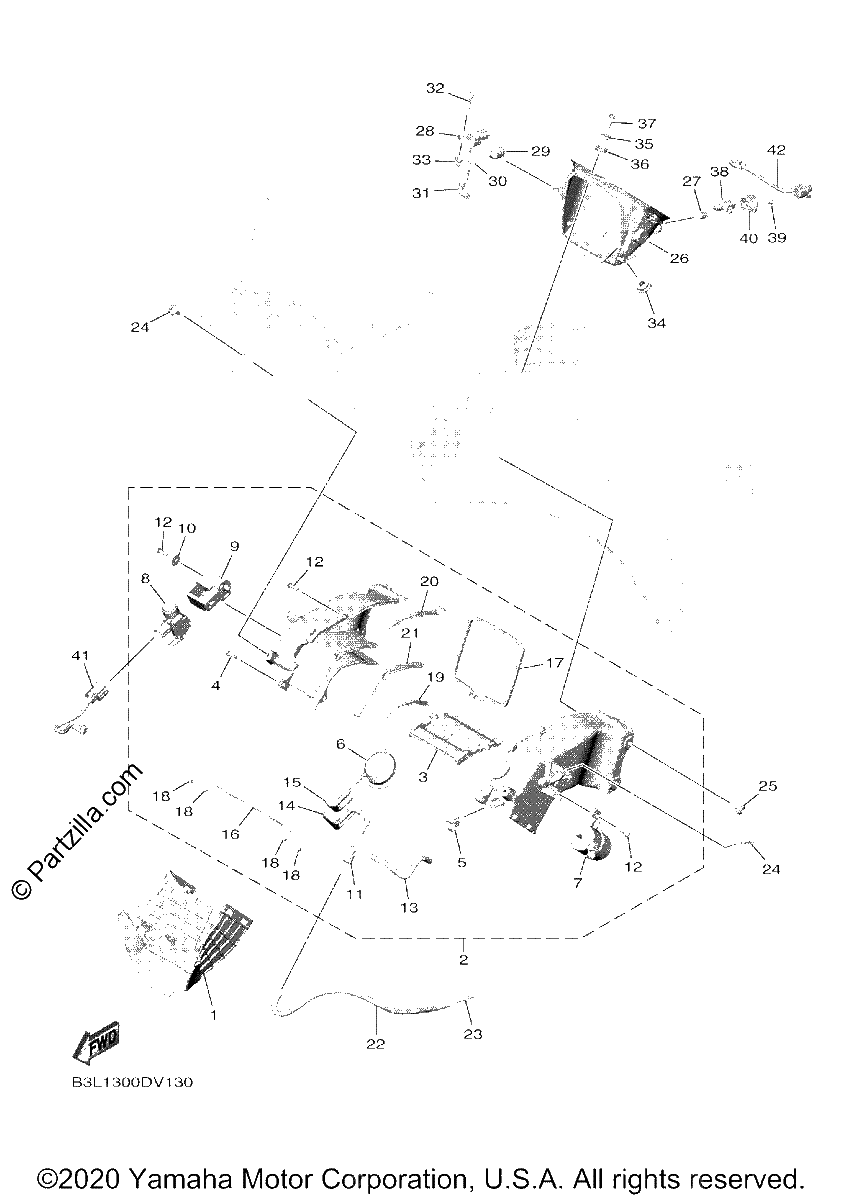

INTAKE 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DUCT 1
$34.44¢17 221
#2
DUCT ASSY
$763.59¢381 794
#3
PLATE, FRONT
$42.34¢21 172
#4
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#5
CLAMP
$1.97¢983
#6
DIAPHRAGM
$94.10¢47 052
#7
TANK, SURGE
$14.54¢7 268
#8
FUEL CUT SOLENOID VALVE
$97.37¢48 685
#9
STAY 2
$15.80¢7 900
#10
WASHER, PLATE
$7.35¢3 674
#11
VALVE, CHECK
$18.54¢9 269
#12
bolt
$5.89¢2 944
#13
HOSE 2
$5.37¢2 685
#14
HOSE 3
$7.04¢3 519
#15
HOSE 4
$5.37¢2 685
#16
GRILL, AIR INTAKE 1
$31.12¢15 559
#17
DAMPER, PLATE
$1.83¢914
#18
DAMPER, PLATE
$0.61¢305
#19
MOLE 1
$7.60¢3 801
#20
MOLE 2
$8.73¢4 364
#21
MOLE 3
$7.11¢3 553
#22
HOSE (L320)
$7.45¢3 726
#23
JOINT
$1.61¢805
#24
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#25
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#26
DUCT 4
$33.66¢16 830
#27
Grommet
$6.15¢3 076
#28
Sensor, Pressure
$187.39¢93 696
#29
DAMPER
$4.11¢2 053
#30
CLIP
$6.75¢3 375
#31
HOSE
$8.13¢4 065
#32
BOLT
$1.36¢678
#33
NUT
$3.71¢1 857
#34
GROMMET
$4.25¢2 128
#35
COLLAR
$6.03¢3 013
#36
GROMMET
$6.36¢3 180
#37
BOLT, FLANGE
$3.65¢1 823
#38
SENSOR, AIR TEMPERATURE
$32.97¢16 485
#39
BOLT, BUTTON HEAD
$2.99¢1 495
#40
HOLDER
$4.32¢2 162
#41
WIRE, SUB LEAD
$18.66¢9 332
#42
WIRE, SUB LEAD
$15.35¢7 676
