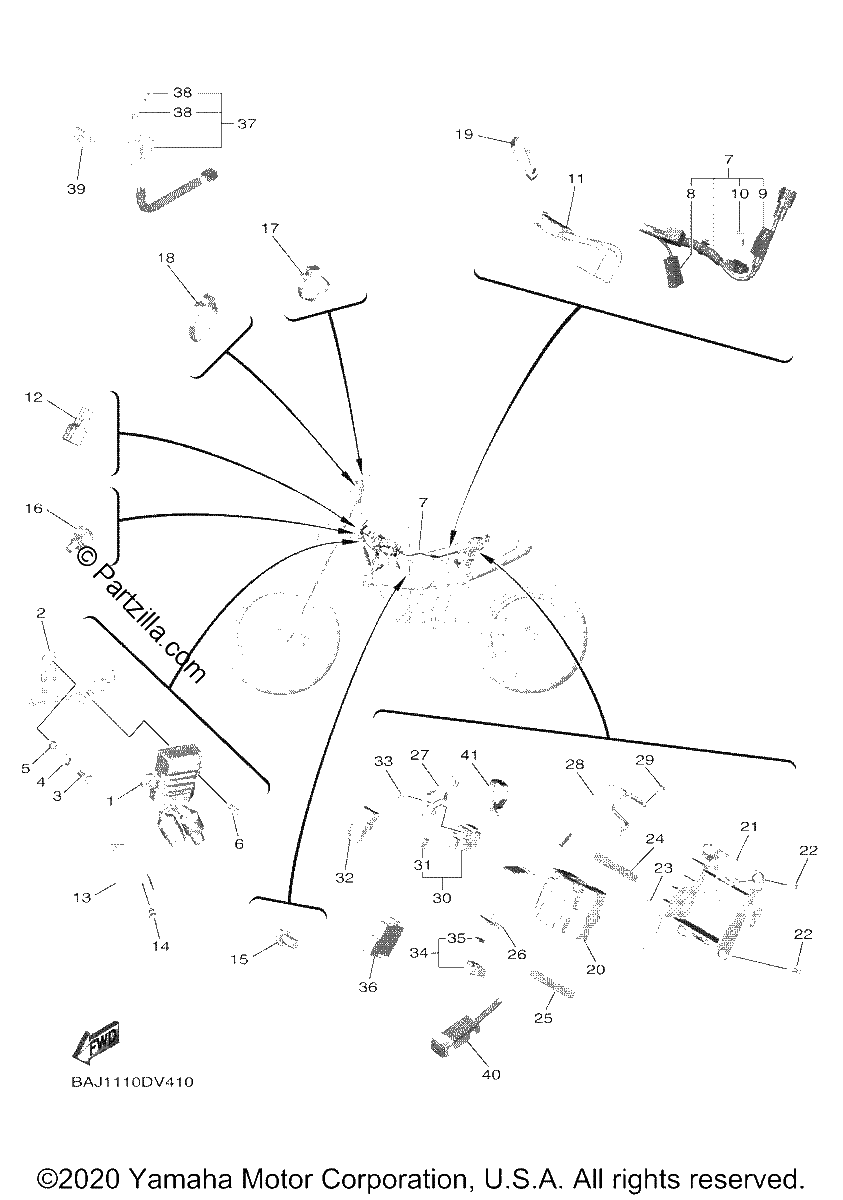

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RECTIFIER & REGULATOR ASSY
$147.90¢73 951
#2
BRACKET, REGULATOR
$13.42¢6 710
#3
Bolt, Flange
$1.99¢995
#4
Grommet
$3.48¢1 742
#5
COLLAR
$8.18¢4 088
#6
Bolt, Flange
$2.92¢1 461
#7
WIRE HARNESS ASSY
$340.05¢170 027
#8
DIODE ASSY
$28.45¢14 225
#9
RECTIFIER 2
$20.65¢10 327
#10
FUSE - 5 A - BLADE (
$6.53¢3 266
#11
WIRE, SUB LEAD
$28.22¢14 110
#12
Connector
$17.01¢8 504
#13
PLATE
$8.96¢4 479
#14
Bolt, Flange
$6.87¢3 433
#15
BOLT, FLANGE DEEP RECESS
$0.84¢420
#16
Clamp
$3.39¢1 696
#17
CLAMP
$7.30¢3 651
#18
CLAMP
$3.04¢1 518
#19
BAND
$4.52¢2 260
#20
BATTERY ASSY (replaces BR9-82100-00-00)
No Disponible
#21
BRACKET, BATTERY
$65.11¢32 556
#22
BOLT, WITH WASHER
$5.16¢2 582
#23
DAMPER
$3.68¢1 840
#24
DAMPER,RADIATOR
$1.68¢839
#25
DAMPER, FOOTREST 2
$1.55¢776
#26
BAND, BATTERY
$11.24¢5 618
#27
WIRE, plus lead
$27.57¢13 783
#28
WIRE, MINUS LEAD
$20.67¢10 333
#29
Bolt, Flange
$2.92¢1 461
#30
STARTER RELAY ASSY (RC19-102B)
$49.59¢24 794
#31
Fuse (15 Amp)
$4.45¢2 225
#32
COVER, LEAD WIRE
$4.45¢2 225
#33
BOLT, FLANGE
$6.87¢3 433
#34
RELAY ASSY (1ST-00)
$16.38¢8 188
#35
HOLDER, RELAY
$8.71¢4 353
#36
COVER 1
$23.94¢11 971
#37
PILOT LIGHT ASSY
$86.05¢43 027
#38
BULB (12V-1.7W)
$7.10¢3 548
#39
BRACKET, INDICATOR LIGHT 1
$14.43¢7 216
#40
RESISTOR ASSY
$54.73¢27 364
#41
CLAMP
$2.55¢1 277
