REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

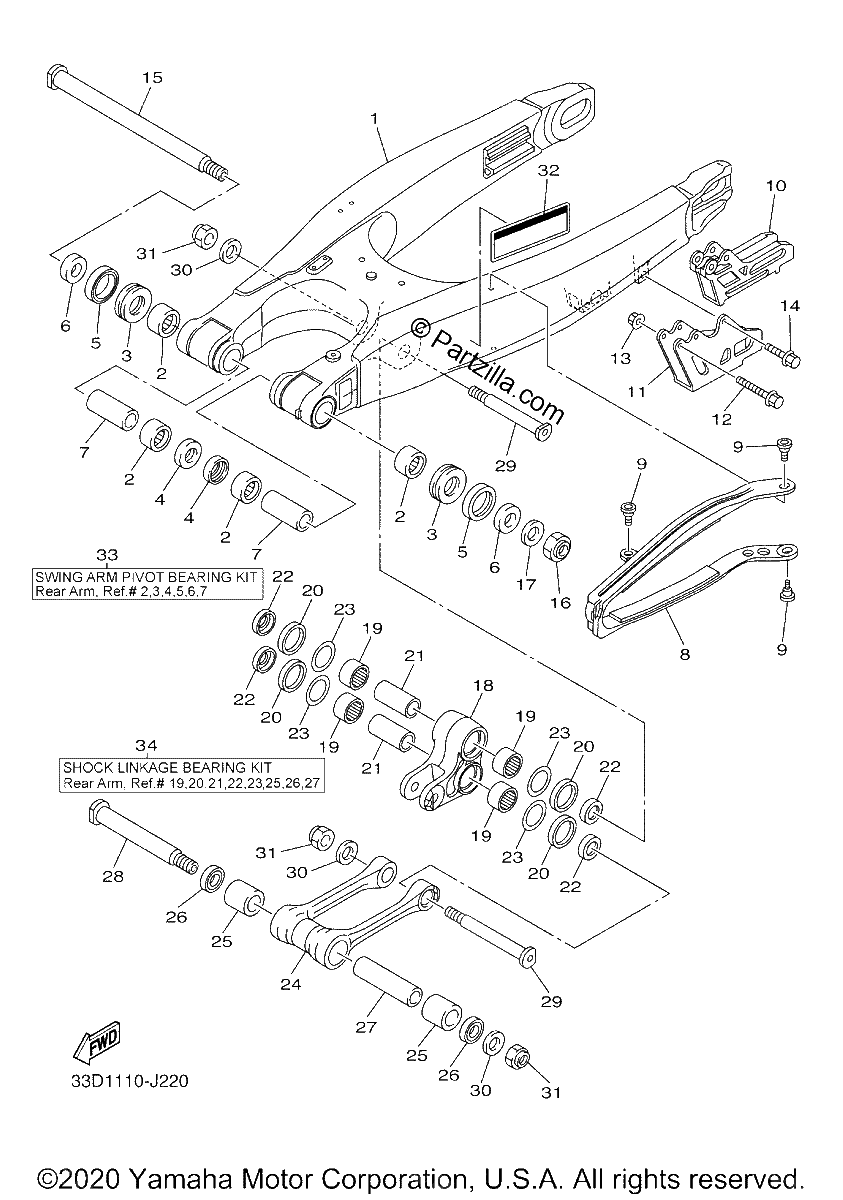

Diagrama de REAR ARM

Repuestos

#1
BR9-22110-00-00
REAR ARM COMP.
$1074.09¢537 044
1
#2
93317-22262-00
BEARING
$37.40¢18 699
1
#3
93342-22217-00
BEARING
$40.01¢20 004
1
#4
93106-22002-00
OIL SEAL
$10.21¢5 106
1
#5
93109-28043-00
OIL SEAL,SDO-TYPE
$10.55¢5 273
1
#6
90387-17019-00
Collar
$10.57¢5 284
1
#7
90387-1714S-00
Collar
$40.74¢20 372
1
#8
34P-22151-01-00
SEAL, GUARD
$59.94¢29 969
1
#9
1C3-22969-90-00
SCREW, 1
$6.30¢3 151
1
#10
2S2-22199-70-00
SUPPORT, CHAIN
$66.11¢33 057
1
#11
2S2-22128-70-00
COVER, THRUST 1
$31.31¢15 657
1
#12
90105-06104-00
Bolt, Flange
$4.38¢2 191
1
#13
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#14
90105-06105-00
Bolt, Flange
$6.92¢3 461
1
#15
33D-22141-00-00
Shaft, Pivot
$68.32¢34 161
1
#16
90185-16002-00
NUT, SELF-LOCKING
$16.56¢8 280
1
#17
90201-16018-00
WASHER, plate
$7.35¢3 674
1
#18
17D-2217A-00-00
ARM, RELAY
$190.20¢95 099
1
#19
93315-32166-00
BEARING
$26.13¢13 064
1
#20
93109-25001-00
O-Ring
$10.87¢5 434
1
#21
90387-16026-00
Collar
$28.27¢14 133
1
#22
90209-16011-00
WASHER
$15.00¢7 498
1
#23
90201-21014-00
WASHER, plate
$6.87¢3 433
1
#24
BR9-2217F-00-00
ROD, CONNECTING 1
$213.55¢106 777
1
#25
93315-32166-00
BEARING
$26.13¢13 064
1
#26
93109-21001-00
O-Ring
$10.48¢5 238
1
#27
90387-14016-00
Collar
$30.16¢15 082
1
#28
5XC-22121-91-00
SHAFT 1
$39.51¢19 757
1
#29
34P-22122-00-00
Shaft 2
$23.13¢11 563
1
#30
90201-14020-00
WASHER, plate
$5.84¢2 921
1
#31
90185-14010-00
NUT, SELF-LOCKING
$12.94¢6 469
1
#32
3RV-21668-A0-00
LABEL, TIRE
$4.02¢2 012
1
#33
BR9-W002C-00-00
SWING ARM PIVOT BEARING KIT
$147.19¢73 594
1
#34
33D-W002E-00-00
SHOCK LINKAGE BEARING KIT
$192.25¢96 123
1
