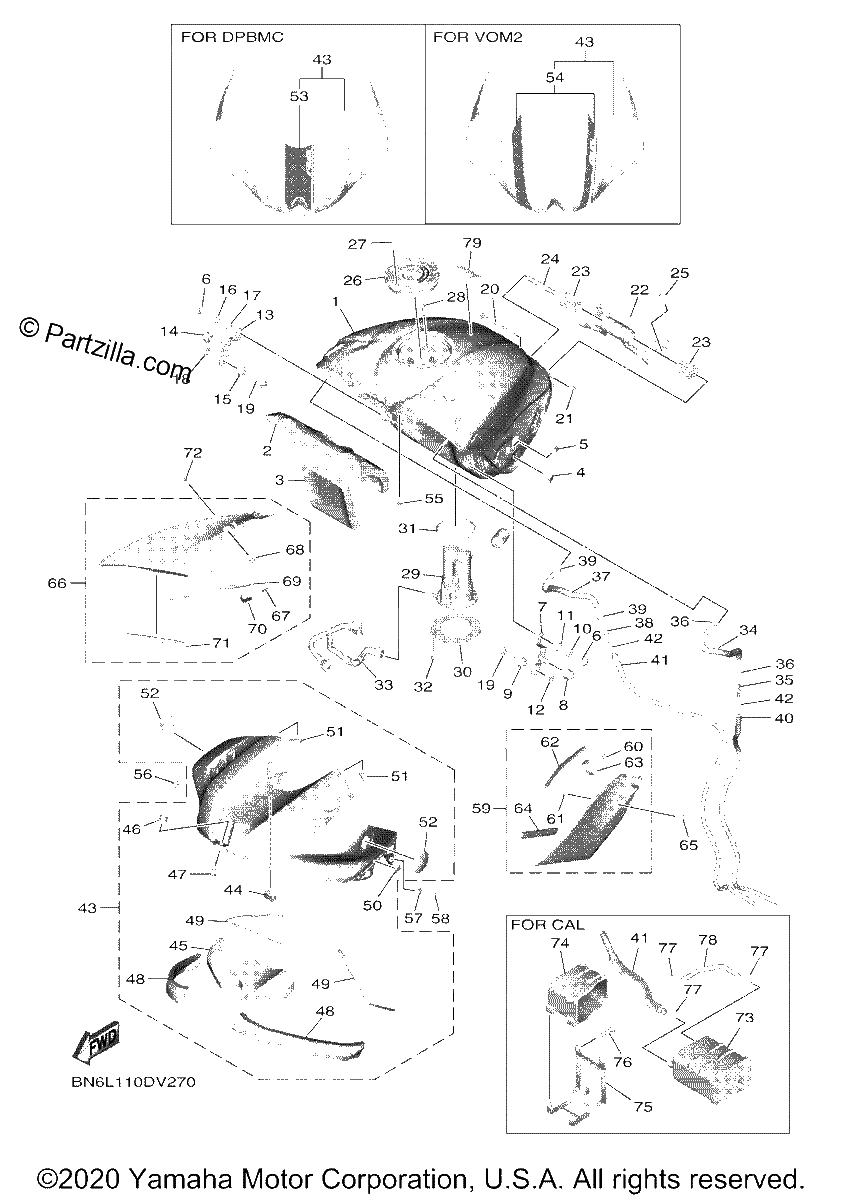

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$1344.34¢672 169
#1
FUEL TANK COMP. (replaces BN6-YK241-00-P1)
$1500.74¢750 369
#1
FUEL TANK COMP.
$2049.29¢1 024 644
#2
DAMPER, PLATE 2
$10.80¢5 399
#3
DAMPER, PLATE
$2.60¢1 299
#4
DAMPER, LOCATING 2
$6.51¢3 254
#5
DAMPER, SIDE COVER
$7.04¢3 519
#6
BOLT,HEX. SOCKET BUTTON
$5.23¢2 616
#7
BRACKET, FUEL TANK 1
$26.25¢13 127
#8
DAMPER, LOCATING 1
$7.04¢3 519
#9
Grommet
$2.86¢1 432
#10
COLLAR
$6.87¢3 433
#11
DAMPER, LOCATING 3
$9.63¢4 813
#12
COLLAR
$7.65¢3 824
#13
BRACKET, FUEL TANK 1
$26.25¢13 127
#14
DAMPER, LOCATING 1
$7.04¢3 519
#15
Grommet
$2.86¢1 432
#16
COLLAR
$6.87¢3 433
#17
DAMPER, LOCATING 3
$9.63¢4 813
#18
COLLAR
$7.65¢3 824
#19
BOLT, WITH WASHER
$6.88¢3 439
#20
BOLT, FLANGE
$3.13¢1 564
#21
NUT, FLANGE
$2.24¢1 121
#22
BRACKET, TANK FITTING
$61.77¢30 883
#23
DAMPER, LOCATING 3
$7.04¢3 519
#24
COLLAR
$4.77¢2 386
#25
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#26
CAP ASSY
$248.96¢124 482
#27
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#28
BOLT
$5.39¢2 697
#29
FUEL PUMP COMP.
$384.51¢192 257
#30
BRACKET, FUEL PUMP
$22.59¢11 293
#31
O-RING
$26.89¢13 443
#32
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
#33
PIPE, FUEL 1
$377.00¢188 502
#34
PIPE 3
$13.47¢6 733
#35
JOINT
$6.51¢3 254
#36
Clip
$2.74¢1 368
#37
PIPE 3
$16.03¢8 015
#38
JOINT
$6.51¢3 254
#39
Clip
$2.74¢1 368
#40
PIPE 4
$13.47¢6 733
#41
PIPE 7
$15.29¢7 648
#41
PIPE 7
$5.42¢2 708
#42
Clip
$2.74¢1 368
#43
COVER, TOP (FUEL TANK)
$190.73¢95 364
#43
COVER, TOP (FUEL TANK)
$235.44¢117 720
#43
COVER, TOP (FUEL TANK)
$240.09¢120 043
#44
DAMPER, PLATE
$1.45¢724
#45
Damper
$5.65¢2 823
#46
GROMMET
$6.83¢3 415
#47
COLLAR
$7.64¢3 818
#48
DAMPER, PLATE 4
$6.99¢3 496
#49
DAMPER, PLATE 1
$6.99¢3 496
#50
SEAL
$6.51¢3 254
#51
DAMPER, PLATE
$1.52¢759
#52
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
#53
GRAPHIC, FUEL TANK 1
$20.15¢10 074
#54
GRAPHIC SET 1
$63.72¢31 861
#55
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#56
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#57
COLLAR
$5.82¢2 909
#58
bolt
$0.63¢316
#59
TANK SIDE COVER ASSY 1
$50.45¢25 225
#60
SEAL
$6.51¢3 254
#61
COLLAR
$5.51¢2 754
#62
SEAL 3
$1.66¢828
#63
MOLE
$1.28¢638
#64
DAMPER, PLATE
$0.99¢494
#65
BOLT, HEX. SOCKET BUTTON
$1.15¢575
#66
TANK SIDE COVER ASSY 2
$50.45¢25 225
#67
SEAL
$6.51¢3 254
#68
COLLAR
$5.51¢2 754
#69
SEAL 3
$1.66¢828
#70
MOLE
$1.28¢638
#71
DAMPER, PLATE
$0.99¢494
#72
BOLT, HEX. SOCKET BUTTON
$1.15¢575
#73
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
#74
DAMPER, LOCATING 2 | FOR CALIFORNIA
$32.46¢16 232
#75
BRACKET, CANISTOR
$25.82¢12 909
#76
BOLT
$6.75¢3 375
#77
Clip
$2.74¢1 368
#78
HOSE
$5.61¢2 806
#79
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
